Arm

Spindle Position 2-3/4" From Face of Jamb to C of Spindle L Door Jamb Centerline of Door and Spindle H117-3/4 Pivot Set LEVEL IN BOTH DIRECTIONS DOOR Finished Floor All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.

A. Measure 2-3/4" out from door jamb on centerline of door. This is the location of the spindle center.

A. For floor plate application: Cement case is set 1/8" (3.2mm) below floor level.
B. For threshold application: Cement case is set flush with floor.
C. Set cement case in floor and block in position.
D. Case should be parallel with center line of door.
E. CEMENT CASE SHOULD BE LEVEL. Place levels per Ill.
F. Grout in cement case with closer. Cement should not get between closer and case.

A. Install top pivot in door per template.
B. Install top pivot in jamb per template.
C. Centerline of pivot pin should line up with centerline of spindle. Use plumb line to assure accuracy.
D. Mortise door for arm.
E. Install arm in bottom of door.

CAUTION:DO NOT FORCE VALVES DOWN.

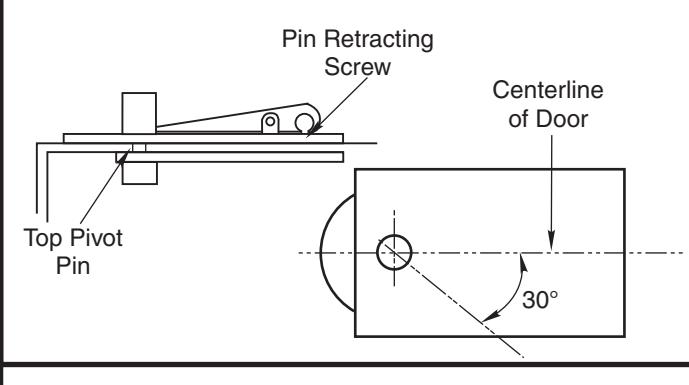

A. Retract top pivot pin by turning retracting pin screw counterclockwise. (see illustration)
B. Turn spindle to 30° open position. (see illustration)
C. Slide door on spindle. DO NOT ATTEMPT TO CLOSE DOOR. Attach arm cap but do not tighten.
D. Line up two portions of top pivot and turn pin retracting screw clockwise.
E. Tighten arm end block screws.
F. Open door to 60° or more and open screw valve by turning screw counterclockwise. Door will then close.

Spindle

Spindle Collar

Arm Block

Thrust Bearing

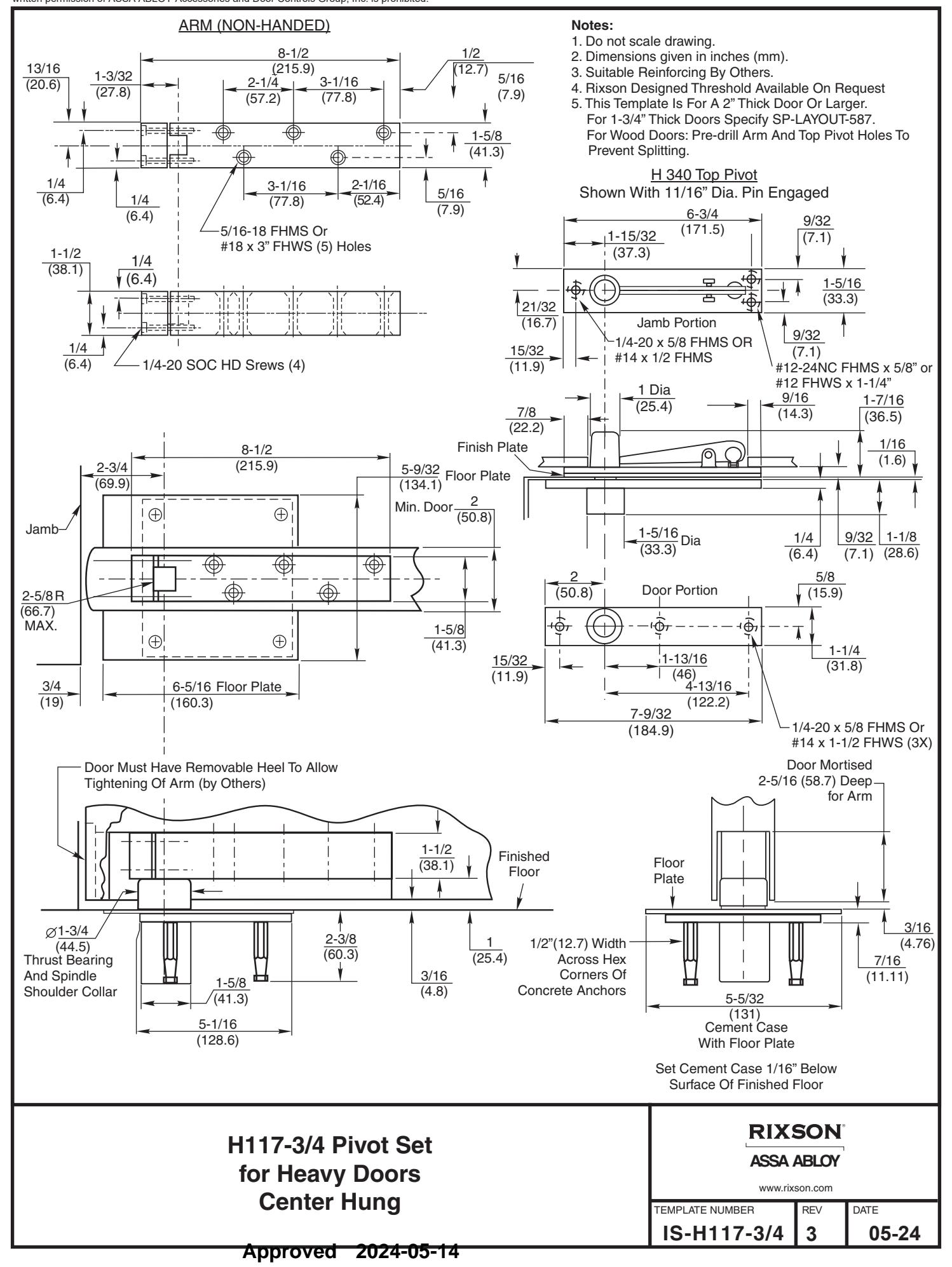

H117-3/4 Pivot Set for Heavy Doors Center Hung

ASSA ABLOY RIXSON ®

www.rixson.com

TEMPLATE NUMBER DATE

07-09

IS-H117-3/4

Approved 2024-05-14

Finished Floor
