Norton Rixson FM 999M Door Release Installation Instructions_DR100280
Open the original PDF document
View PDF

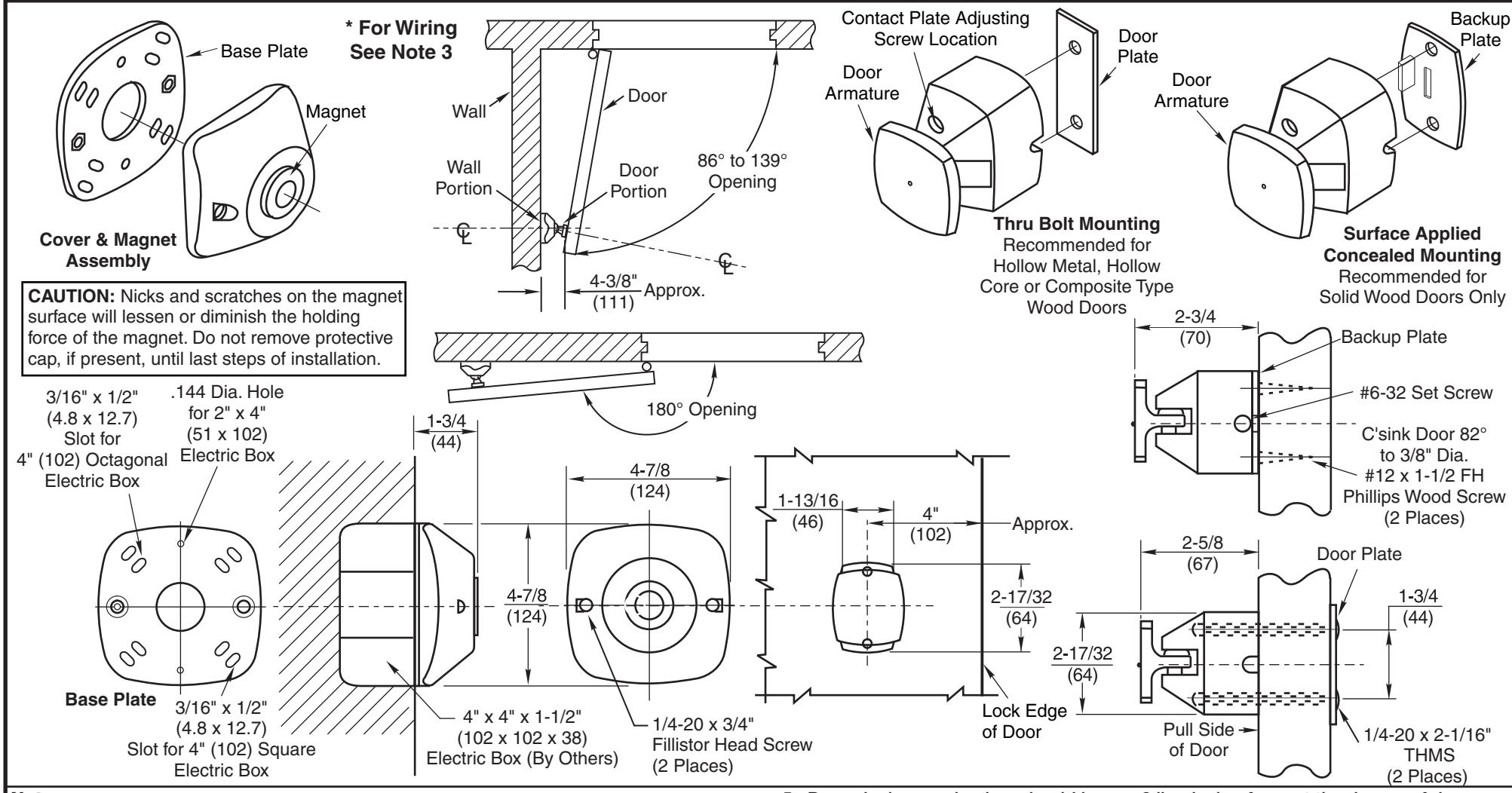

Notes:
- 1. Do not scale drawing.
- 2. Total projection 4-3/8" (111mm). (Includes electromagnet and armature assembly.)
- 3. Non-tri voltage magnets have two non-polarized wires to be connected. Tri voltage magnets are connected using a terminal strip on back of magnet. One wire in common and one wire in the appropriate voltage terminal (non-polarized).
- 4. See step 1 of sheet 2 for Electric Box location. Anchor Electric Box to withstand a minimum 50 lb. pull. Electric Box shown installed in a vertical position.
- 5. Door closing mechanism should have a 3 lb. closing force at the degree of door opening where door armature and electromagnet engage.
- 6. Door hardware must not project more than 4" (102mm) on pull side of door.
- 7. Mounting of Electric Box should be reinforced to withstand shock of door opening. Failure to do so will cause box anchors to work loose.
- 8. All dimensions given in inches (mm).
- 9. See sheet 2 for more details.
999M Door Release
TEMPLATE NUMBER DR100280|1 of 2
ASSA ABLOY
RIXSON
3 101/22

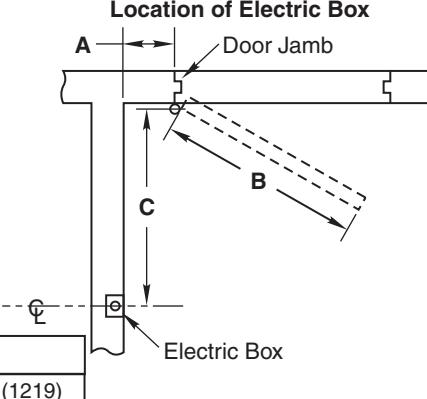

- 1. Use table to locate Electric Box.
-
2. Determine door width (Dim "B"). Measure pivot centerline to wall (Dim.
- "A"). Find dimension "C" in table.
Example: Pivot centerline to wall ("A") = 10" (254mm)
Door Width ("B") = 36" (914mm)
Electric Box Centerline ("C") = 31-3/4" (806mm)
3. If "A" or "B" falls between the numbers listed in table, allow for difference.
Example: Pivot centerline to wall ("A") = 7" (178mm)
Door Width ("B") = 36" (914mm)
Electric Box Centerline ("C") = 32-3/8" (822mm)
- 4. If dimensions "A" and "B" intersect in shaded area of table DO NOT INSTALL ELECTRIC BOX. The degree of door opening will not permit proper alignment between armature and wall magnet.
- 5. Height to be determined by others. Suggested height is 2' to 4' (610mm to 1219mm) from floor and/or not over 6' (1829mm).
- 6. Check degree of door opening in table and coordinate with door closers and other door hardware.
| Door Width "B" | Electric Box | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dim. |
28" (711)
30" (762) |
32" (813) | 34" (864) | 36" (914) | 38" (965) | 40" (1016) | 42" (1067) | 44" (1118) | 46" (1168) | 48" (1219) | |||||||||||||
| "A" | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | |
|
2"
(51) |
24-3/4
(629) |
86° |
26-3/4
(679) |
87° |
28-3/4
(730) |
87° |
30-3/4
(781) |
87° |
32-3/4
(832) |
88° |
34-3/4
(883) |
88° |
36-3/4
(933) |
88° |
38-3/4
(984) |
88° |
40-3/4
(1035) |
88° |
42-3/4
(1086) |
88° |
44-3/4
(1137) |
88° |
"A" – Pivot Centerline to Wall
"B" – Door Width |
|
4"
(102) |
24-3/4
(629) |
91° |
26-3/4
(679) |
91° |
28-3/4
(730) |
91° |
30-3/4
(781) |
91° |
32-3/4
(832) |
91° |
34-3/4
(883) |
91° |
36-3/4
(933) |
91° |
38-3/4
(984) |
91° |
40-3/4
(1035) |
91° |
42-3/4
(1086) |
91° |
44-3/4
(1137) |
91° |
"C" – Pivot Centerline to
Electric Box Centerline |
|
6"
(152) |
24-1/2
(622) |
95° |
26-1/2
(673) |
95° |
28-1/2
(724) |
95° |
30-1/2
(775) |
95° |
32-1/2
(826) |
94° |
34-1/2
(876) |
94° |
36-1/2
(927) |
93° |
38-1/2
(978) |
93° |
40-1/2
(1029) |
93° |
42-1/2
(1080) |
93° |
44-1/2
(1130) |
93° | |
|
8"
(203) |
24"
(610) |
100° |
26-1/4
(667) |
99° |
28-1/4
(718) |
99° |
30-1/4
(768) |
98° |
32-1/4
(819) |
98° |
34-1/4
(870) |
98° |
36-1/4
(921) |
97° |
38-1/4
(972) |
96° |
40-1/4
(1022) |
96° |
42-1/4
(1073) |
96° |
44-1/2
(1130) |
96° | |
|
10"
(254) |
23-1/2
(597) |
105° |
25-3/4
(654) |
104° |
27-3/4
(705) |
103° |
29-3/4
(756) |
102° |
31-3/4
(806) |
101° |
34"
(864) |
101° |
36"
(914) |
100° |
38"
(965) |
100° |
40"
(1016) |
99° |
42"
(1067) |
99° |
44-1/4
(1124) |
99° | |
|
12"
(305) |
22-3/4
(578) |
110° |
25"
(635) |
108° |
27"
(686) |
107° |
29-1/4
(743) |
106° |
31-1/4
(794) |
105° |
33-1/2
(851) |
104° |
35-1/2
(902) |
103° |
37-1/2
(953) |
103° |
39-1/2
(1003) |
102° |
41-3/4
(1060) |
101° |
43-3/4
(1111) |
101° | |
|
14"
(356) |
22"
(559) |
115° |
24"
(610) |
113° |
26-1/4
(667) |
112° |
28-1/2
(724) |
110° |
30-1/2
(775) |
109° |
32-3/4
(832) |
108° |
34-3/4
(883) |
106° |
37"
(940) |
106° |
39"
(991) |
105° |
41"
(1041) |
104° |
43-1/4
(1099) |
103° | |
|
16"
(406) |
20-3/4
(527) |
121° |
23"
(584) |
118° |
25-1/4
(641) |
115° |
27-1/2
(699) |
114° |
29-3/4
(756) |
113° |
32"
(813) |
111° |
34"
(864) |
110° |
36-1/4
(921) |
108° |
38-1/2
(978) |
108° |
40-1/2
(1029) |
106° |
42-3/4
(1086) |
106° | |
|
18"
(457) |
19-1/4
(489) |
127° |
21-3/4
(552) |
124° |
24-1/4
(616) |
121° |
26-1/2
(673) |
118° |
28-3/4
(730) |
117° |
31"
(787) |
115° |
33-1/4
(845) |
113° |
35-1/2
(902) |
112° |
37-3/4
(959) |
111° |
39-3/4
(1010) |
109° |
42"
(1068) |
109° | |
|
20"
(508) |
17-1/4
(438) |
133° |
20"
(508) |
130° |
22-3/4
(578) |
126° |
25-1/4
(641) |
123° |
27-1/2
(699) |
121° |
30"
(762) |
119° |
32-1/4
(819) |
117° |
34-1/2
(876) |
115° |
36-3/4
(933) |
114° |
39"
(991) |
112° |
41-1/4
(1048) |
112° | |
|
22"
(559) |
18"
(457) |
135° |
21"
(533) |
132° |
23-3/4
(603) |
128° |
26-1/4
(667) |
125° |
28-3/4
(730) |
123° |
31"
(787) |
121° |
33-1/2
(851) |
119° |
35-3/4
(908) |
118° |
38"
(965) |
115° |
40-1/4
(1022) |
115° | |||
|
24"
(610) |
21-3/4
(552) |
134° |
24-1/2
(622) |
130° |
27-1/4
(692) |
127° |
29-3/4
(756) |
125° |
32-1/4
(819) |
123° |
34-1/2
(876) |
121° |
36-3/4
(933) |
118° |
39-1/4
(997) |
118° | |||||||
|
26"
(660) |
19-1/2
(495) |
139° |
22-3/4
(578) |
135° |
25-1/2
(648) |
132° |
28"
(711) |
129° |
30-3/4
(781) |
126° |
33-1/4
(845) |
124° |
35-1/2
(902) |
122° |
38"
(965) |
121° | |||||||
|
28"
(711) |
23-1/2
(597) |
137° |
26-1/4
(667) |
133° |
29"
(737) |
130° |
31-3/4
(806) |
128° |
34-1/4
(870) |
125° |
36-3/4
(933) |
124° | |||||||||||
|
30"
(762) |
24"
(610) |
137° |
27"
(686) |
135° |
30"
(762) |
132° |
32-1/2
(826) |
129° |
35-1/4
(895) |
127° | Dimensions given in inches (mm). | ||||||||||||
|
32"
(813) |
25"
(635) |
139° |
28"
(711) |
136° |
30-3/4
(781) |
132° |
33-1/2
(851) |
131° | |||||||||||||||
999M Door Release Location Sheet
NORTON RIXSON
DR100280 TEMPLATE NUMBER REV
SHEET 2 of 2
3 DATE 01/22
Approved 2022-06-09
