Norton Rixson FL147 Pivot Set, 1-3, 4 Lead Lined Fire Door, Lead in Center of Door, 3, 4 Offset, Handed Instal…_IS-FL147

Open the original PDF document

View PDF

Notes:

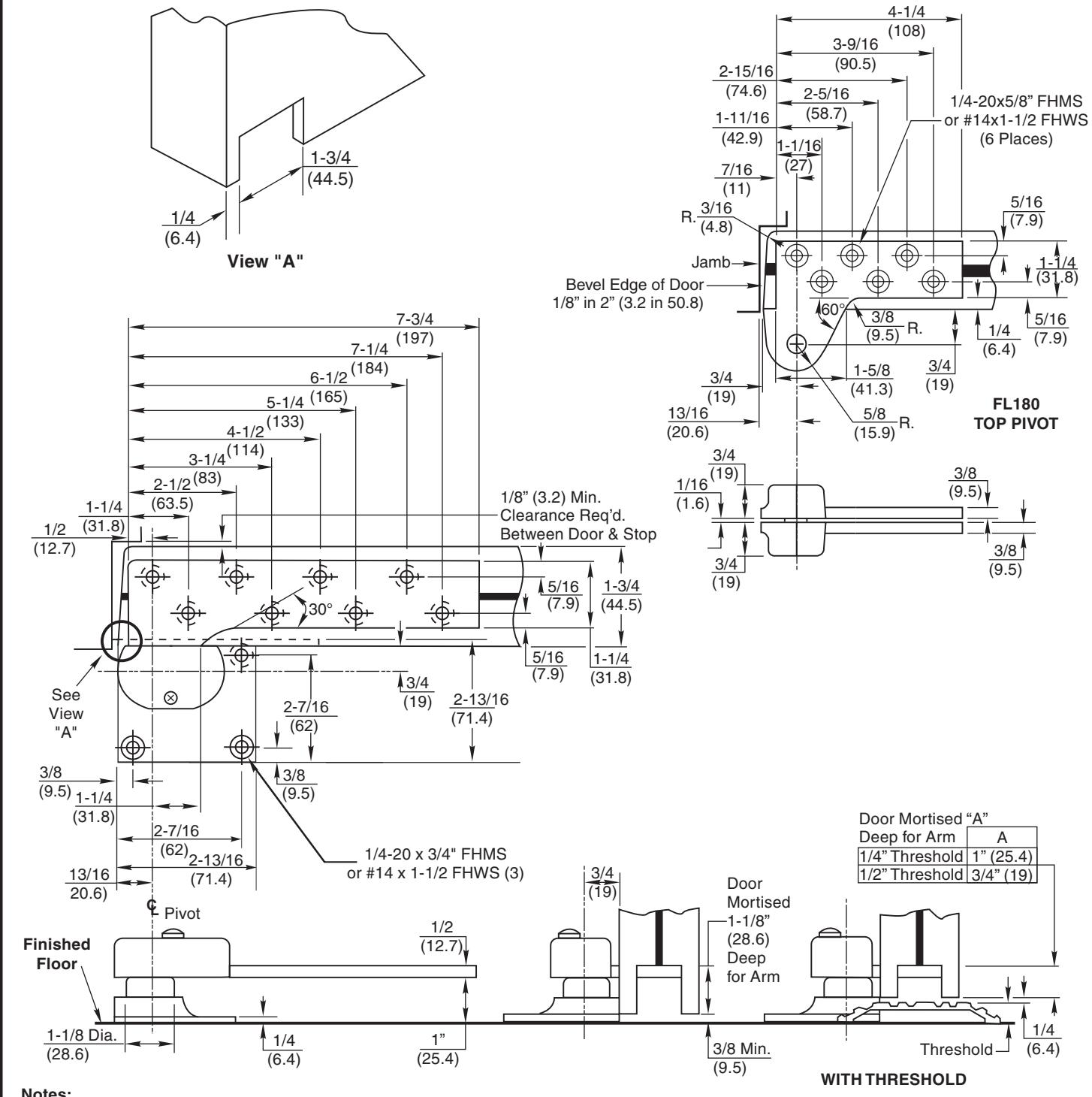

  • 1. Do not scale drawing.
  • 2. Right hand shown.
  • 3. Suitable reinforcing by others.
  • Leadlining by others.
  • Maximum weight limitation is 650 lbs.
  • Maximum degree of opening is 165° trim permitting.
  • FML 19 intermediate pivot must be used as required by codes.
  • 8. All dimensions are in inches (mm).

  • 9. Arm & Top Pivot drilled to receive 1/4-20 x 1" FHMS or #14 x 2" FHWS.
  • 10. For Wood Doors: pre-drill Arm & Top Pivot holes to prevent splitting.
  • 11. If vertical adjustment is required two 1/16" shims are provided. Place shims between arm and spindle shoulder collar.
  • 12. This pivot set is to be used for 1-3/4 (44.5) thick doors with lead placed in center of door. Maximum lead thickness is 9/32 (7.1).

FL147 Pivot Set for 1-3/4" Lead Lined Fire Door Lead in Center of Door 3/4" Offset, Handed

RIXSON ASSA ABLOY

www.rixson.com

REV

3

TEMPI ATE NUMBER IS-FL147

05-24

DATE

FL147 Pivot Set

2 Pivot Stud Level in Both Directions Floor Portion

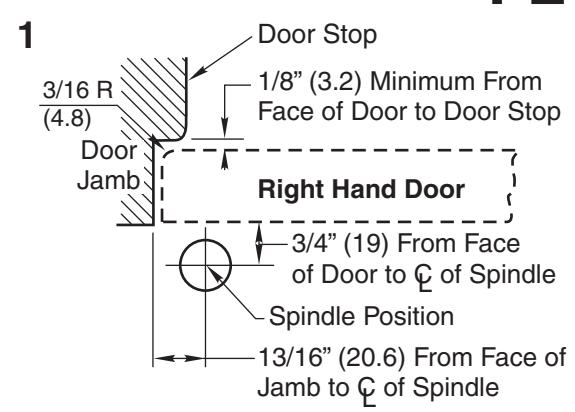

1. Install Pivot

  • A. Measure 13/16" (20.6) out from door jamb.
  • B. Allow 1/8" (3.2) min. clearance from door stop to door face. Measure door thickness. Add 3/4" (19).
  • C. Where lines meet determines center line of closer.

2. Set Pivot Set

  • A. Prepare floor to receive floor portion. SET ANCHORS PROVIDED SECURELY IN FLOOR.
  • B. Floor portion must be level. Level in both directions per illustration. Important:
  • C. Floor portion should be parallel with center line of door.
  • D. Insert pivot stud in floor portion.

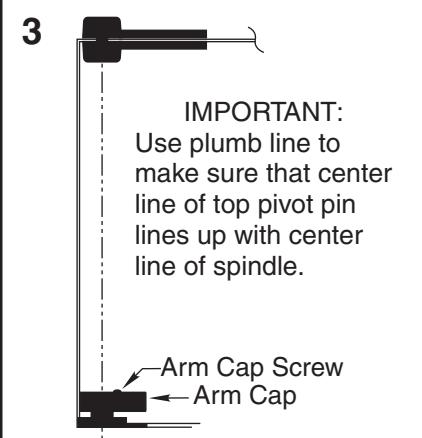

3. Install Top Pivot & Bottom Arm

  • A. Install top pivot in door per template.
  • B. Install top pivot in frame per template.
  • C. Install arm in door per template.
  • D. Center line of pivot should line up with center line of spindle. Use plumb line as illustrated.
  • E. If side jamb pivot is used, see required template FM 19.

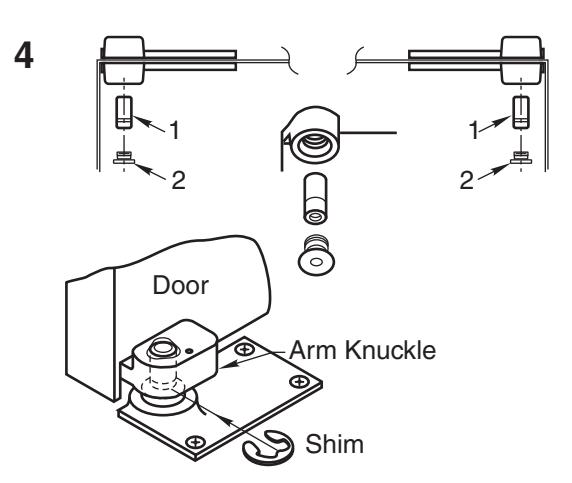

4. Hang Door

  • A. Set door on pivot set spindle.
  • B. Push Item 1 "top pivot pin" into place. Attach "cap" Item 2. CAP MUST BE TIGHTENED SECURELY.
  • C. See Installation Instructions for FML19 Intermediate Pivot.
  • D. If door drags at floor (or threshold, if used) loosen arm locking screw and raise door to desired clearance and insert one or more 1/16" (1.6) shims. Retighten arm locking screw securely.
  • E. Put arm cap on arm and secure tightly with cap screw furnished.

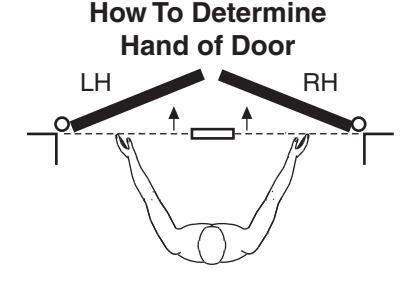

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

Lead in Center of Door 3/4" Offset, Handed FL147 Pivot Set for 1-3/4" Lead Lined Fire Door

ASSA ABLOY RIXSON ®

www.rixson.com

TEMPLATE NUMBER DATE

REV

IS-FL147 05-24 3
