Notes:

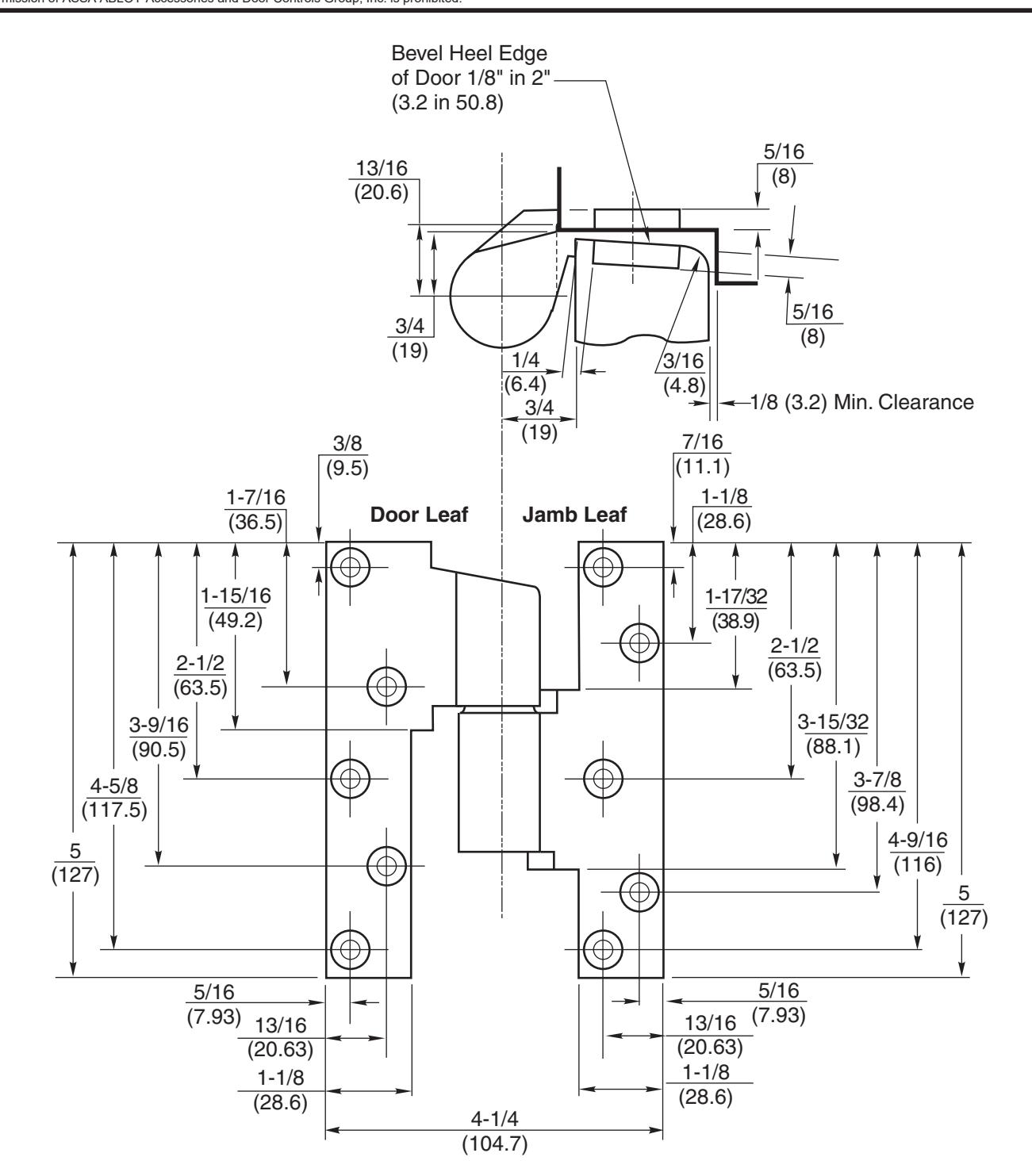

- 1. Do not scale drawing.
- 2. Dimensions are given in inches (mm).
- 3. Pivot drilled for 1/4-20 x 5/8" FHMS or #14 x 1-1/2 FHWS
- 4. Right hand shown.
- 5. Template drawing for reference only.
|
Side Jamb Pivot
Asylum Design 3/4" Offset – Handed |
RIXS | ASSA ABLOY www.rixson.com | ||
|---|---|---|---|---|
| ASSA A | ||||
| www.rixsoi | ||||
| TEMPLATE NUMBER | REV | DATE | ||
| IS-FA19 | 3 | 05-24 | ||
Approved 2024-05-24
Handed FA19 Side Jamb Pivot 3/4" Offset
Installation Instructions
Door should already be hung with top pivot and bottom pivot (or floor closer)
1. Mortise door & frame per template on reverse side.
2. Affix pivot to door & frame.
3. Align pivot point from top
pivot to bottom arm. (See diagram)
How To Determine Hand of Door
Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.
4. Loosen arm screw*.
5. Remove hex cap.
8. Turn stud screw counterclockwise until door rests on shims.
6. Turn stud screw clockwise. Raise the door to the desired height.
9.
Tighten arm screw on spindle. Open and close door several times Re-tighten arm screw.
7. Using shims furnished with bottom arm, fill gap between arm and base.
10. Replace hex cap.
* If bottom arm is for a Uni-Chek 67/68 or 117 pivot, make sure the arm is sitting all the way down on the base. Make NO adjustments to the M19.
Side Jamb Pivot Asylum Design 3/4" Offset – Handed
RIXSON ®
ASSA ABLOY
www.rixson.com TEMPLATE NUMBER DATE REV
IS-FA19 05-24 3
Approved 2024-05-24
