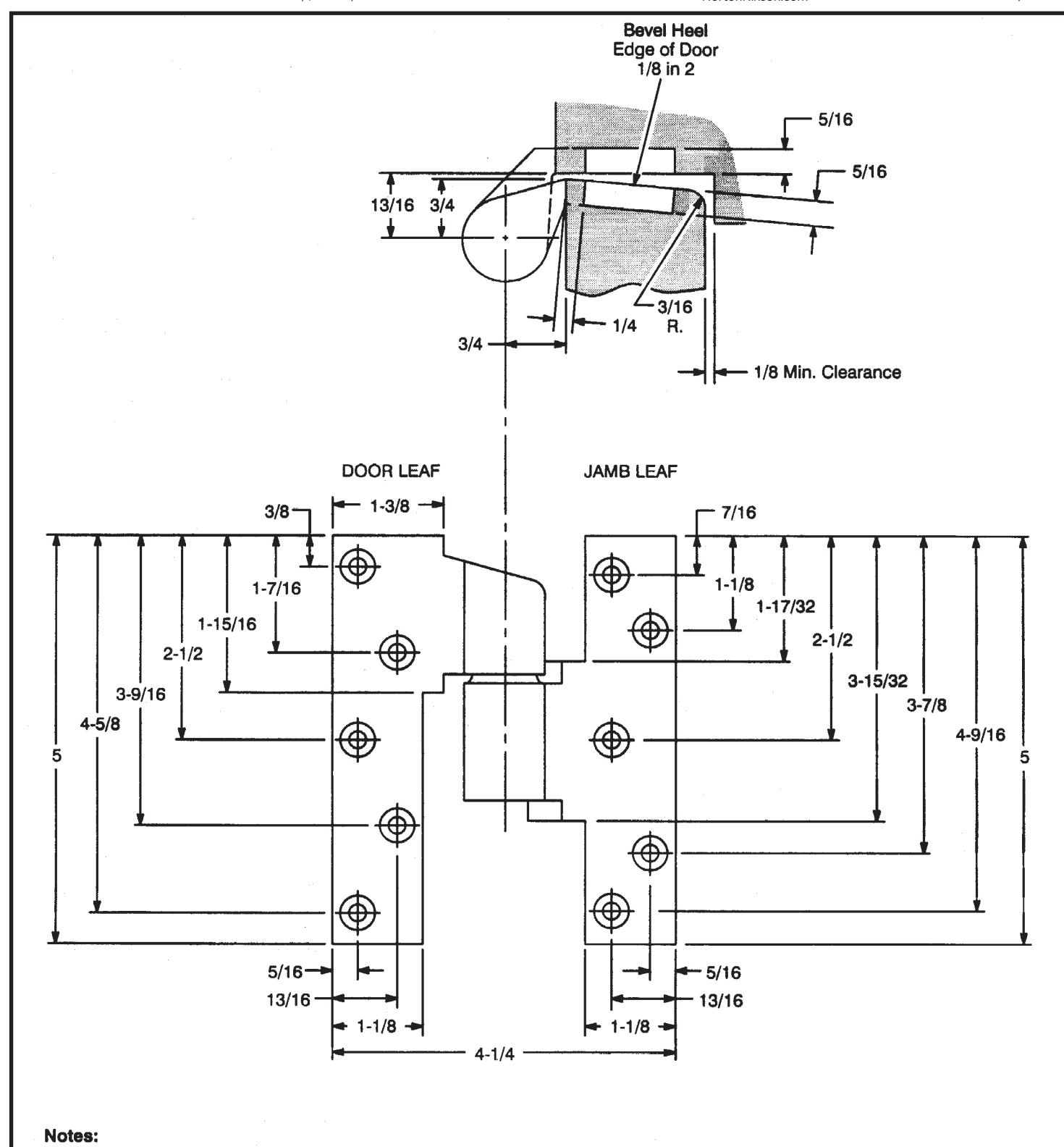

Norton Rixson FA19 Intermediate Pivot, 3, 4 Offset Template_IP50000
Open the original PDF document
View PDF
- 1. Do not scale drawing.
- 2. Right hand shown.
- 3. Pivot drilled for 1/4-20 x 5/8" FHMS or #14 x 1-1/2" FHWS.
- 4. All dimensions are in inches.
Intermediate Pivot FA19 3/4" Offset
ASSA ABLOY
TEMPLATE NUMBER REV
IP50000 3 01/22
Approved 2023-12-15
