Norton Rixson F519 Pocket Pivot Template_IP50500

• 1. Do not scale drawing.
• 2. Dimensions are given in inches (mm).
• 3. Right hand shown.
• 4. Machine Screw Size #12-24 x 3/4" FHMS Wood Screw Size #12 x 1-1/2" FHWS

Approved 2023-12-15

• A. Open Pivot 90° to expose screw holes and attach door leaves of all pivots required to door using appropriate
• B. Install door and pivot assembly to jamb by supporting door at the proper height and sliding toward jamb so that pivots enter the jamb pockets and mortises.
• C. With door properly supported and opened approximately 60° or more to expose screw holes. Attach pivot jamb leaf to jamb using appropriate fasteners.

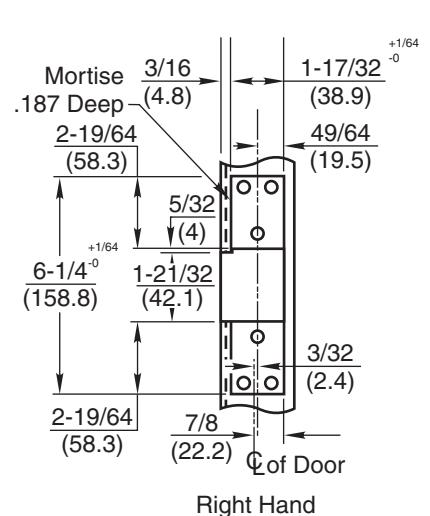

Right Hand Frame (Jamb Style 1)

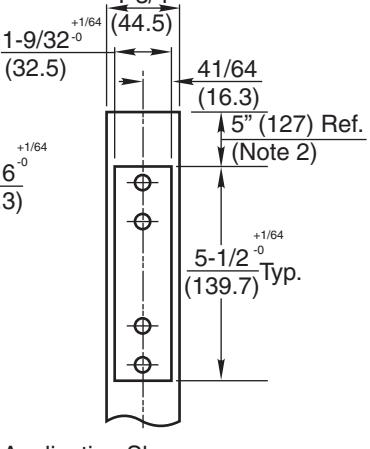

Right Hand Frame (Jamb Style 2)

Key Plan Pair of Doors

<u>9/</u>16^-0 (14.3)

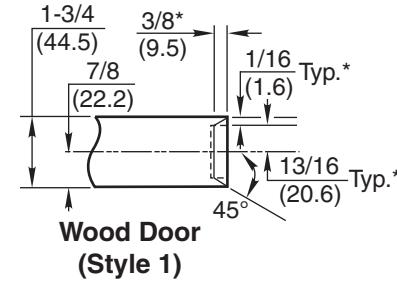

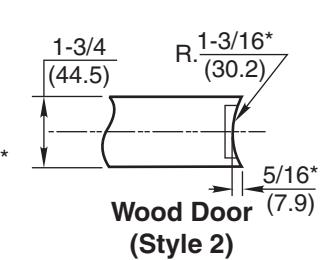

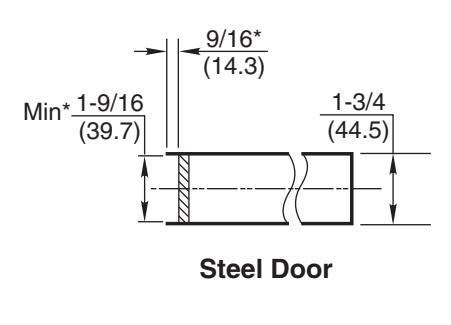

Wood Application Shown Dimensions Same for Steel Door

Door Mortise Detail

Notes:

• 1. * Prepare full length of door to these dims.
• 2. Use standard spacing to suit size of door.
• 3. Use 1 pivot for every 30" (762) of door height.
• Use 1 pivot for every 90 lbs. of door weight.
• 5. Reinforcement tabs shall leave clear opening of 1-7/8 to allow installation of pivot.

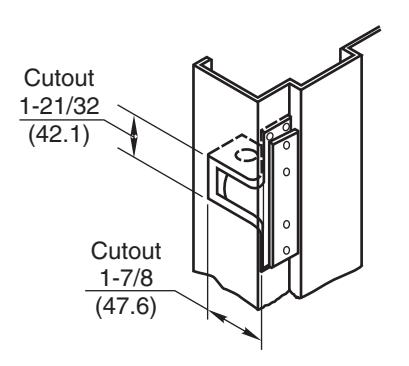

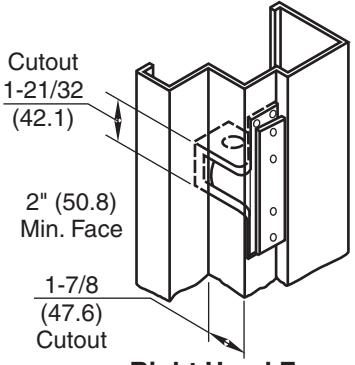

Mortise Detail, Steel Frame

Door Jamb Clearance 7/64 (2.8) - Hinge Side

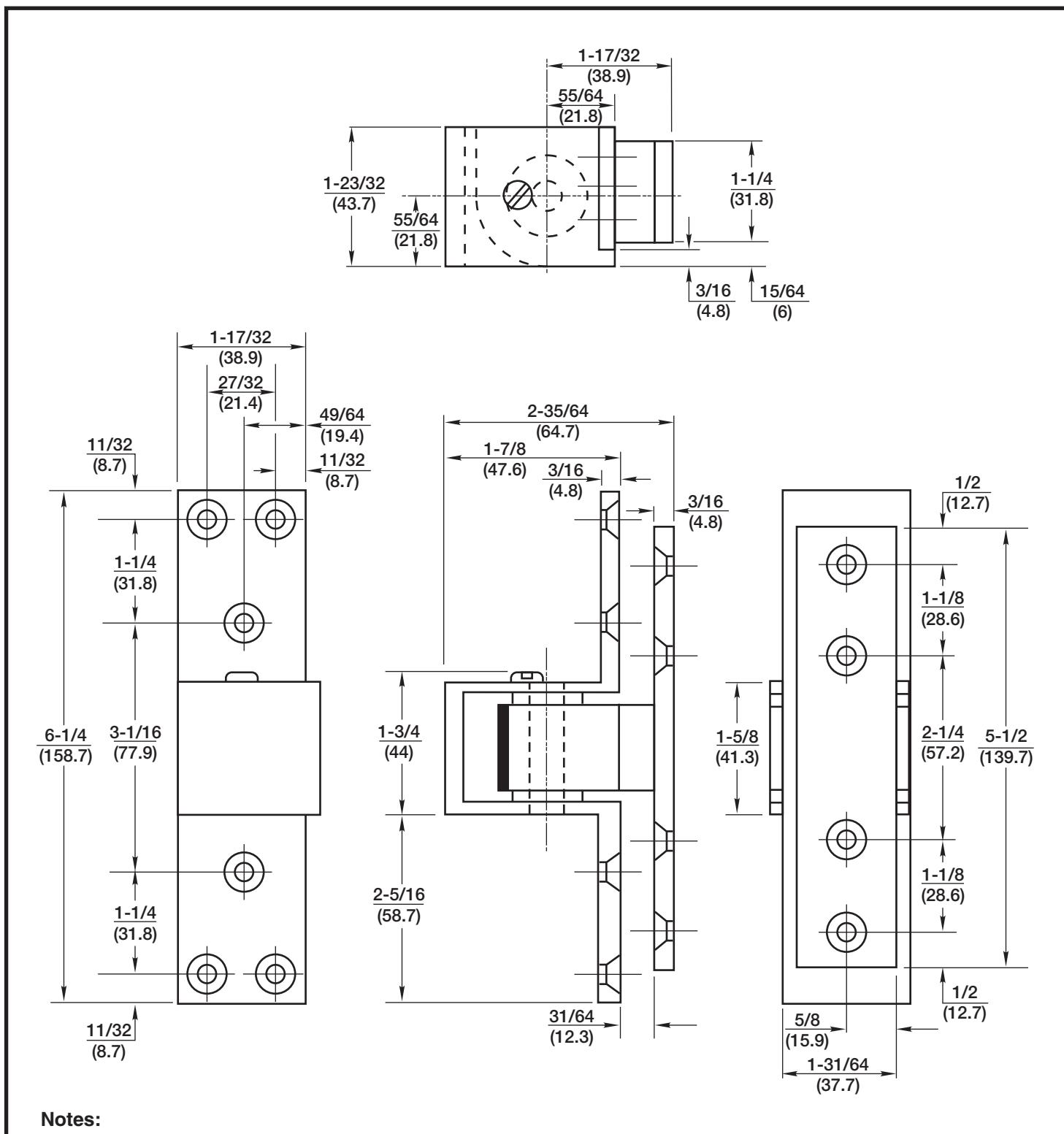

F519 Pocket Pivot

) NORTON RIXSON ASSA ABLOY

TEMPLATE NUMBER IP50500

3 01/2 2 of 2

Approved 2023-12-15
