Notes:

• 1. Do not scale drawing.
• 2. Dimensions are given in inches (mm).
• 3. Right hand shown.
• 4. Machine Screw Size #12-24 x 3/4 FHMS Wood Screw Size #12 x 1-1/2 FHWS

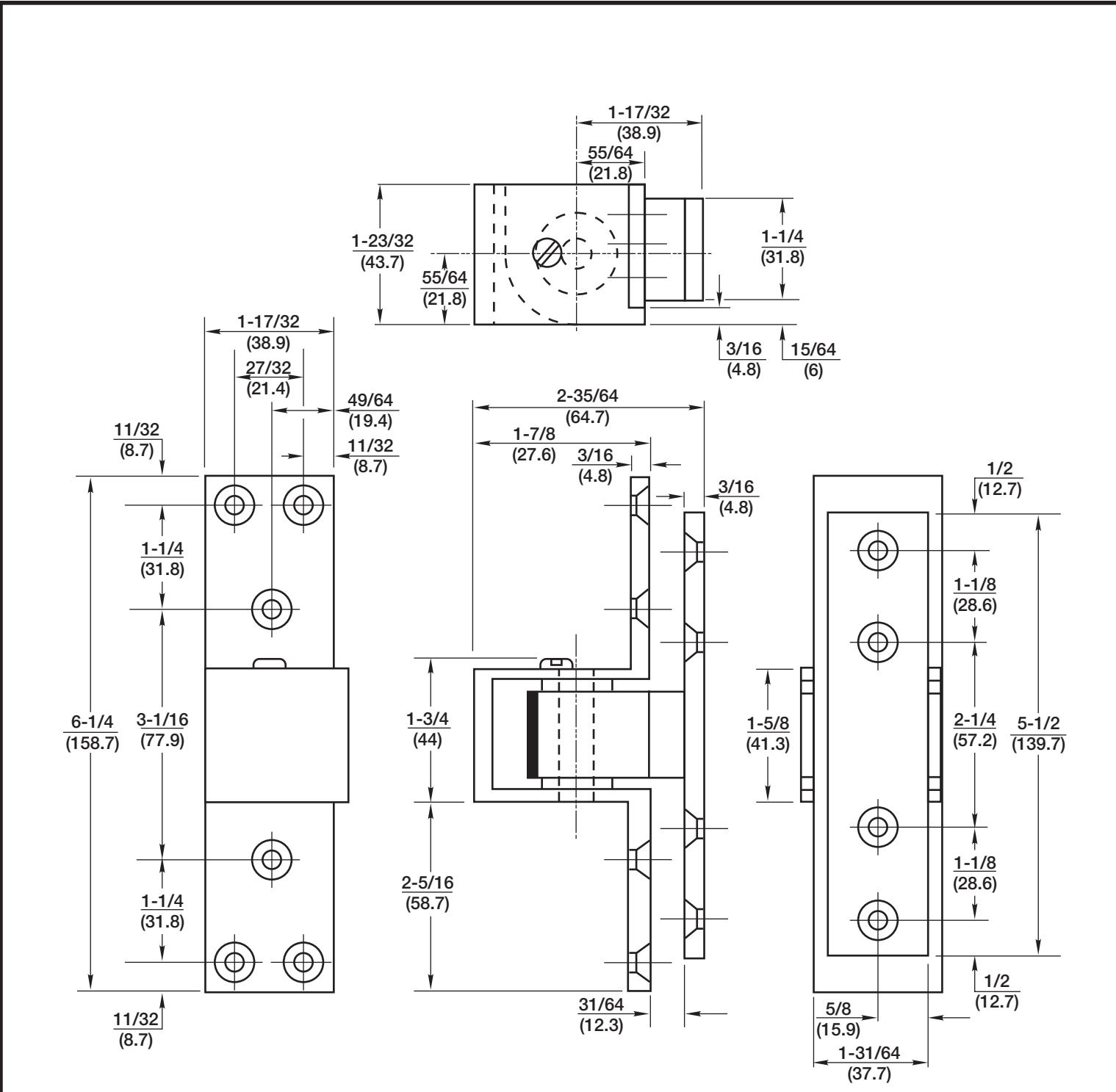

F519 Pocket Pivot Installation Instructions

• A. Using information below, prepare door and jamb for appropriate number of pivots based on door height and weight.
• B. Open pivot to expose screw holes. Using appropriate fasteners, attach smaller door portion of all pivots to door.
• C. Hang door by supporting door at the appropriate height within opening and sliding toward jamb so that pivots enter the jamb pockets and mortises.
• D. With door properly supported and opened to expose screw holes, attach pivot jamb portion of all pivots to jamb using appropriate fasteners.

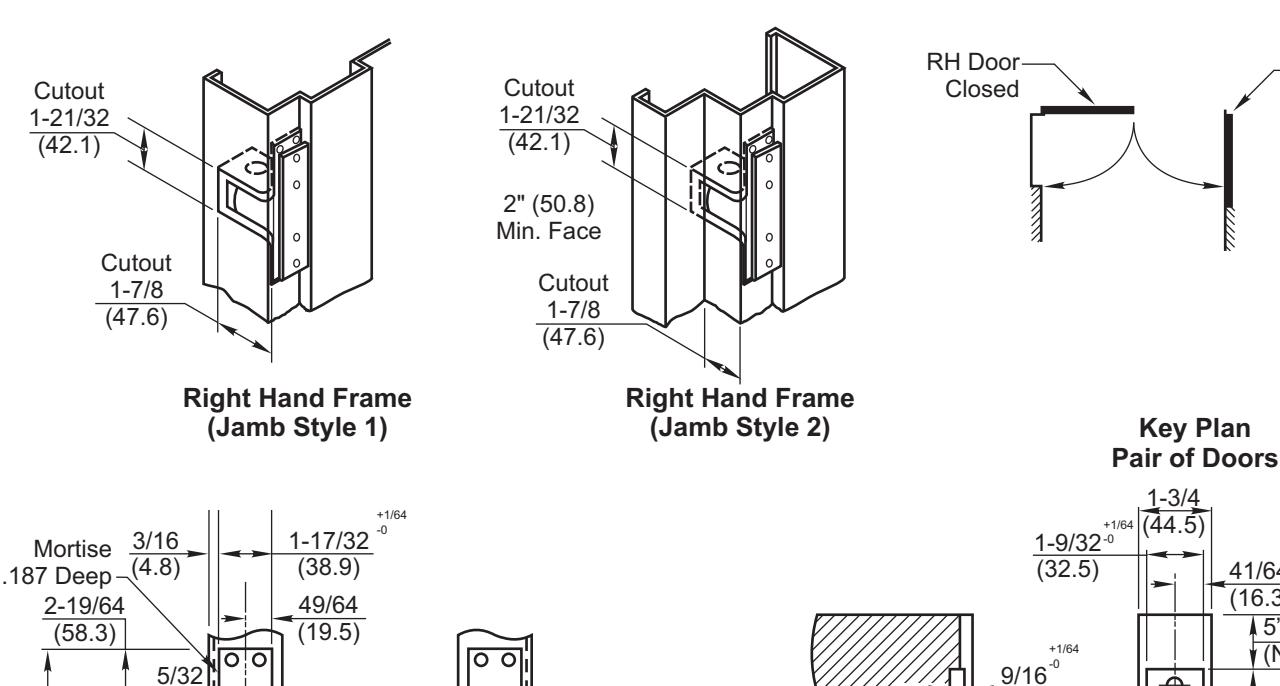

Right Hand Left Hand Mortise Detail, Steel Frame

3/32

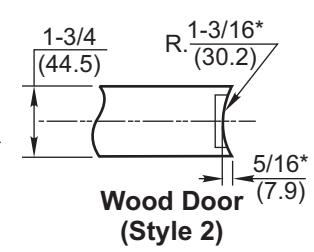

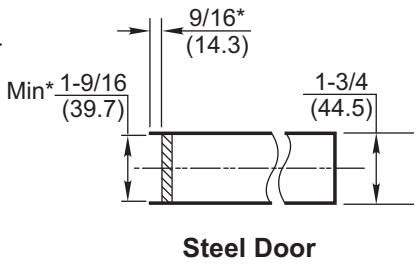

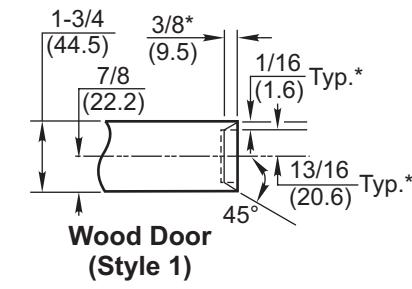

Wood Application Shown Dimensions Same for Steel Door

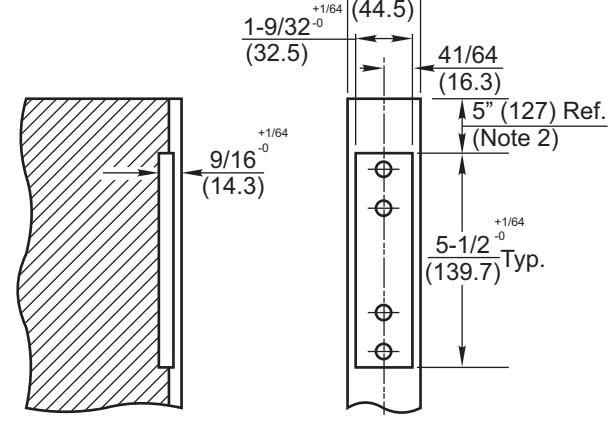

Door Mortise Detail

Notes:

1. * Prepare full length of door to these dims.

(4)

-21/32

7/8

(22.2)

2. Use standard spacing to suit size of door.

<u>6-1/</u>4^-0

2-19/64

(58.3)

(158.8)

• 3. Use 1 pivot for every 30" (762mm) of door height.
• 4. Use 1 pivot for every 90 lbs. of door weight.
• 5. Reinforcement tabs shall leave clear opening of 1-7/8 to allow installation of pivot.

0

0

Door Jamb Clearance 7/64 (2.8) - Hinge Side

F519 Pocket Pivot

ASSA ABLOY www.rixson.com TEMPLATE REV SHEET DATE IS-F519 3 2 of 2 10-21

LH Door

Opened

into Pocket
