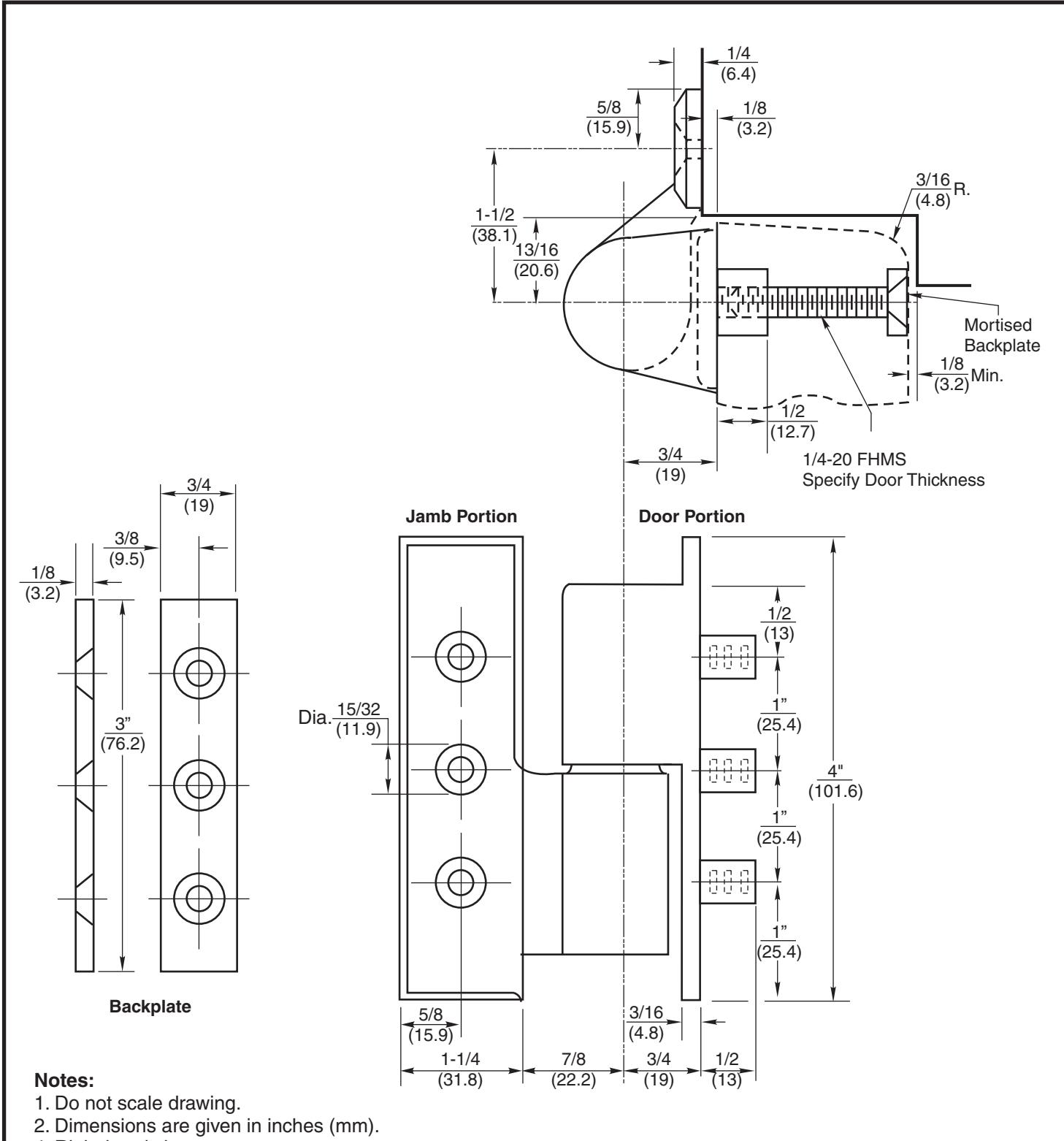

Norton Rixson F419 Intermediate Pivot, 3, 4 Offset Full Surface Template_IP50410
Open the original PDF document
View PDF
- 4. Right hand shown.
- 5. All necessary reinforcing for pivot by others.
- 6. Bevel edge of door: 1/8" in 2" (3.2 in 50.8)
- 7. Jamb portion drilled for 5/8" x 1/4-20 FHMS or 1-1/2" #14 FHWS.
F419 Intermediate Pivot 3/4" Offset Full Surface
ASSA ABLOY
TEMPLATE NUMBER IP50410
3 01/22
Approved 2023-12-15
