Norton Rixson F319 Intermediate Pivot, 3, 4 Offset, Half Mortise, Fire Rated Template_IP50310

Open the original PDF document

3. Right hand shown.
4. All necessary reinforcing for pivot by others.
5. Bevel edge of door: 1/8" in 2" (3.2 in 50.8)
6. Pivot drilled for 5/8" x 1/4-20 FHMS or 1-1/2" #14 FHWS.

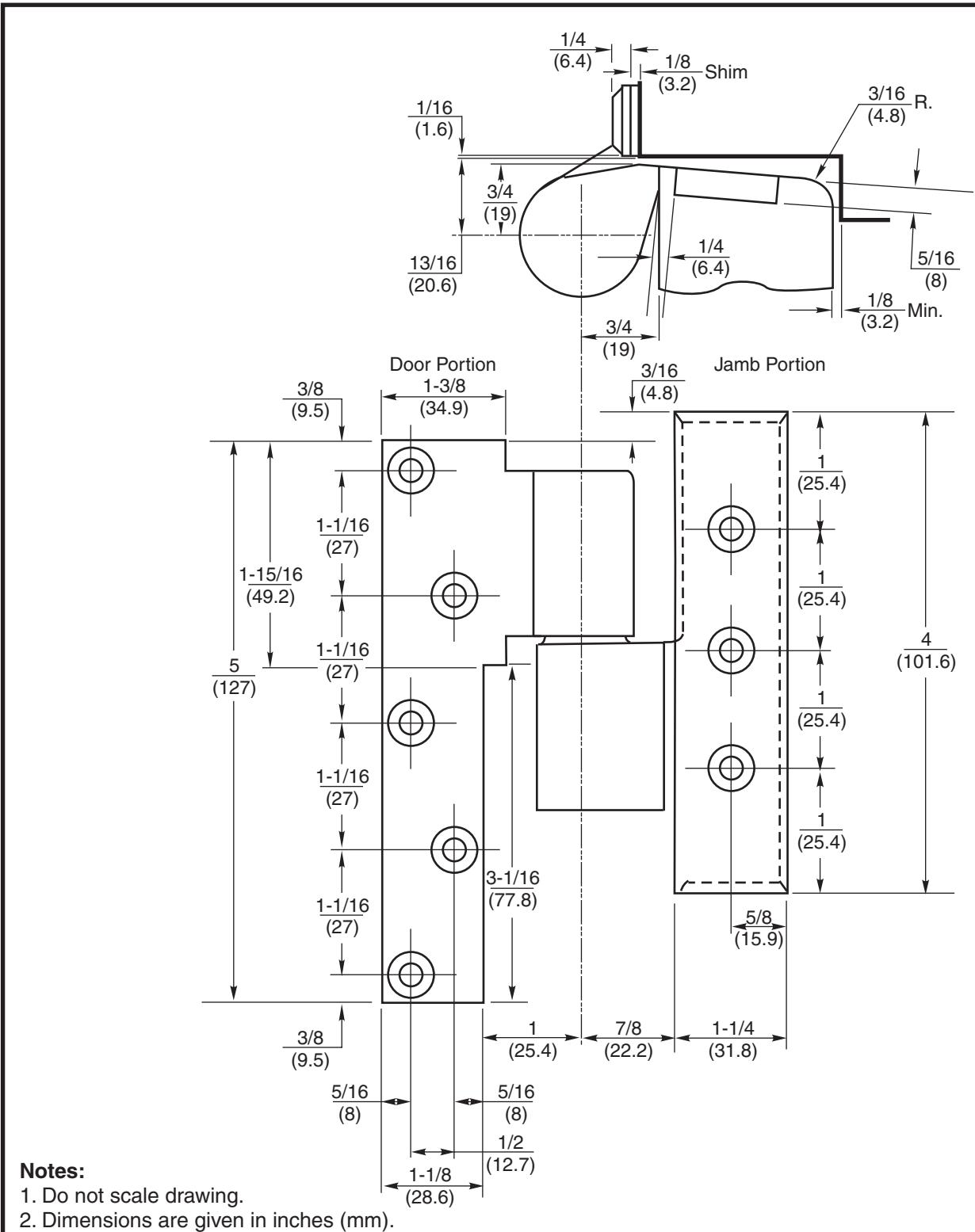

F319 Intermediate Pivot 3/4" Offset Half Mortise - Fire Rated

RIXSON

ASSA ABLOY

TEMPLATE NUMBER IP50310

3 01/22
