147 x 1-1/2" Pivot Set

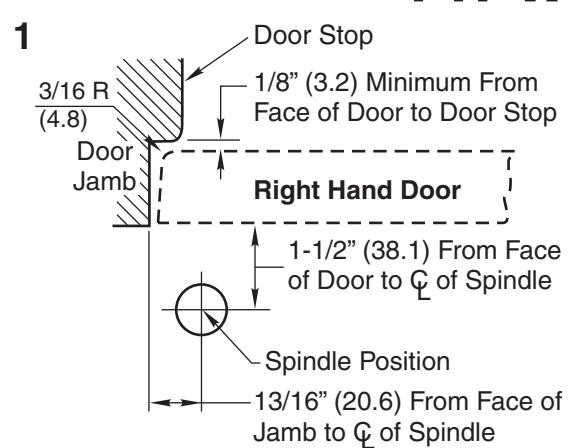

1. Install Pivot

• A. Measure 13/16" (20.6) out from door jamb.
• B. Allow 1/8" (3.2) min. clearance from door stop to door face. Measure door thickness, Add 1-1/2" (38.1).
• C. Where lines meet determines center line of closer.

2. Set Pivot Set

• A. Prepare floor to receive floor portion, SET ANCHORS PROVIDED SECURELY IN FLOOR.
• B. Important: Floor portion must be level. Level in both directions
• C. Floor portion should be parallel with center line of door.
• D. Insert pivot stud in floor portion.

Level in Both Directions

X

Floor

Portion

3. Install Top Pivot & Bottom Arm

• A. Install top pivot in door per template.
• B. Install top pivot in frame per template.
• C. Install arm in door per template.
• D. Center line of pivot should line up with center line of spindle. Use plumb line as illustrated.
• E. If side jamb pivot is used, see required template.

IMPORTANT:

2

3

Pivot Stud

Use plumb line to make sure that center line of top pivot pin lines up with center line of closer spindle.

Arm Cap Screw Arm Cap

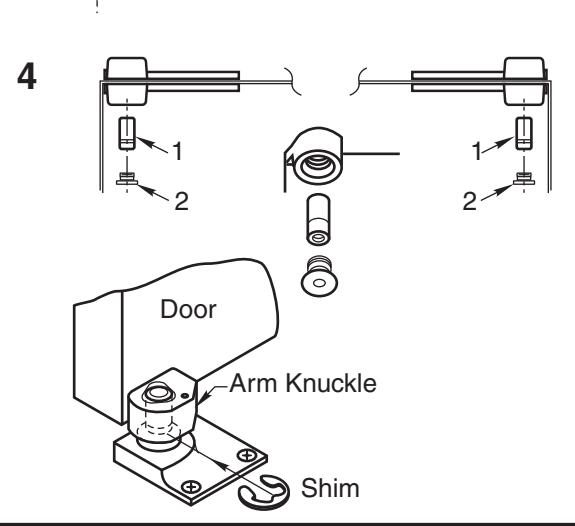

4. Hang Door

• A. Set door on pivot set spindle.
• B. Push Item 1 "top pivot pin" into place. Attach "cap" Item 2. CAP MUST BE TIGHTENED SECURELY.
• C. See Installation Instructions for M19/M190 x 1-1/2 Offset Intermediate Pivot.
• D. If door drags at floor (or threshold, if used) loosen arm locking screw and raise door to desired clearance and insert one or more 1/16" (1.6) shims. Retighten arm locking screw securely.
• E. Put arm cap on arm and secure tightly with cap screw furnished.

How To Determine Hand of Door RH

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

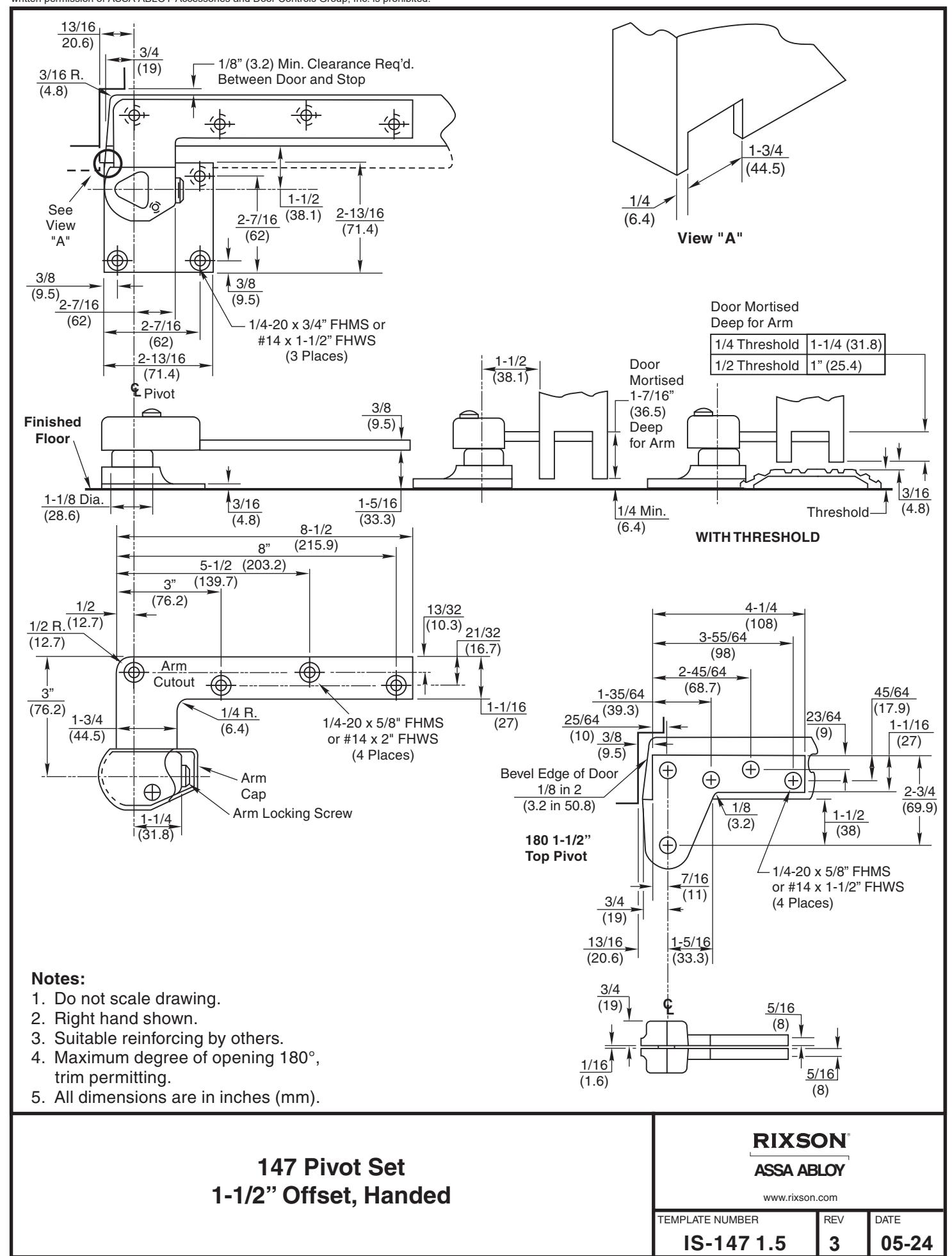

147 Pivot Set 1-1/2" Offset, Handed

RIXSON ASSA ABLOY

www.rixson.com

TEMPLATE NUMBER IS-147 1.5

REV

05-24

DATE
