F117/117 Pivot Set

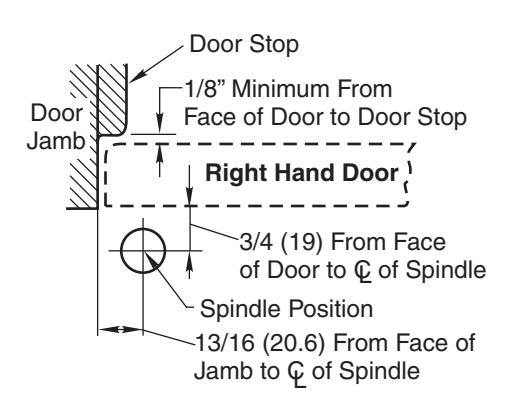

1 . LOCATE PIVOT

• A. Measure 13/16 (20.6) from door jamb.
• B. Allow 1/8 (3.2) minimum clearance from door stop to door face. Measure door thickness; add 3/4 (19).
• C. Where lines meet determines centerline of pivot.

2 . SET PIVOT SET (F117 & 117)

• A. Prepare floor to receive Floor Portion. Set anchors provided securely in floor.

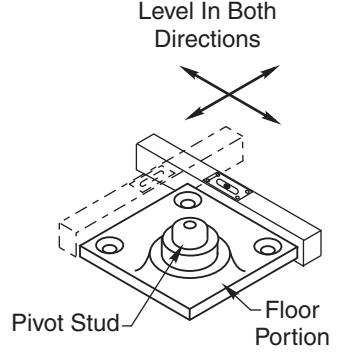

• B. IMPORTANT: Floor Portions must be level. Level in both directions per illustration.
• C. Floor Portion should be parallel with face of door.

3 . INSTALL TOP PIVOT AND PIVOT ARM.

• A. Install top pivot in door per template.
• B. Install top pivot in frame per template.
• C. Install arm in door per template.

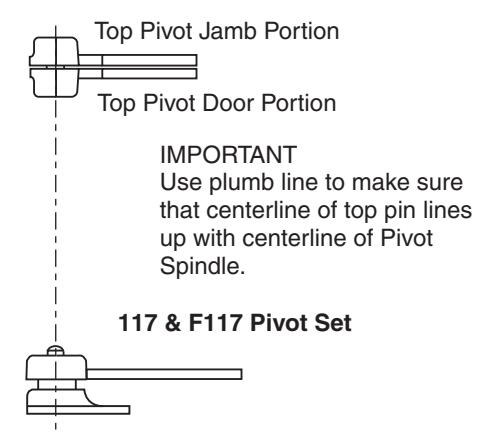

• D. Centerline of top pivot should line up with centerline of spindle.
• E. If side jamb pivot is used, see required template M19.

4 . HANG DOOR

• A. Set door on Floor Portion.
• B. Push top pivot pin (1) up into place and replace cap (2).
• C. Put arm cap on arm and secure tightly with screw furnished.

Right Hand installation

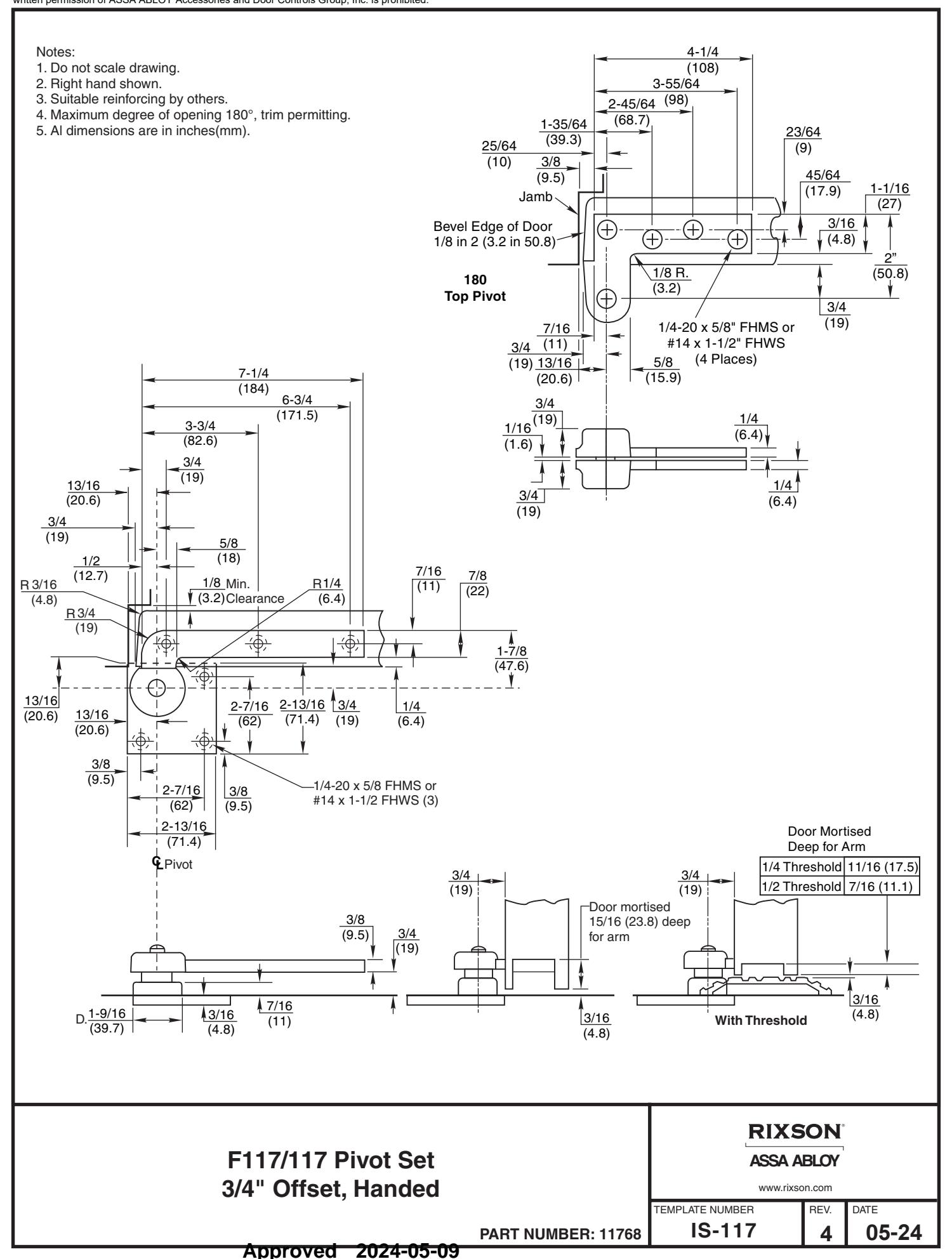

PART NUMBER: 11768

Do Not Scale Drawing

F117/117 Pivot Set 3/4" Offset, Handed

ASSA ABLOY RIXSON ®

www.rixson.com

REV. 4

TEMPLATE NUMBER DATE

IS-117 05-24

Approved 2024-05-09
