ELECTROMAGNETIC DOOR HOLDER/ RELEASES

DESIGNED FOR REMOTE DOOR RELEASE APPLICATIONS

TABLE OF CONTENTS

ELECTROMAGNETIC DOOR HOLDER/RELEASES

INTRODUCTION

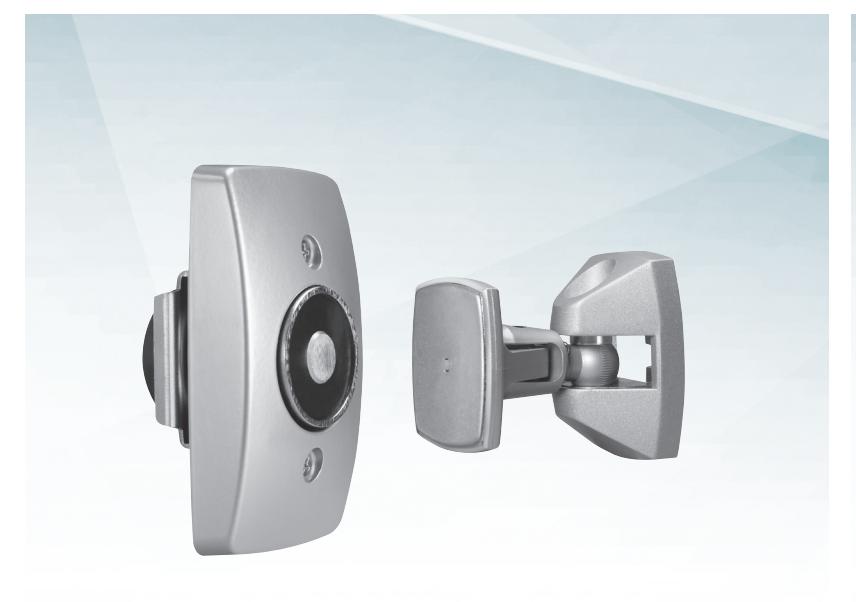

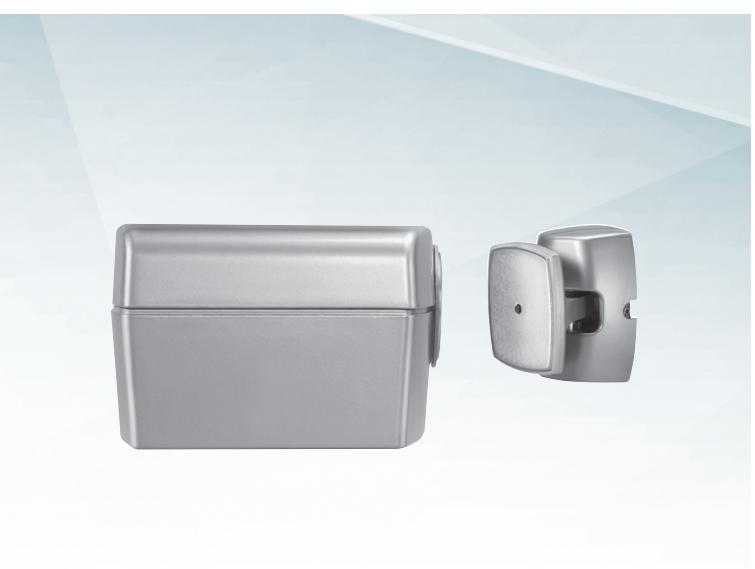

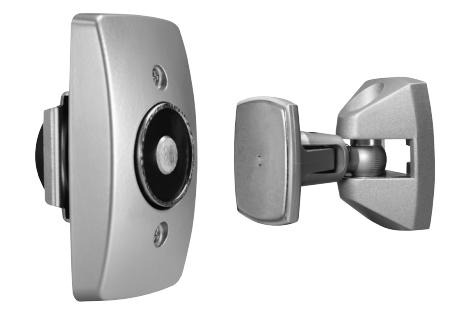

Norton Rixson offers a wide range of electromagnetic door holders/releases. Designed for virtually any remote door release application, electromagnetic door holders/releases primarily hold fire doors open until released by an alarm or smoke detector.

Floor mounted units are available for single or back-to-back doors. Wall mounted units feature concealed or surface wiring, low profile projection or high hold force.

TABLE OF CONTENTS

How to Select Product	3-4
980M Floor Mounted
981M Floor Mounted Back to Back Doors	5
989, 990M Low Projection Wall Mounted
991M Hazardous Location Wall Mounted	7
993M High Hold Wall Mounted
9930M High Hold Floor Mounted
994M Wall Mounted Adjustable Armature
996M Surface Mounted	8
997M, 998M Wall Mounted
999M Universal Wall Mounted
Wiring Schematics
Accessories
972H Industrial Swinging Door
972S Industrial Sliding Door	13
972U Industrial Overhead Door
How to Order	14
Parts List	15-20

HOW TO SELECT A PRODUCT

ELECTROMAGNETIC DOOR HOLDER/RELEASES

GENERAL INFORMATION

Electromagnetic door holder/releases are designed for virtually any remote door release applications. They must be used in conjunction with closing devices.

• • Fire/smoke barrier doors
• Door releases when tripped by an alarm or smoke detector
• • Private offices
• Door releases when triggered by a remote switch
• • All devices come with a wall/floor portion and a door portion (armature)
• • Circuit normally closed

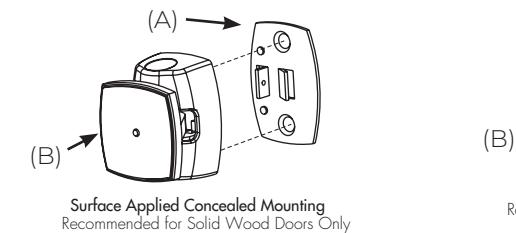

• • Door portions have screws and plates to accommodate surface and concealed mounting

Features

• • 25-40lbs. holding force, except where noted
• • Fail-safe operation; power failure releases door to close
• • Positive release button initiates closing motion

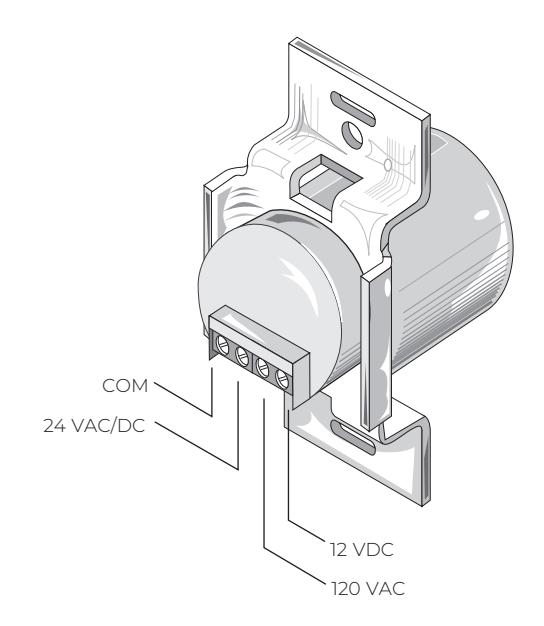

• • Tri-Volt (120VAC, 24VAC/DC, 12VDC) is standard on models: 980M, 981M, 989, 990M, 994M, 996M, 997M, 998M and 999M - see
• • Spotting template included
• • For 50-55lbs. of holding force on models 980M, 981M, 989, 990M, 994M, 996M, 997M, 998M and 999M, specify model number x 120VAC, 24VAC, 24VDC or 12VDC when ordering. Not available in Tri-Volt coils.

Certifications

• • See individual sections for compliance with ANSI/BHMA A156.15 standards
• • UL-cUL listed
• • Cal Fire 3550-0047:0001 (980M, 981M, 990M, 991M, 996M, 997M, 998M, and 999M)
• • Cal Fire 3550-0047:0110 (993M)

Specifications

All electromagnetic door holder/releases shall be supplied by architectural hardware supplier. All units shall have a single coil to accommodate 12VDC, 24VAC, 24VDC and 120VAC. The coils shall be independently wound, employing a fuse. Armatures will have positive release button.

HOW TO SELECT PRODUCT

ELECTROMAGNETIC DOOR HOLDER/RELEASES

Prior to determining the product you will need to use, begin by looking at the door and perpendicular wall relationship.

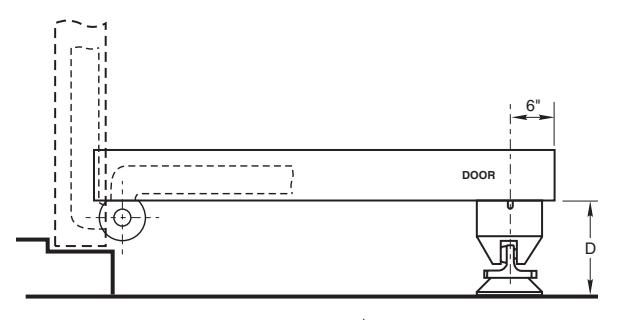

• Measure the distance. That will give you the "D" dimension. Select from chart A.

Chart A

If the distance from wall to door is: "D"	Use
7/16" (11)	989
1-13/16" (46)	990M
2-5/8" (67)	997M
3-5/8" (92)	998M
3-3/4" (95)	994M
4-1/8" (105)	996M
4-3/8" (111)	999M
5-1/8" (130)	998M x XK996M
6-5/8" (168) min. distance from wall	980M
6-3/4" distance between doors	981M

900 base has a minimum: 1-1/2" (38mm) extension.

Maximum: 10" using combination of spacers [1/2" (13mm), 3/4" (19mm), etc.] Longer armature projections may encourage abuse and/or the weight of the extended rods will pull off the face of the door.

Chart B

Junction box location should always be as close as possible to the door pull/lever/knob.

A position horizontally farther toward the hinge edge will dramatically lessen the hold open force of the magnet.

A mounting too high on the vertical plane (top of door) will make it more difficult to pull out of hold open.

Refer to Diagram B

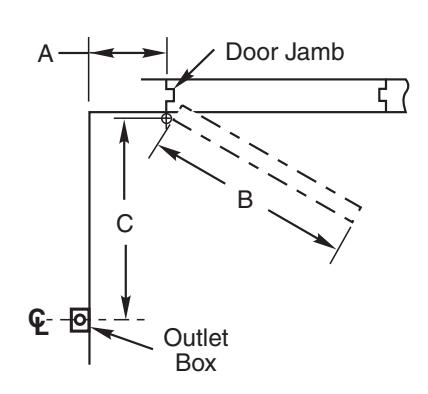

• How far is the centerline of the pivot/hinge from the wall? "A" dimension
• What is width of door? "B" dimension
• At what degree is the door opening? If this dimension is more than 100° consult template. The armature has a few degrees of adjustment but, before proceeding verify with the product template
• Dimension "C" is from pivot point to junction box centerline

FLOOR MOUNTED

ELECTROMAGNETIC DOOR HOLDER/RELEASES

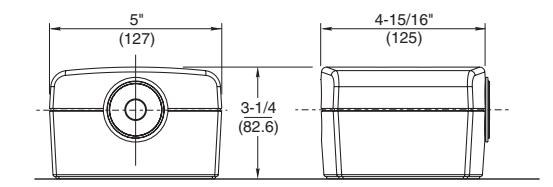

MODEL 980M

Application

• • Floor mount
• • Single door
• • Shipping weight: 4 lbs. (1.8 kg)

Features

• • Concealed wiring
• • Total floor space required: 6-5/8" (168mm)
• • Mounting requirements: conduit connects directly to floor plate
• • 2 year limited warranty

Compliance

• • ANSI/BHMA A156.15, Grade 1
• • ANSI/C00021

Electrical Data

• Voltage and current: 120VAC, 60 Hz., .020 amp 24VAC/DC, 60 Hz., .020 amp 12VDC, .040 amp

• For 50-55 lbs. of holding force, specify voltage 120VAC, 60Hz .017 amp 24VAC, 60Hz .080 amp 24VDC, .068amp 12VDC, .180amp

MODEL 981M

Application

• • Floor mount
• • 2 back-to-back doors
• • Shipping weight: 4-3/4 lbs. (2.2 kg)

Features

• • Concealed wiring
• • Floor space required: 8-1/4" (210mm)
• • Mounting requirements: conduit connects directly to floor plate
• • 2 year limited warranty

Compliance

• • ANSI/BHMA A156.15, Grade 1
• • ANSI/C00031

Electrical Data

• Voltage and current: 120VAC, 60Hz., .040 amp 24VAC/DC, .040 amp 12VDC, .080 amp

• For 50-55 lbs. of holding force, specify voltage 120VAC, 60Hz .034 amp 24VAC, 60Hz .016 amp

24VDC, .036 amp 12VDC, .360 amp

ELECTROMAGNETIC DOOR HOLDER/RELEASES

MODEL 989

Application

• • Wall mount
• • Low profile
• • Concealed wiring
• • Shipping weight: 2 lbs. (0.9 kg)

Features

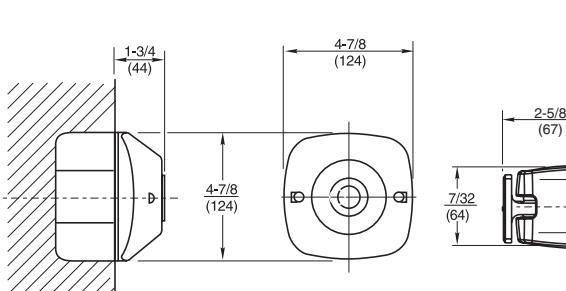

• • Total projection: 7/16" (11mm)

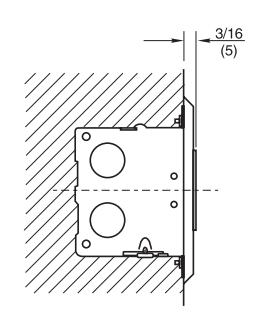

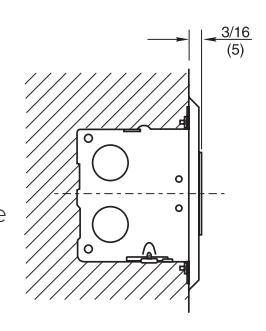

• • Mounting requirements: 2" x 4" x 2-1/2" (51 x 102 x 64mm) outlet box
• • Wall must be properly reinforced and outlet box adequately fastened
• • 2 year limited warranty

Compliance

• • ANSI/BHMA A156.15, Grade 1
• • ANSI/C00011

Electrical Data

• Voltage and current: 120VAC, 60Hz., .020 amp 24VAC/DC, 60Hz., .020 amp 12VDC, .040 amp

120VAC, 60Hz .017 amp

• For 50-55 lbs. of holding force, specify voltage

24VAC, 60Hz .080 amp 24VDC, .068amp 12VDC, .180amp

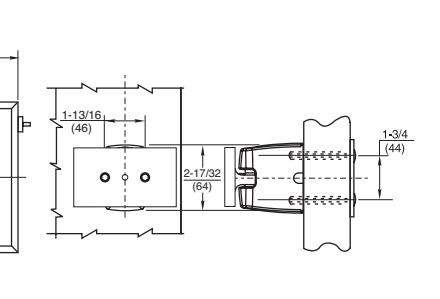

MODEL 990M

Application

• • Wall mount
• • Low profile
• • Concealed wiring
• • Shipping weight: 2 lbs. (0.9 kg)

Features

• • Total projection: 1-13/16" (46mm)
• • Mounting requirements: 2" x 4" x 2-1/2" (51 x 102 x 64mm) outlet box
• • Wall must be properly reinforced and outlet box adequately fastened
• • 2 year limited warranty

Compliance

• • ANSI/BHMA A156.15, Grade 1
• • ANSI/C00011

Electrical Data

• Voltage and current: 120VAC, 60Hz., .020 amp 24VAC/DC, 60Hz., .020 amp 12VDC, .040 amp

• For 50-55 lbs. of holding force, specify voltage 120VAC, 60Hz .017 amp 24VAC, 60Hz .080 amp 24VDC, .068amp 12VDC, .180amp

SPECIAL PURPOSE WALL MOUNTED

ELECTROMAGNETIC DOOR HOLDER/RELEASES

MODEL 991M

Application

• • Wall mount
• • Surface wiring
• • Hazardous locations
• • Shipping weight: 3 lbs. (1.4 kg)

Features

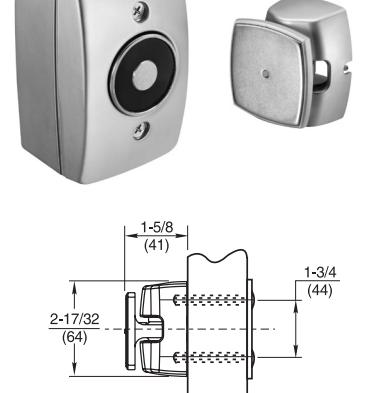

• • Total projection: 4" (101mm)
• • Approved for class I division 2, class II division 2, groups F and G and class III locations
• • Unit includes a sealed surface-mounted junction box
• • 2 year limited warranty

Compliance

• • ANSI/BHMA A156.15, Grade 1
• • ANSI/C00011

Electrical Data

• Voltage and current: 120VAC, 60Hz., .017 amp 24VAC, .080 amp 12VAC, .180 amp 24VDC, .068 amp

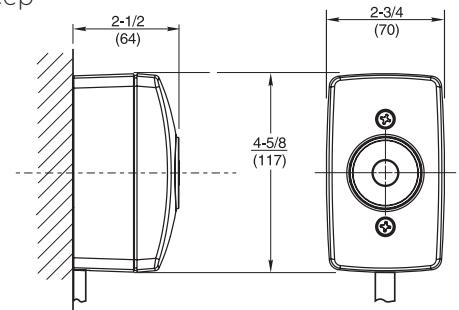

2-1/2 (64)

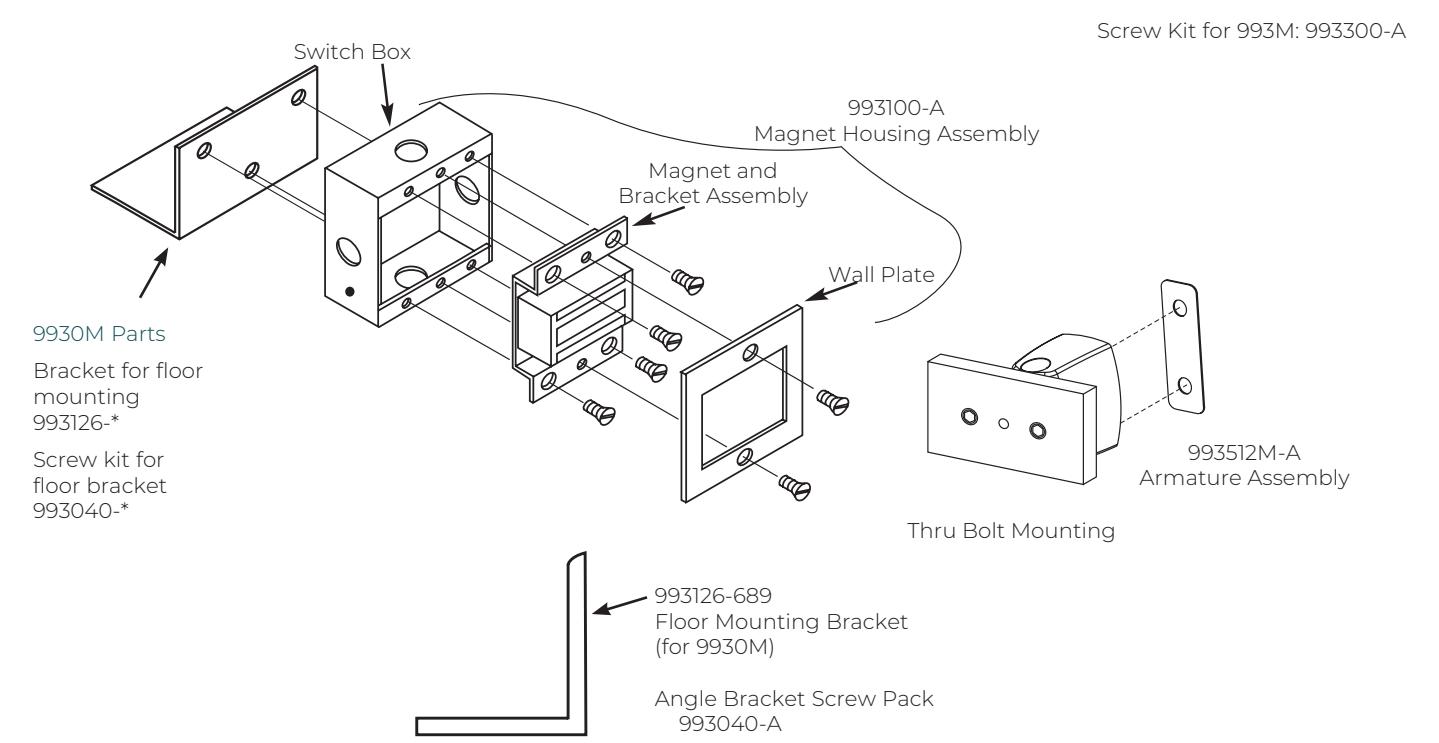

MODEL 993M

Application

• • High hold
• • Surface or concealed mounting
• • Floor or wall application
• • Shipping weight: 3 lbs. (1.4 kg)

Features

• • 275 lb. holding force

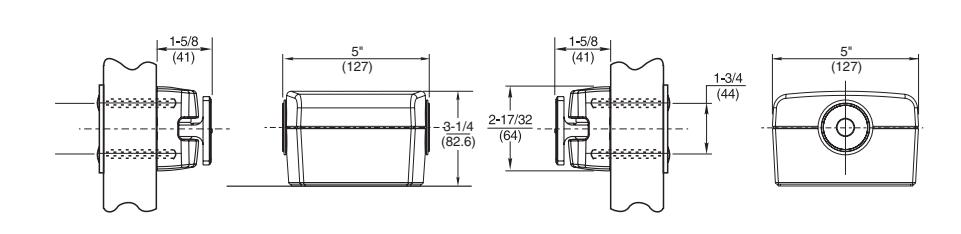

• • Total projection: 5-1/4" (133mm)
• • Switch box included 4-1/2" x 4-9/16" x 2-1/2" (114 x 116 x 64mm) deep
• • Armature plate thru-bolted to maintain consistent contact with magnet
• • Adjusting screw on special heavy-duty armature allows for alignment of contact plate
• • 9930M floor mount available
• • Unit has test switch may be ordered without switch if door will be pulled out of hold open very often
• • Use key switch to release (by others)
• • Substantial wall reinforcement required
• • 2 year limited warranty

Electrical Data

• Voltage and current: 24VAC/DC .25 amp

ELECTROMAGNETIC DOOR HOLDER/RELEASES

MODEL 994M

Application

• • Wall mount
• • Adjustable armature
• • Concealed wiring
• • Shipping weight: 2 lbs. (0.9 kg)

Features

• • Total projection: 3-3/4" (95mm)
• • Adjustable armature rotation up and down, back and forth for better alignment.
• • Cannot be use with 900 base or spacers.
• • Can be used without adjustment piece making it a model 997
• • Mounting requirements: 2" x 4" x 2-1/2" (51 x 102 x 64mm) outlet box
• • Wall must be properly reinforced and outlet box adequately fastened
• • 2 year limited warranty

Compliance

• • ANSI/BHMA A156.15, Grade 1
• • ANSI/C00011

Electrical Data

• Voltage and current: 120VAC, 60Hz., .020 amp 24VAC/DC, 60Hz., .020 amp 12VDC, .040 amp

• For 50-55 lbs. of holding force, specify voltage 120VAC, 60Hz .017 amp

24VAC, 60Hz .080 amp 24VDC, .068amp

12VDC, .180amp

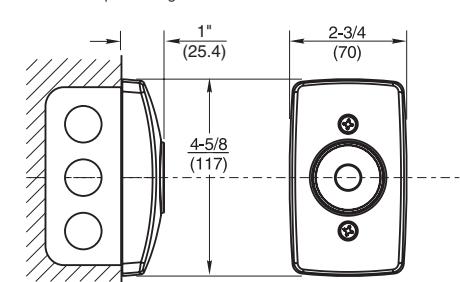

1" (25.4) 2-3/4

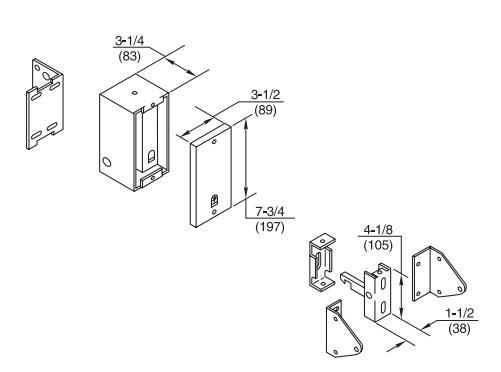

MODEL 996M

Application

• Wall mount
• Surface wiring
• Shipping weight: 3 lbs. (1.4 kg)

Features

• Total projection: 4-1/8" (105mm)
• Mounting requirements: 1-1/2" (38mm) deep adapter housing
• Wall must be properly reinforced
• 2 year limited warranty

Compliance

• ANSI/BHMA A156.15, Grade 1
• ANSI/C00011

Electrical Data

• Voltage and current: 120VAC, 60Hz., .020 amp 24VAC/DC, 60Hz., .020 amp 12VDC, .040 amp

• For 50-55 lbs. of holding force, specify voltage

120VAC, 60Hz .017 amp 24VAC, 60Hz .080 amp 24VDC, .068amp

ELECTROMAGNETIC DOOR HOLDER/RELEASES

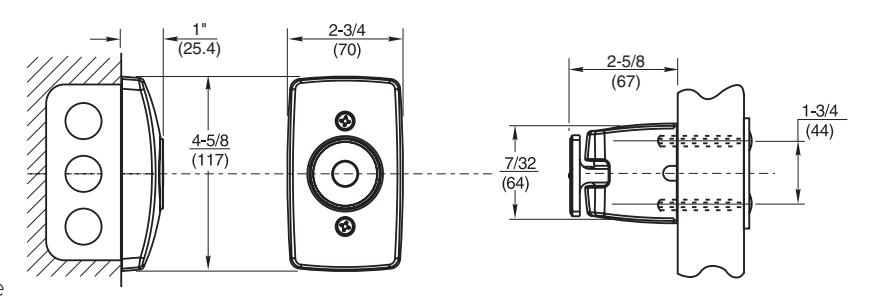

MODEL 997M

Application

• • Wall mount
• • Concealed wiring
• • Shipping weight: 2 lbs. (0.9 kg)

Features

• • Total projection: 2-5/8" (67mm)
• • Mounting requirements: 2" x 4" x 1-3/4" (51 x 102 x 45mm) outlet box
• • Wall must be properly reinforced and outlet box adequately fastened
• • 2 year limited warranty

Compliance

• • ANSI/BHMA A156.15, Grade 1
• • ANSI/C00011

Electrical Data

• Voltage and current: 120VAC, 60Hz., .020 amp 24VAC/DC, 60Hz., .020 amp 12VDC, .040 amp

• For 50-55 lbs. of holding force, specify voltage 120VAC, 60Hz .017 amp 24VAC, 60Hz .080 amp

24VDC, .068amp 12VDC, .180amp

MODEL 998M

Application

• • Wall mount
• • Concealed wiring
• • Shipping weight: 2-1/2 lbs. (1.1 kg)

Features

• • Total projection: 3-5/8" (92mm)
• • Mounting requirements: 2" x 4" x 1-3/4" (51 x 102 x 45mm) outlet box
• • Wall must be properly reinforced and outlet box adequately fastened
• • 2 year limited warranty

Compliance

• • ANSI/BHMA A156.15, Grade 1
• • ANSI/C00011

Electrical Data

• Voltage and current: 120VAC, 60Hz., .020 amp 24VAC/DC, 60Hz., .020 amp 12VDC, .040 amp

• For 50-55 lbs. of holding force, specify voltage 120VAC, 60Hz .017 amp 24VAC, 60Hz .080 amp 24VDC, .068amp 12VDC, .180amp

ELECTROMAGNETIC DOOR HOLDER/RELEASES

MODEL 999M

Application

• • Universal mounting
• • Shipping weight: 2-3/4 lbs. (1.2 kg)

Features

• • Base plate; concealed wiring
• • Total projection: 4-3/8" (111mm)
• • Mounting requirements: 2" x 4" (51 x 102mm) outlet box; 4" (102mm) square box; 4" (102mm) octagonal box
• • Wall must be properly reinforced and outlet box adequately fastened
• • 2 year limited warranty

Compliance

• • ANSI/BHMA A156.15, Grade 1
• • ANSI/C00011

Electrical Data

• Voltage and current: 120 VAC, 60 Hz., .020 amp 24 VAC/DC, 60 Hz., .020 amp 12 VDC, .040 amp

• For 50-55 lbs. of holding force, specify voltage 120VAC, 60Hz .017 amp 24VAC, 60Hz .080 amp 24VDC, .068amp 12VDC, .180amp

SCHEMATICS

ELECTROMAGNETIC DOOR HOLDER/RELEASES

SCHEMATICS

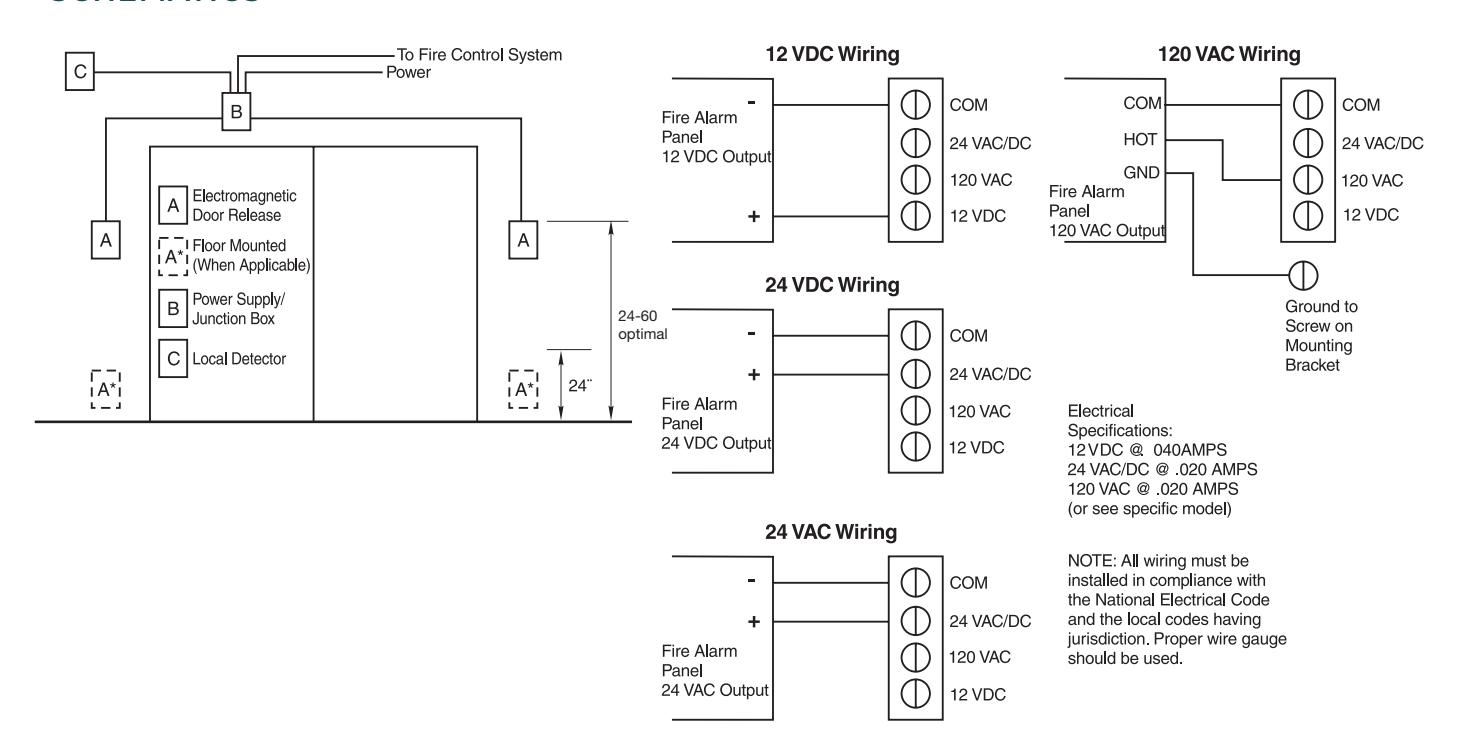

Operation Narrative

Doors are to be normally held open. The electromagnetic door releases will be energized with the voltage shown (at right) in the hardware set for this opening. Power shall be controlled by the fire control system. It will interrupt the power if alarmed, causing the doors to be released, thus allowing the door closers to close the doors. When power is restored the magnets will re-energize, permitting the doors to be manually returned to their held open position.

ACCESSORIES

ELECTROMAGNETIC DOOR HOLDER/RELEASES

ACCESSORIES

1-1/2" (38mm) Extension (for use only with Models 997M, 998M & 994M) Mounts behind wall cover.

XK996M Part# 996631M-*

Base Unit Armature Extension Mounts between armature and contact plate. Part# 900

Cannot be used with model 994M

994M Swivel Armature (cannot be used with extension spacers) Part# 900-3

Armature Extension 90° Bend Part# 900-Z

Must be used with 900 base unit. Those two pieces will extend armature 3" longer than the contact plate.

Spacer lengths – must be used with 900 base

900-700

For dimensions, see chart below

900-600

900-50

900-400

900-300

900-200

900-100

Extension pieces must be used in conjunction with 900 Base Unit

Part	Length
900-700	7"
900-600	6"
900-500	5"
900-400	4"
900-300	3"
900-200	2"
900-100	1"
900-75	3/4"
900-50	1/2"

*specify finish

INDUSTRIAL USE

ELECTROMAGNETIC DOOR HOLDER/RELEASES

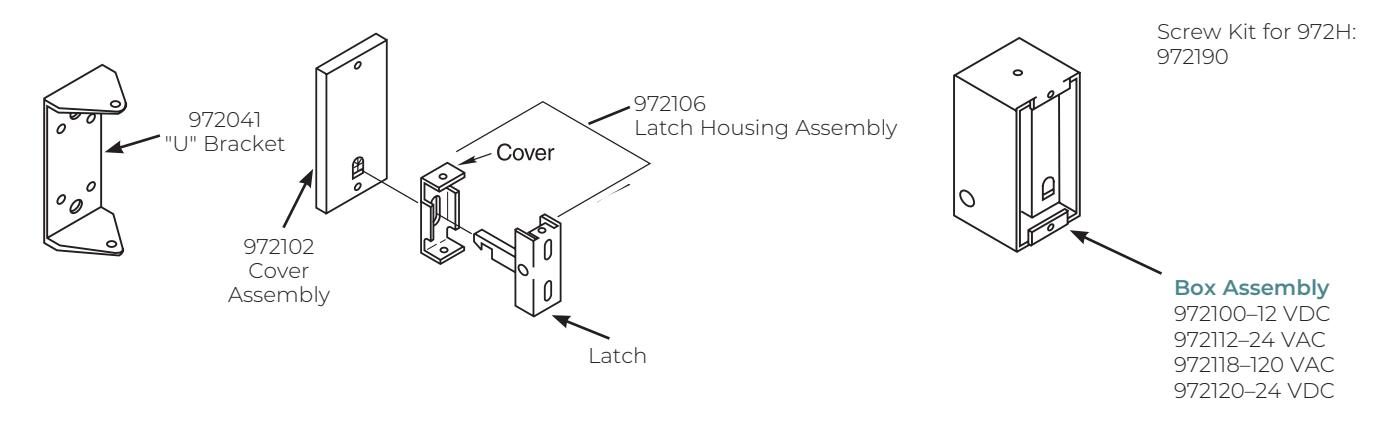

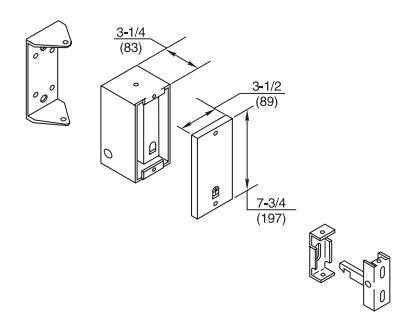

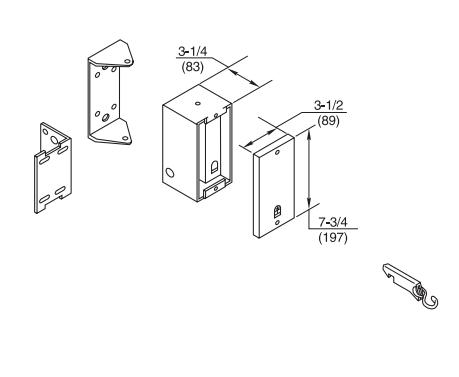

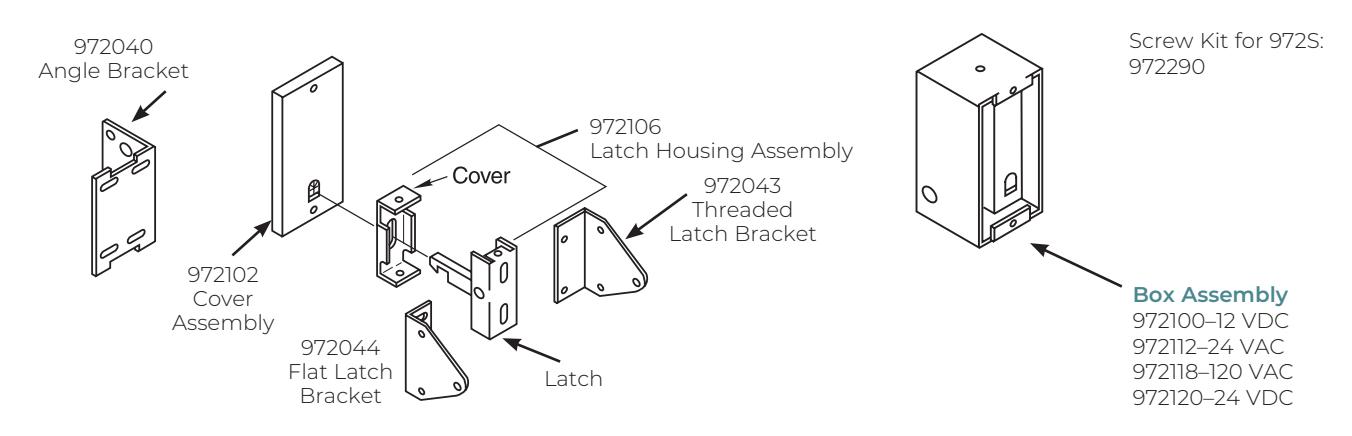

MODEL 972

The Norton Rixson 972 Industrial Door Release is listed by Underwriters' Laboratories as a substitute for fusible links in such applications as overhead rolling doors, guillotine doors, fire dampers and self-closing windows. These heavy-duty units provide automatic release when triggered by a smoke detector, manual pull station, test button on unit, or other electrically operated switch.

Application

• • 972H for swinging doors
• • 972S for sliding doors
• • 972U for overhead doors
• • Specify model number and voltage

Features

• • Shipping weight: 5 lbs. (2.3 kg)
• • 2 year limited warranty

Compliance

• ANSI/C00041

Electrical Data

• • Voltage and current: 120VAC, 60Hz., .150 amp 24VAC, 60Hz., .150 amp 24VDC, .08 amp 12VDC, .08 amp
• • Holding force 75 lbs

Code Listings:

• • UL-cUL listed
• • CAL FIRE, 3550-0047:0013

972H for Swinging Doors

972S for Sliding Doors

972U for Overhead Doors

HOW TO ORDER

ELECTROMAGNETIC DOOR HOLDER/RELEASES

SERIES

980M Floor Mounted

981M Floor Mounted Back to Back Doors 989 Low Projection Wall Mounted 990M Low Projection Wall Mounted 991M Hazardous Location Wall Mounted

993M High Hold Wall Mounted 9930M High Hold Floor Mounted

994M Wall Mounted Adjustable Armature 996M Surface Mounted

997M Wall Mounted 998M Wall Mounted

999M Universal Wall Mounted 972H Industrial Swing Door Holder 972S Industrial Sliding Door Holder 972U Industrial Overhead/Rolling Door

VOLTAGE

120VAC 24VAC/DC 12VDC

Note:

Tri-Volt (120VAC, 24VAC/DC, 12VDC) is standard on models: 980M, 981M, 989, 990M, 994M, 996M, 997M, 998M and 999M. For 50-55 lbs of holding force on these models, specify model x 120VAC, 24VAC, 24VDC or 12VDC when ordering.

FINISHES

ANSI/BHMA (US)	Descripton
689 (US28)	Aluminum, painted
690 (US20)	Dark bronze, painted
691 (US10)	Light bronze, painted
693	Black, painted
696 (US4)	Gold , painted

ELECTROMAGNETIC DOOR HOLDER/RELEASES

USED WITH MODELS 980M, 981M

Floor Portion

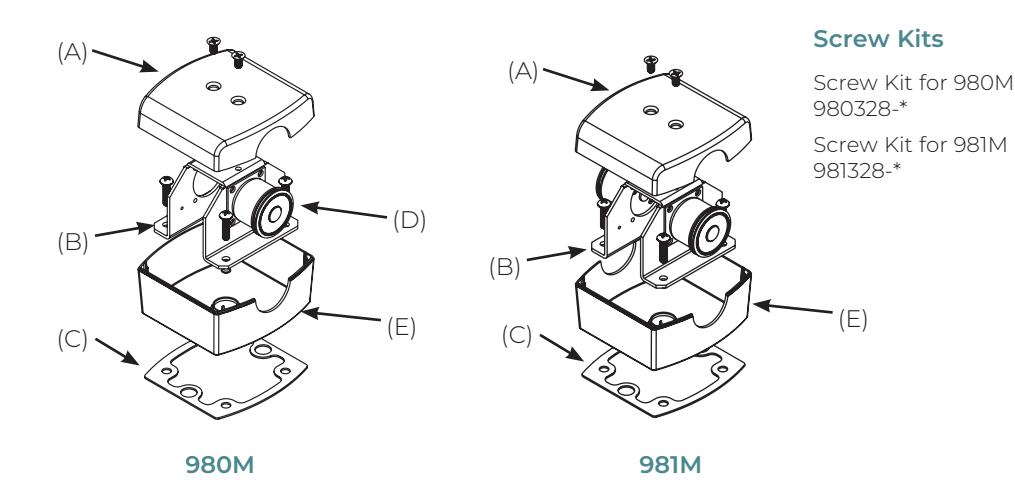

• (A) Magnet Housing Cover 980311M-* / 981311M-*
• (B) Magnet Support Bracket 981309
• (C) Gasket 980095M
• (D) Tri-Volt Magnet Assembly ^996219-3V
• (E) Magnet Housing Base 980312M-* / 981312M-*

USED WITH MODELS 980M, 981M, 990M, 991M, 996M, 997M

Door Portion

(A) Backup Plate

• (B) Door Armature Assembly 997510M-*
• (C) Door Plate

Core or Composite Type Wood Doors

Note: backup plate and door plate are included in magnet screw kit

^{^} For voltages other than Tri-Volt, contact factory

^* Specify finish

ELECTROMAGNETIC DOOR HOLDER/RELEASES

USED WITH MODEL 991M

Wall Portion

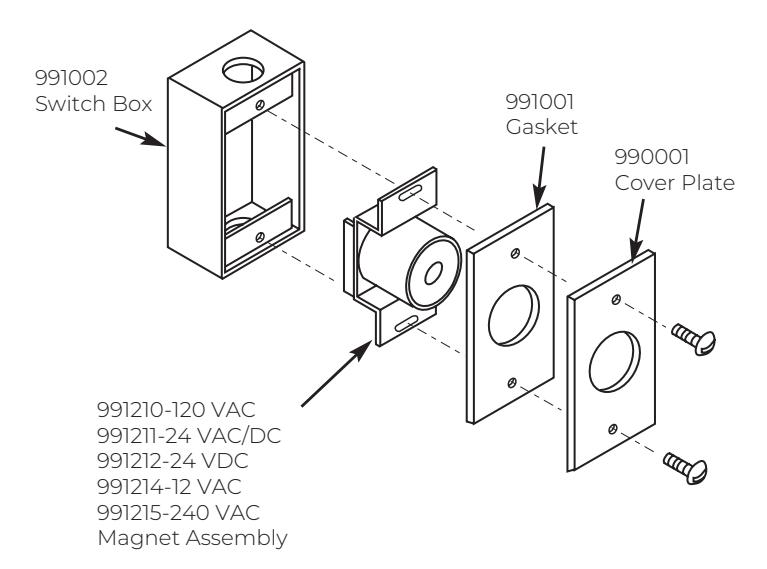

Screw Kit for 991M: 990300-*

USED WITH MODEL 993M/9930M

^* Specify finish

ELECTROMAGNETIC DOOR HOLDER/RELEASES

USED WITH MODELS 990M, 989

Wall Portion

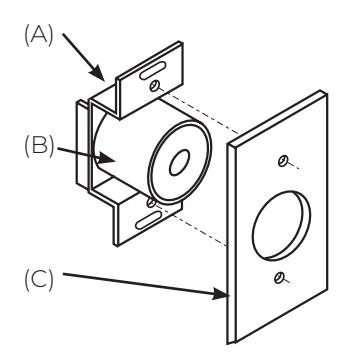

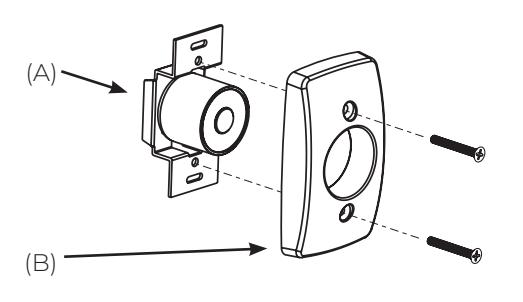

• (A) Magnet Bracket 990002
• (B) Tri-Volt Magnet Assembly ^996219-3V
• (C) Cover Plate 990001

Screw Kits Screw Kit for 990M 990300-*

USED WITH MODELS 998M, 999M

Door Portion

• (A) Backup Plate
• (B) Door Armature 998512M-*
• (C) Door Plate

Screw Kits See Screw Kit for 998M 998303-*

Note: backup plate and door plate are included in magnet screw kit

USED WITH MODEL 989

Door Portion

(A) Door Armature Attachment screw included in Kit. 444FM

• ^ For voltages other than Tri-Volt, contact factory
• * Specify finish

ELECTROMAGNETIC DOOR HOLDER/RELEASES

USED WITH MODEL 994M

Door Portion

• (A) Backup Plate
• (B) Door Armature Assembly 994510M-*
• (C) Door Plate
• (D) Swivel Armature 900-3*

Note: backup plate and door plate are included in magnet screw kit

USED WITH MODELS 994M, 997M, 998M

Wall Portion

• (A) Tri-Volt Magnet Assembly 998369-3V
• (B) Wall Cover 998315M-*

Screw Kits

Screw Kit for 994M/997M 998300-*

Screw Kits Screw Kit for 998M 998303-*

USED WITH MODEL 996M

Wall Portion

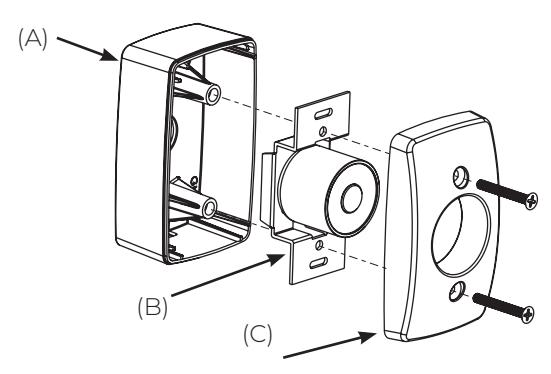

• (A) Surface Mounting Box 996501M-*
• (B) Tri-Volt Magnet Assembly 996369-3V
• (C) Wall Cover 998315M-*

Screw Kits Screw Kit for 996M

996325-*

^ For voltages other than Tri-Volt, contact factory

* Specify finish

ELECTROMAGNETIC DOOR HOLDER/RELEASES

USED WITH MODEL 999M

Wall Portion

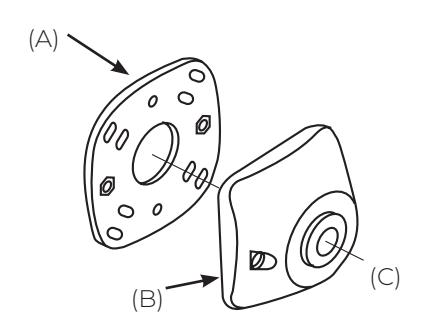

• (A Base Plate 999105
• (B) Wall Cover 999055-*
• (C) Tri-Volt Magnet Assembly 996219-3V

Screw Kits

Screw Kit for 999M 999318-*

^{^} For voltages other than Tri-Volt, contact factory

^* Specify finish

ELECTROMAGNETIC DOOR HOLDER/RELEASES

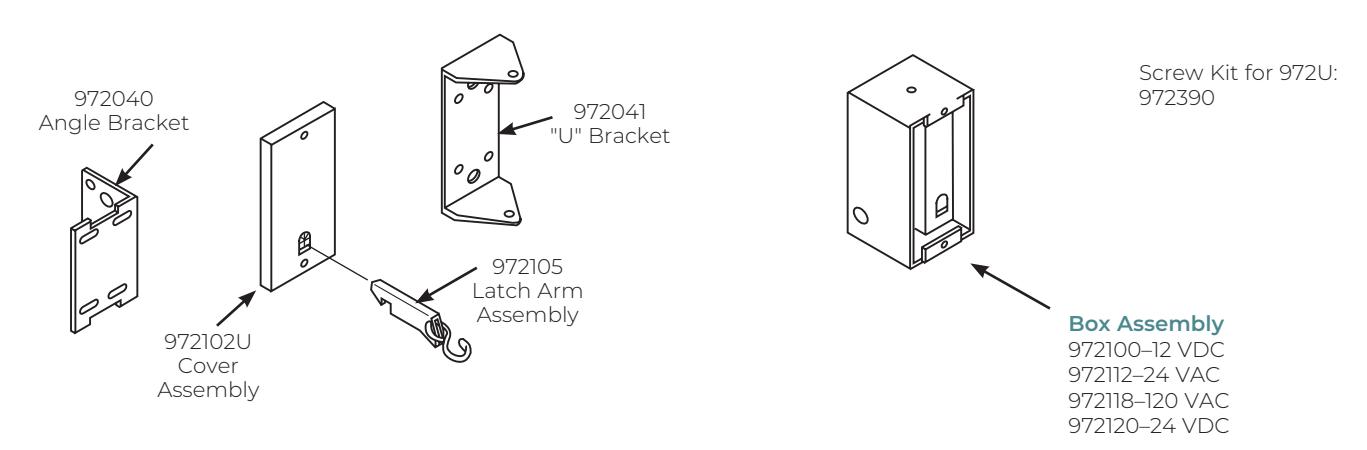

USED WITH MODEL 972H

USED WITH MODEL 972S

USED WITH MODEL 972U

*specify finish

The ASSA ABLOY Group is the global leader in access solutions. Every day, we help billions of people experience a more open world.

ASSA ABLOY Opening Solutions leads the development within door openings and products for access solutions in homes, businesses and institutions. Our offering includes doors, frames, door and window hardware, mechanical and smart locks, access control and service.

Since 1880, Norton Rixson door controls have been an integral part of schools, hospitals and businesses around the globe. When you need products and people that perform at the highest level, rely on Norton Rixson – From Open to Close.

NORTON RIXSON | WWW.NORTONRIXSON.COM

3000 Highway 74 East | Monroe, NC 28112 | Tel: 1 877 974 2255

ASSA ABLOY OPENING SOLUTIONS DOOR SECURITY SOLUTIONS CANADA | www.assaabloydss.ca

160 Four Valley Drive | Vaughan, Ontario, L4K 4T9 Canada | Tel: 800 461 3007
