Norton Rixson EML19 & EFML19 Intermediate Pivot Template_IP50075

Open the original PDF document

1. Do not scale drawing.
2. Dimensions are given in inches (mm).
3. Pivot drilled for 1/4-20 x 3/4" FHMS or #14 x 1-1/2" FHWS.
4. Right hand shown.

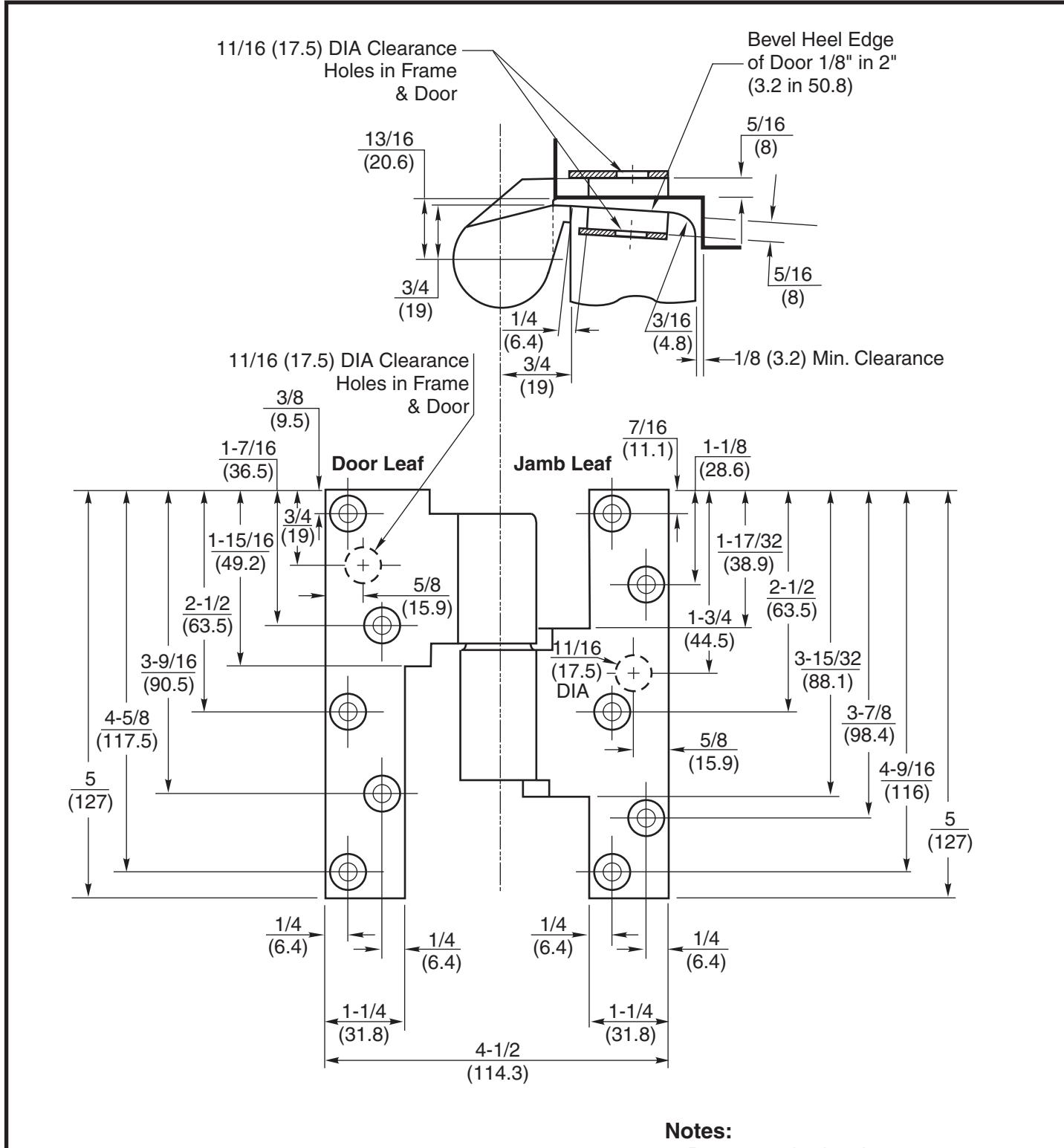

Intermediate Pivot EML19 & EFML19

ASSA ABLOY

TEMPLATE NUMBER IP50075

3 01/22

Approved 2023-12-15
