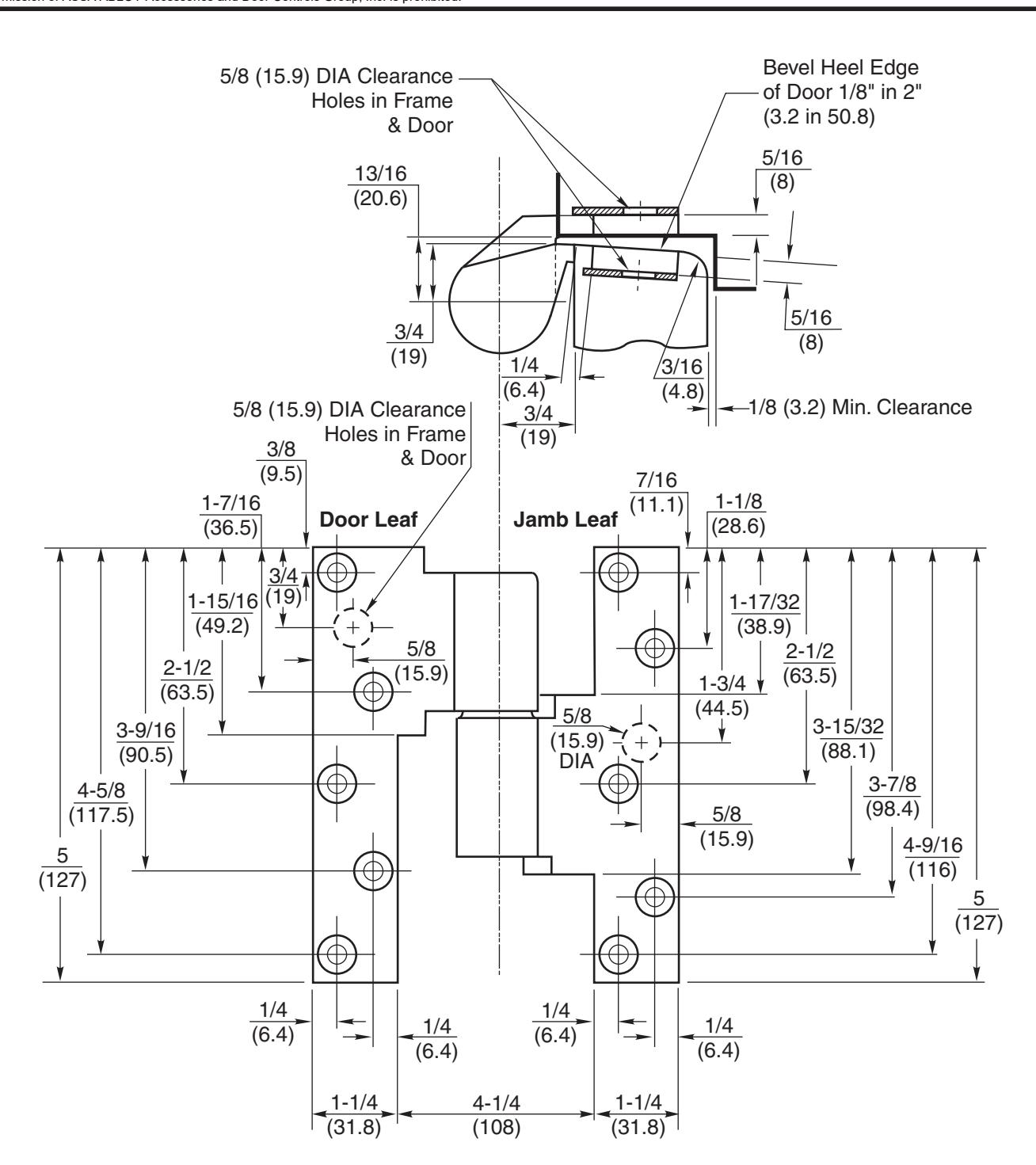

Notes:

• 1. Do not scale drawing.
• 2. Dimensions are given in inches (mm).
• 3. Pivot drilled for 1/4-20 x 3/4" FHMS or #14 x 1-1/2" FHWS.
• 4. Right hand shown.

Interme	di	ate	Piv	ot/
EML19	&	EFI	ML.	19

RIXSON ASSA ABLOY

www.rixson.com

TEMPLATE NUMBER IS-EML19

REV DATE 05-24

Approved 2024-05-15

EML19 & EFML19 Side Jamb Pivot Handed 3/4" Offset Installation Instructions

IMPORTANT: Prepare door and frame per instruction on reverse side. Door must be hung before the pivot is installed. The EML19 pivot cannot take the downward load (weight) of the door. The door weight must be carried by a floor closer, bottom pivot or additional EML19 side jamb pivots. s

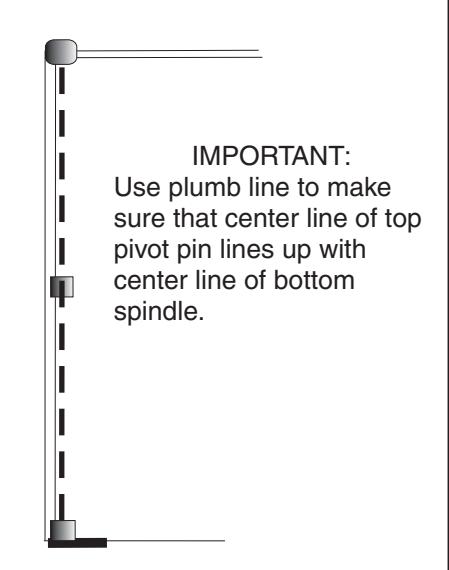

ALIGNMENT: To insure proper installation, the centerline of the side jamb pivot must be in line with the centerline of the top and bottom pivot points. See illustration.

PIVOT INSTALLATION:

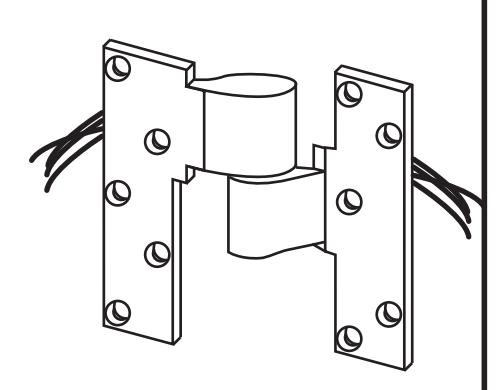

NOTE: Door and jamb portion of EML19 & EFML19 are assembled in the factory. They cannot be separated and must be installed as assembled.

Open door and connect wires on the jamb portion to the wires in the frame. Push the wires back into the frame as the jamb portion is set into place in the frame mortise. Install the 5 jamb screws.

Connect the wires on the door portion to the door wires. Push the wires back into the door as the door portion is set into place in the door mortise. Install 5 door screws.

Test the electrical installation for proper operation of the wired door devices.

ELECTRICAL RATINGS:

Low voltage only

Current ratings each wire: 2 amp. continuous.

How To Determine Hand of Door

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

Intermediate Pivot EML19 & EFML19

ASSA ABLOY RIXSON ®

www.rixson.com

REV 3

IS-EML19 TEMPLATE NUMBER DATE

05-24
