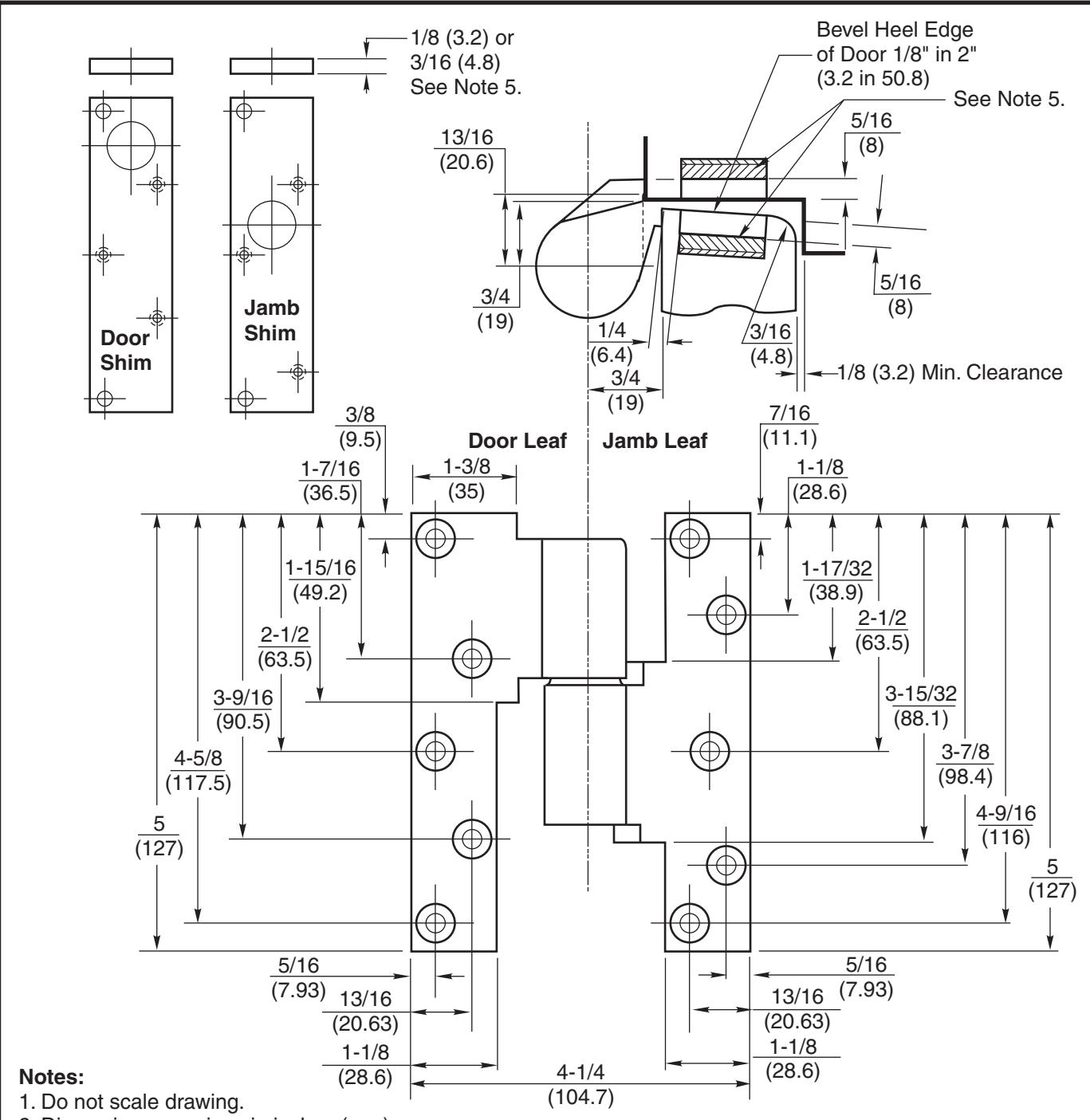

Norton Rixson EM19U Intermediate Pivot, 3, 4 Offset A Template_IP50020A

• 2. Dimensions are given in inches (mm).
• 3. Pivot drilled for 5/8" x 1/4-20 FHMS or #14 x 1-1/2" FHWS.
• 4. Right hand shown.
• 5. For hollow metal use 1/8" (3.2) shims (by Norton Rixson)

Door: 652001 Jamb: 652003

For aluminum use 3/16" (4.8) shims (by Norton Rixson)

Door: 652002 Jamb: 652004

6. See templates IP50020B or IP50020C for door and frame prep.

NORTON RIXSON ASSA ABLOY

TEMPLATE NUMBER IP50020A

3 01/22
