Norton Rixson EH345 Top Pivot, Center Hung Installation Instructions_IS-EH345

Installation Instructions:

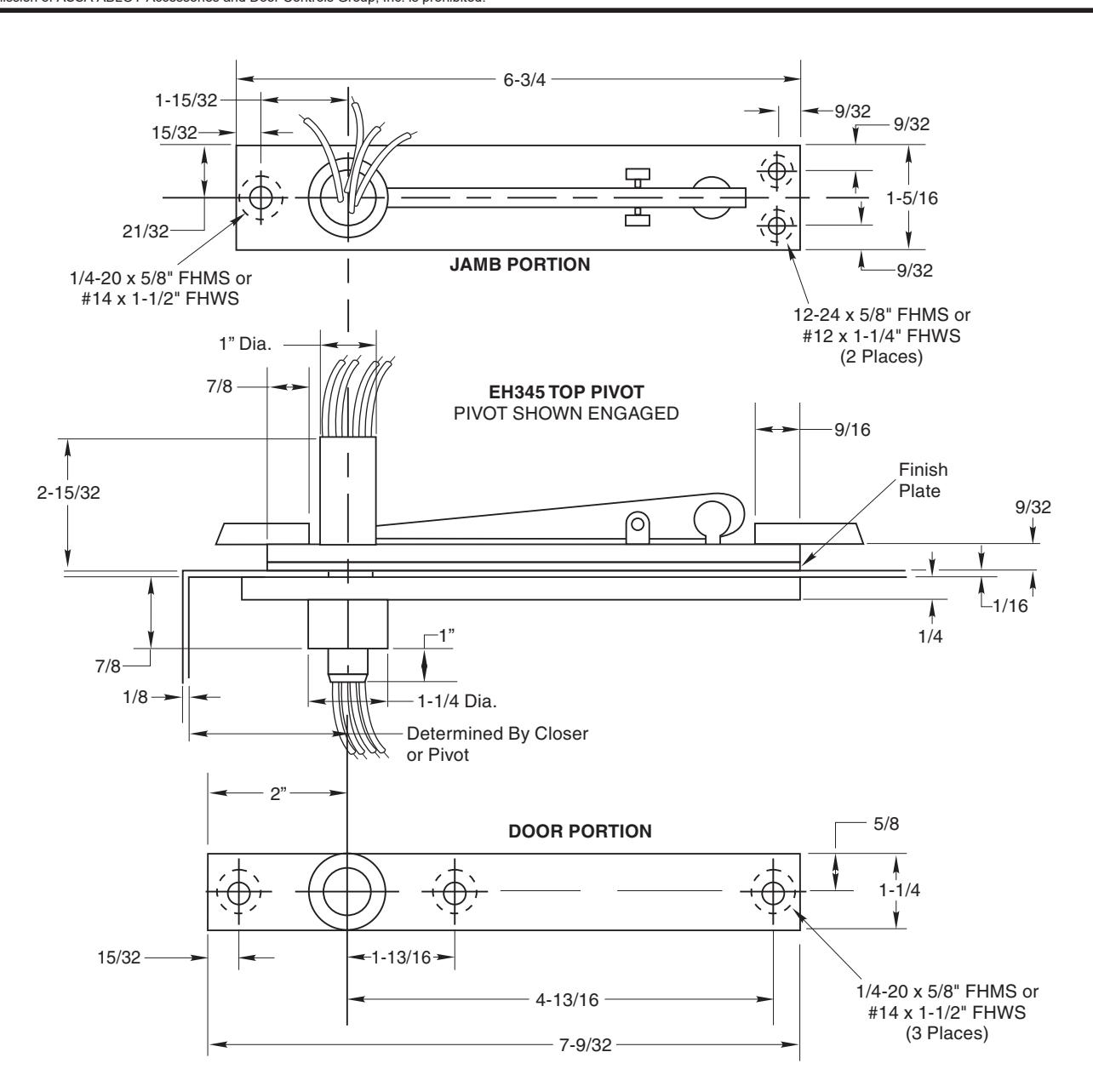

• 1. Prepare door and frame per details shown.
• 2. To insure proper operation of door, the centerline of the top pivot pin must be straight and plumb with bottom spindle.
• 3. Connect wires in door frame and install jamb portion with pin retracted.
• 4. Place door on bottom pivot and raise door so that its top is within two feet of the top jamb.
• 5. Push wires through door portion bearing hole and connect wires in door.
• 6. Install door portion.
• 7. Raise door to vertical position while carefully pushing wires down inside door.

• 8. Engage top pivot pin by turning adjusting screw clockwise when door portion is in alignment with the jamb portion.
• 9. Test the electrical installation for proper operation of the wired door devices.

Notes:

• 1. Do not scale drawing.
• 2. All dimensions are in inches. Conversion to metric = inch x 25.4.
• 3. Four wires #22 AWG circuits, rated 2 amps continuous. Low voltage only. Electrical Ratings:

Top Pivot EH345 Center Hung

ASSA ABLOY RIXSON ®

www.rixson.com

IS-EH345 TEMPLATE NUMBER DATE

REV 3

05-24
