Norton Rixson EH345 Electrified, Center Hung Top Pivot for Power Transfer Template_TP40252

Open the original PDF document

View PDF

Notes:

  • 1. Do not scale drawing.
  • 2. All dimensions are in inches. Conversion to metric = inch x 25.4.
  • 3. Electrical Ratings: Two types of wiring are offered:
    • Specify EH345-2 for two-wire #18 AWG circuits, rated 3 amps continuous. Low voltage only.
    • Specify EH345-4 for four-wire #24 AWG circuits, rated 2 amps continuous. Low voltage only.

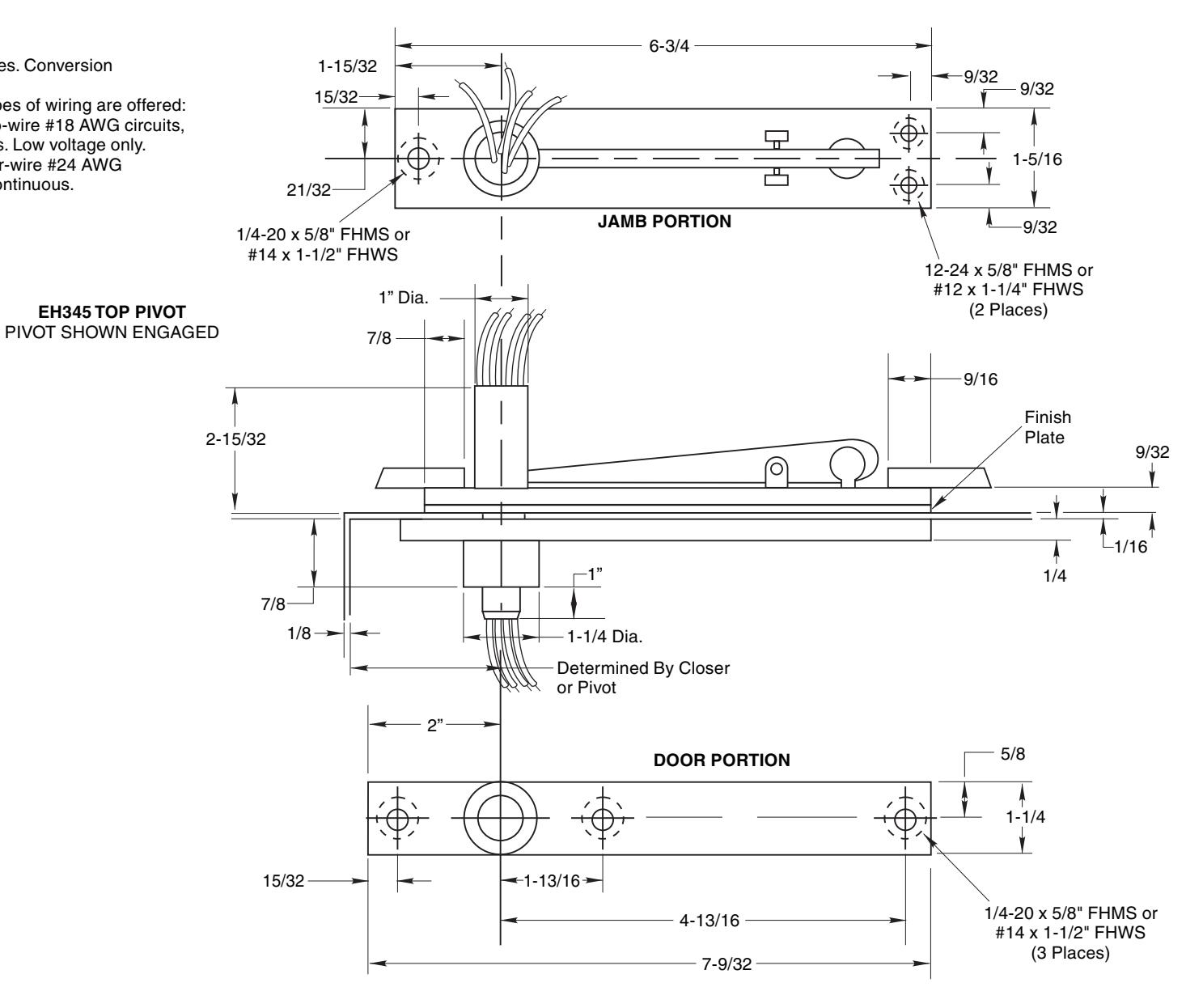

Electrified Center Hung Top Pivot for Power Transfer EH345

NORTON

ASSA ABLOY

TEMPLATE NUMBER TP40252

3 01/22

Approved 2023-12-15
