Norton Rixson EH340 Top Pivot, Center Hung, with Concealed Wires Template_TP40230

Open the original PDF document

View PDF

Notes:

  • 1. Do not scale drawing.
  • 2. All dimensions are in inches. Conversion to metric = inch x 25.4.
  • 3. <u>Electrical Ratings:</u> Two types of wiring are offered:
    • Specify EH340-2 for two-wire #18 AWG circuits, rated 3 amps continuous. Low voltage only.
    • Specify EH340-4 for four-wire #24 AWG circuits, rated 2 amps continuous. Low voltage only.

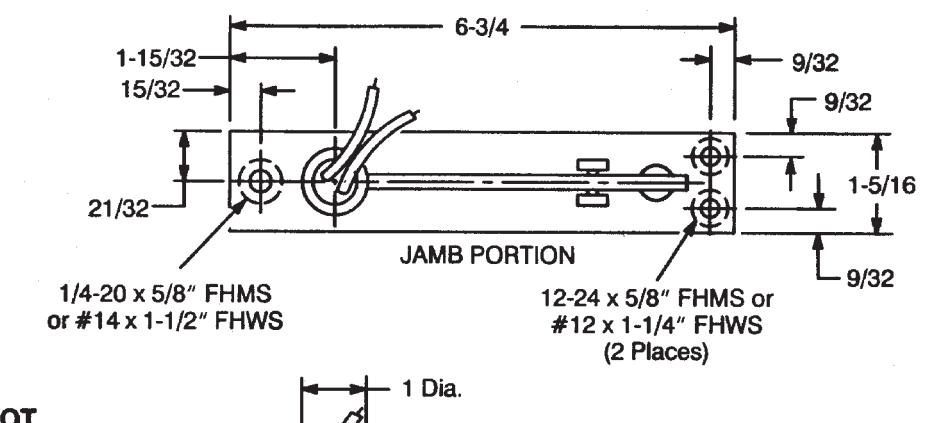

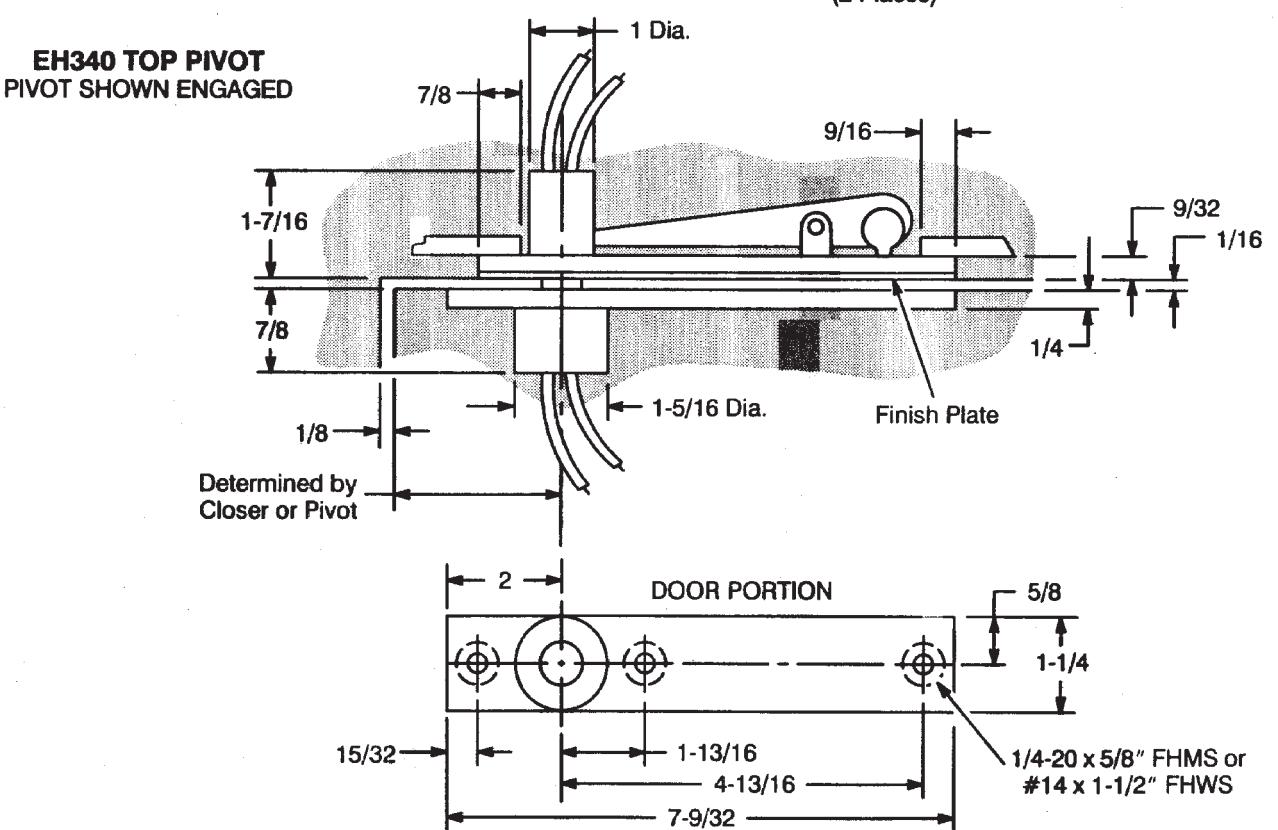

EH340 Top Pivot Center Hung With Concealed Wires

NORTON RIXSON ASSA ABLOY

TEMPLATE NUMBER

TP40230

01/22
