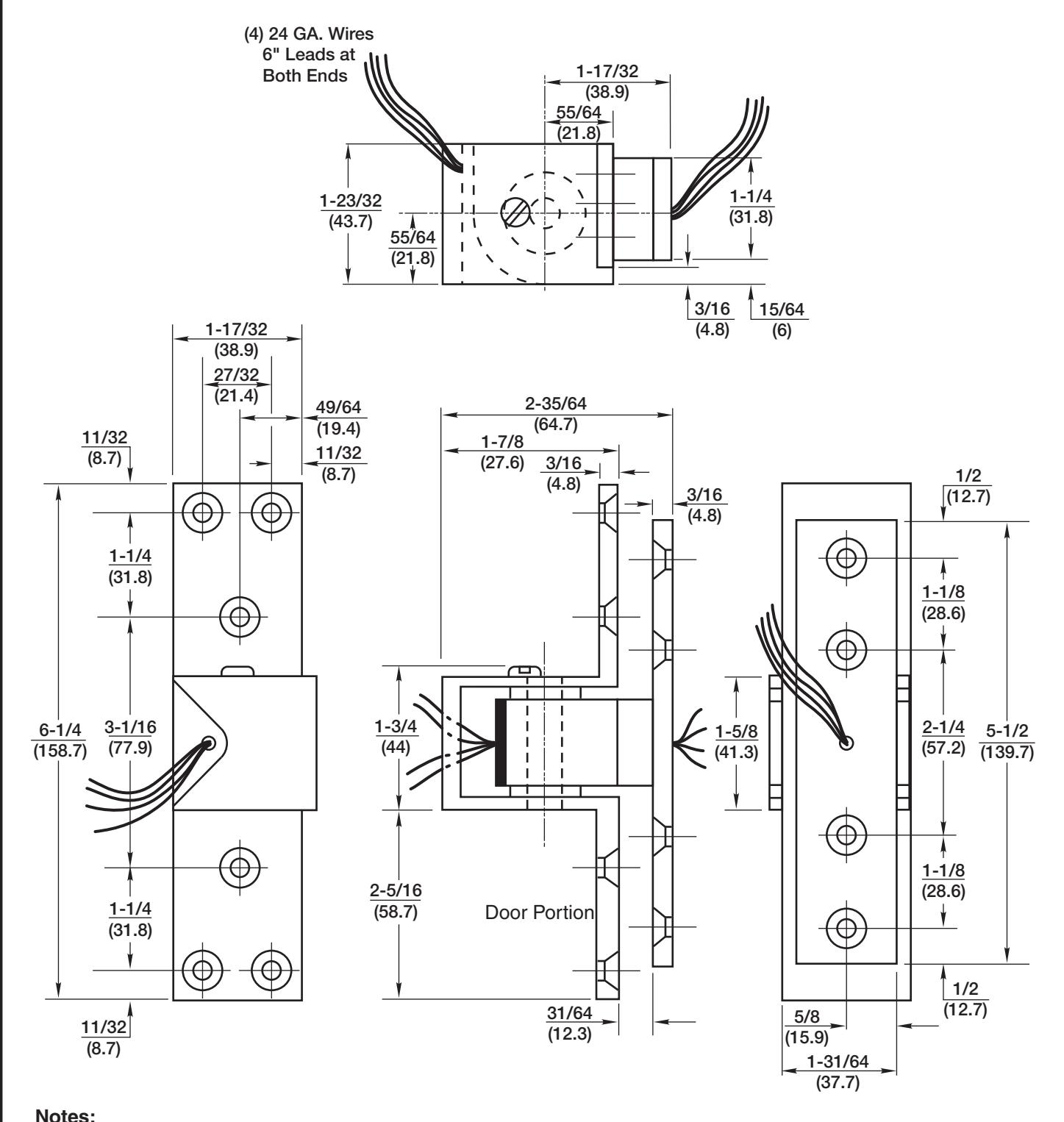

Norton Rixson EF519 Pocket Pivot Template_IP50510

Notes:

• 1. Do not scale drawing.
• 2. Dimensions are given in inches (mm).
• 3. Right hand shown.
• 4. Machine Screw Size #12-24 x 3/4 FHMS Wood Screw Size #12 x 1-1/2 FHWS

	RIXSON®
EF519 Pocket Pivot	ASSA ABLOY
	www.rixson.com
	TEMPLATE NUMBER	REV	DATE
	IP50510	3	05-24

• A. Open Pivot 90° to expose screw holes and attach door leaves of all pivots required to door using appropriate fasteners

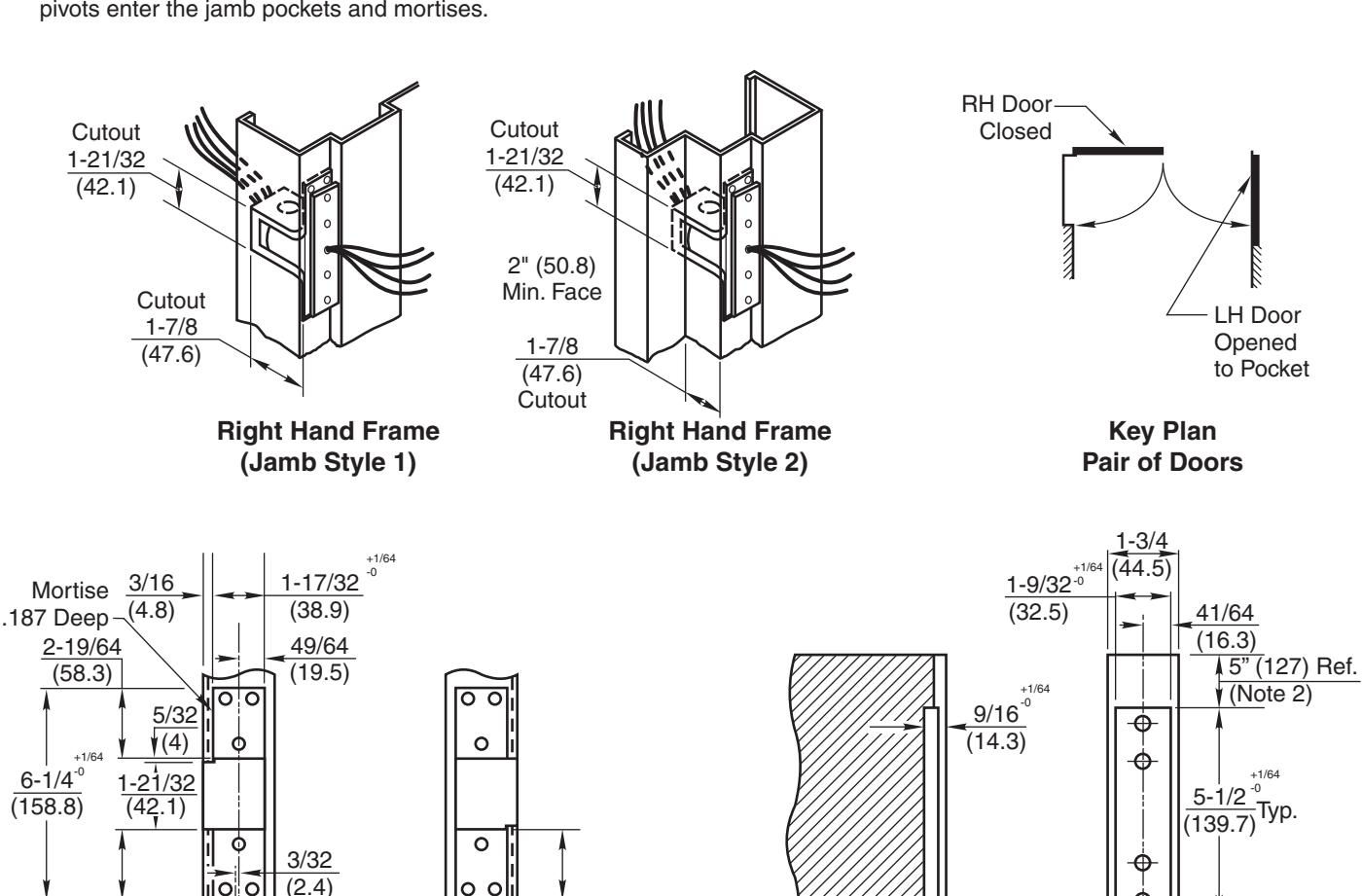

• B. Install door and pivot assembly to jamb by supporting door at the proper height and sliding toward jamb so that pivots enter the jamb pockets and mortises.
• C. With door properly supported and opened approximately 60° or more to expose screw holes. Attach pivot jamb leaf to jamb using appropriate fasteners.

2-19/64

(58.3)

Left Hand

Mortise Detail, Steel Frame

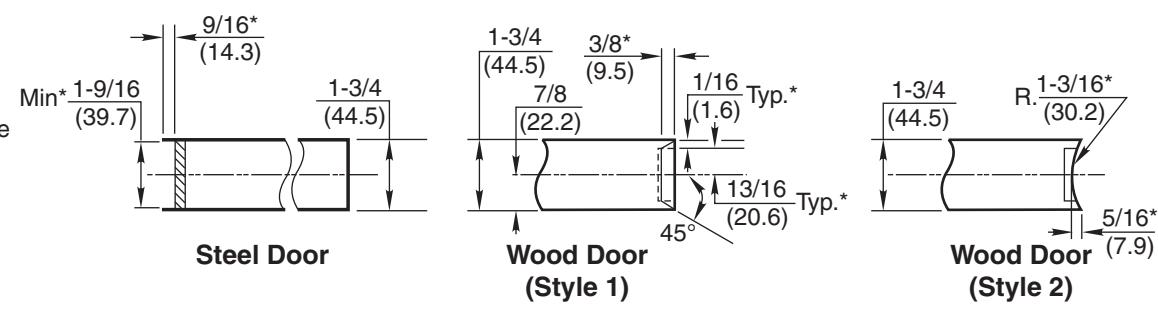

Dimensions Same for Steel Door Door Mortise Detail

Wood Application Shown

Notes:

1. * Prepare full length of door to these dims.

2-19/64

(58.3)

7/8

(22.2)

C of Door

Right Hand

• Use standard spacing to suit size of door.
• 3. Use 1 pivot for every 30" (762) of door height.
• Use 1 pivot for every 90 lbs. of door weight.

Door Jamb Clearance 7/64 (2.8) - Hinge Side

EF519 Pocket Pivot

RIX	SC	N
ASSA	ABL	.OY

www.rixson.com

TEMPLATE NUMBER

05-24

IP50510 3 05
