Norton Rixson EF519 Pocket Pivot Installation Instructions_IS-EF519

• A. Open Pivot 90° to expose screw holes and attach door leaves of all pivots required to door using appropriate
• B. Install door and pivot assembly to jamb by supporting door at the proper height and sliding toward jamb so that
• C. With door properly supported and opened approximately 60° or more to expose screw holes. Attach pivot jamb leaf to jamb using appropriate fasteners.

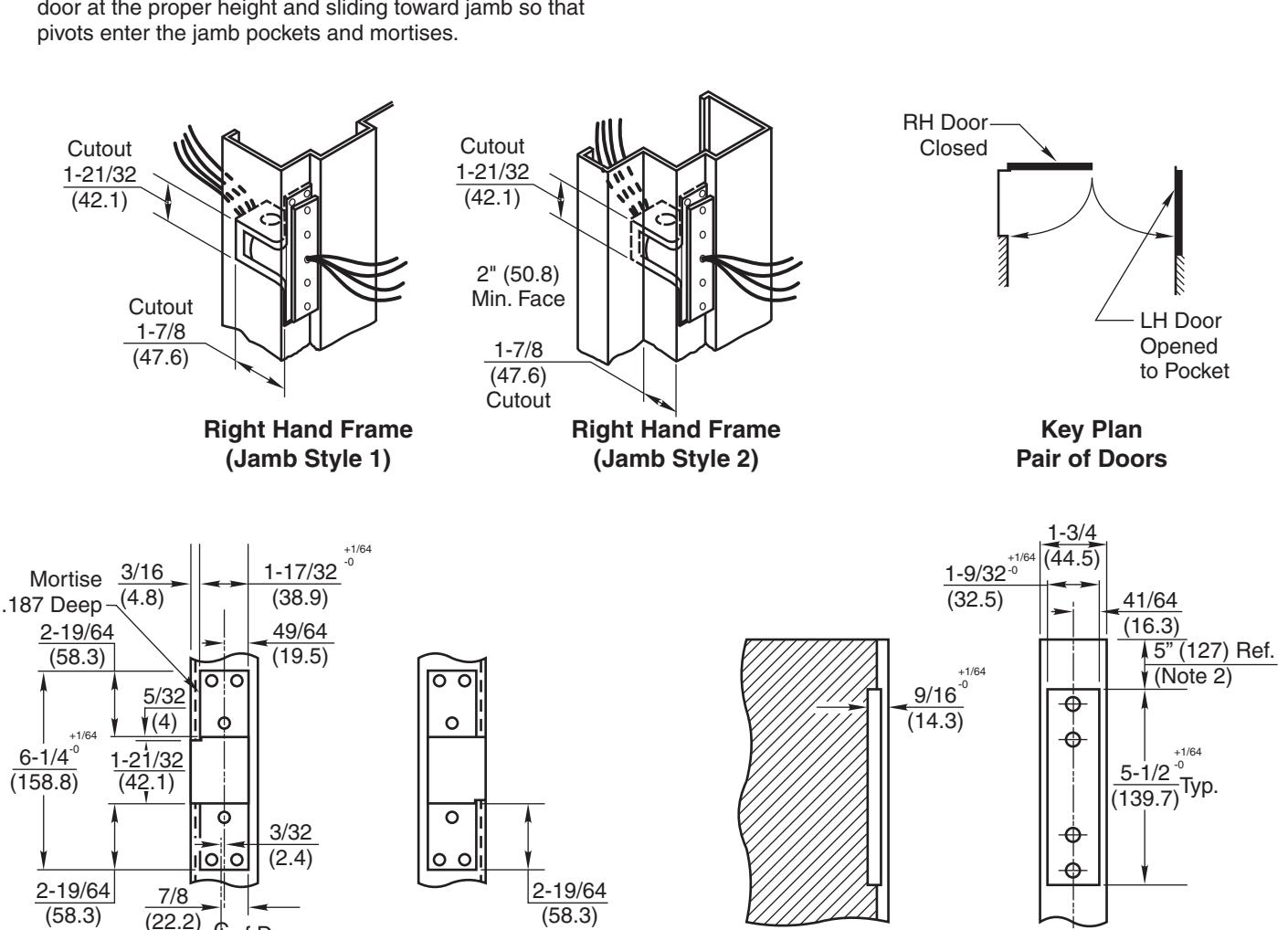

Mortise Detail, Steel Frame

Left Hand

C of Door

Right Hand

Notes:

• 1. * Prepare full length of door to these dims.
• 2. Use standard spacing to suit size of door.
• 3. Use 1 pivot for every 30" (762) of door height.
• 4. Use 1 pivot for every 90 lbs. of door weight.

Door Jamb Clearance 7/64 (2.8) - Hinge Side

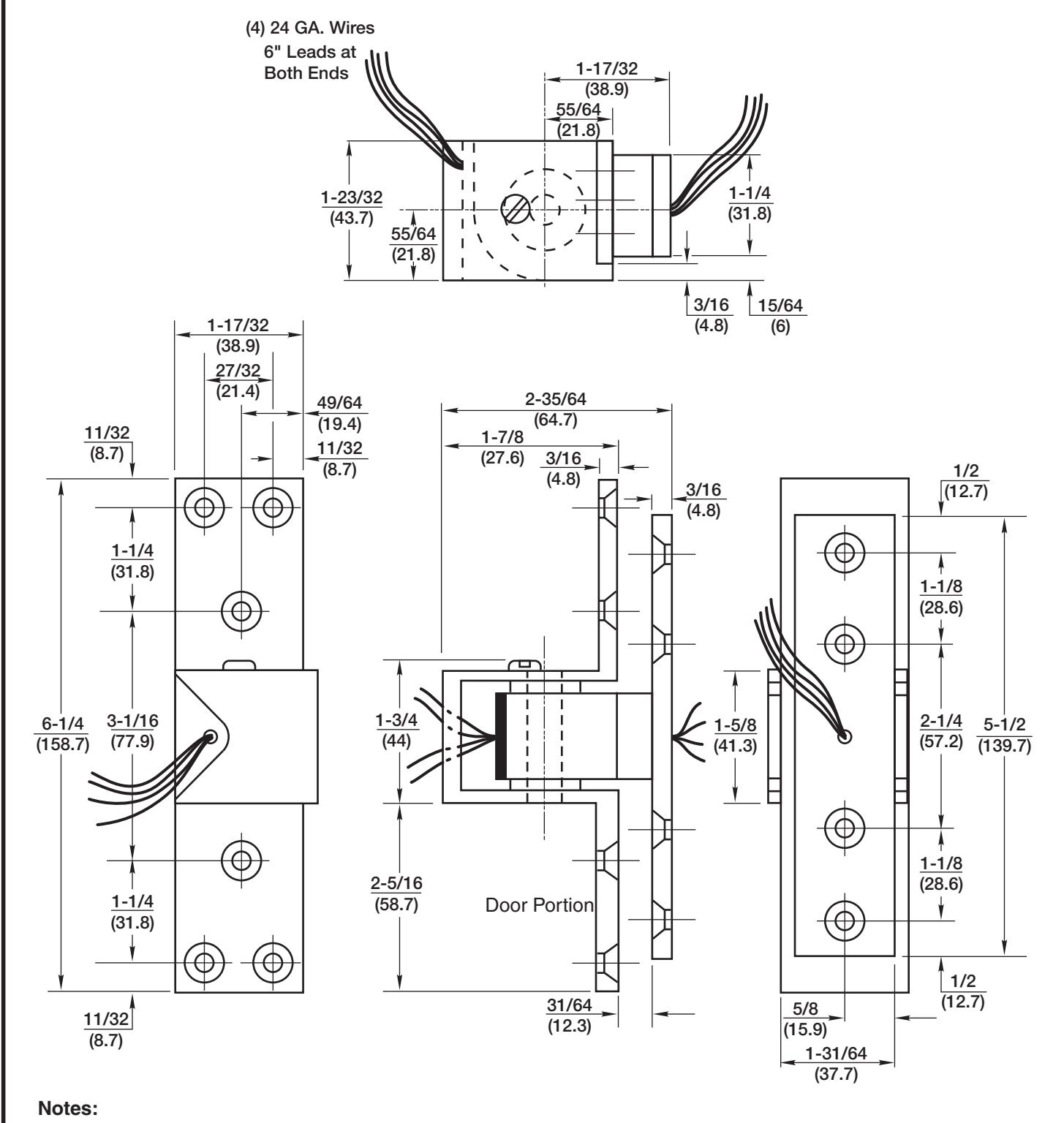

EF519 Pocket Pivot

RIXSON ASSA ABLOY

www.rixson.com

TEMPLATE NUMBER IS-EF519

Wood Application Shown

Dimensions Same for Steel Door

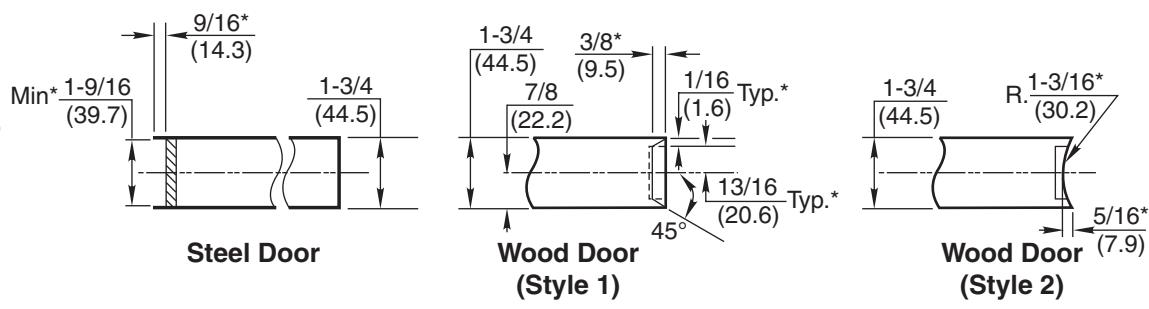

Door Mortise Detail

REV DATE 3 05-24

Approved 2024-05-15

• 1. Do not scale drawing.
• 2. Dimensions are given in inches (mm).
• 3. Right hand shown.
• 4. Machine Screw Size #12-24 x 3/4 FHMS Wood Screw Size #12 x 1-1/2 FHWS

EF519 Pocket Pivot	RIXSON®
	ASSA ABLOY
	www.rixson.com
	TEMPLATE NUMBER	REV	DATE
	IS-EF519	3	05-24
