CATALOG

DOOR CONTROL ACCESSORIES

NORTON

ASSA ABLOY

Experience a safer and more open world

Special Condition Accessories and Installation Aids to Give the Owner the True Benefit of Using Floor Closers and Pivots

TABLE OF CONTENTS

DOOR CONTROL ACCESSORIES

Caster

10600 Single Roller Caster
10602 Double Roller Caster	3
Applied Stop
60131 Lock Edge Applied Stop (center hung doors)	3
Special Cement Cases
1101 Cement Case (use between 2 slabs)
79501 Cement Case (use with shallow floors)
25204 Twin Cement Case (1-7/8" Mullion for back-to-back closers)	5
25304 Twin Cement Case (2" Mullion for back-to-back closers)	5
Cover Pans
846 Cover Pan for 27 closer	6
3910 Cover Pan for L27 closer	6
2237 Cover Pan for 28 closer x 554 flat arm	6
841 Cover Pan for 28 closer, centering arm	6
841B Cover pan for H28 closer
2637 Cover Pan for 51 closer	6
2807D Cover Pan for 53 closer	6
2807B Cover Pan for 50 closer x 554 flat arm	6
2807A Cover Pan for 50 closer, centering arm	6
Installation Tools
2604/2608 Alignment Tools	7
1859001 27/28/30/40 Quickspotter	7
1859501 Q27 Quickspotter
1855051 50/51/53 Ouickspotter	7

CASTERS, APPLIED STOPS

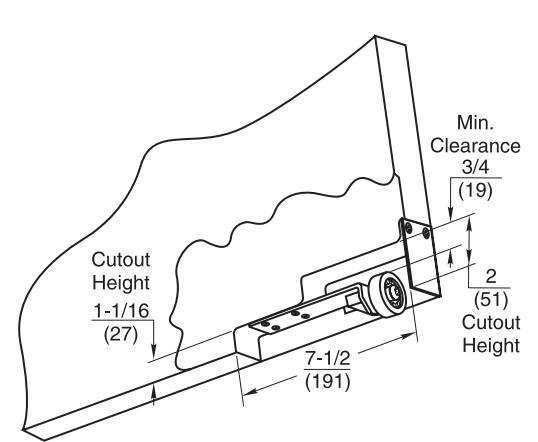

10600, 10602 CASTERS

Application

• Casters are required for all doors over 5' wide that are pivoted near the heel edge of the door
• For doors weighing up to 730 lbs., specify model 10600 (single roller)
• For doors weighing up to 1500 lbs., specify model 10602 (double roller)
• Metal doors minimum1-3/4" thickness
• Wood doors minimum 2-1/4" thickness
• Three 1/16" shim plates included for adjustment after door is installed
• Optional end cap to finish off edge of door 10600-019
• Hollow metal mounting plate available
• For low frequency usage
• For interior door installations
• · For pivot doors only
• Patented

Technical Information

60131 LOCK EDGE APPLIED STOP

Application

For center hung doors with single acting closers. Mount to underside of frame head at the lock edge to keep doors from resting past center.

Technical Information

SPECIAL CEMENT CASES

DOOR CONTROL ACCESSORIES

For Exterior Expansion Joints or Between Slab Applications

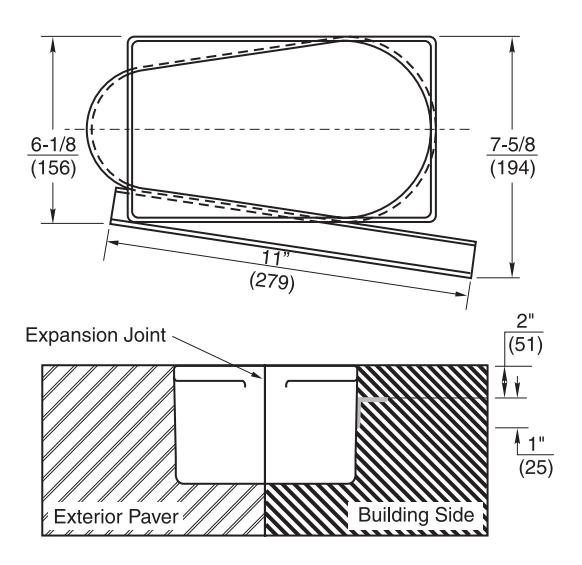

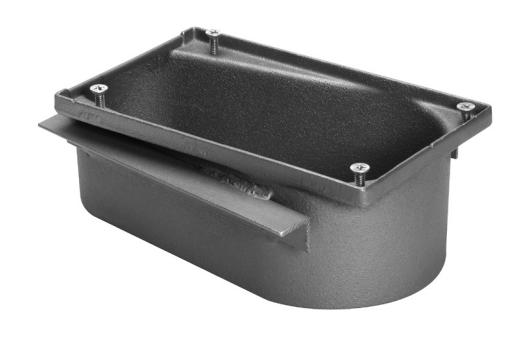

1101 CEMENT CASE

Application

At expansion joints, angle is applied to one side of a cast iron cement case allowing it to anchor to interior slab. Outside edge of slab independent of exterior slab.

To be used with 27 or 28 closers. Not recommended for L or H series - extra heavy duty models. Specify hand or door swing.

Technical Information

For Shallow Depth Floors

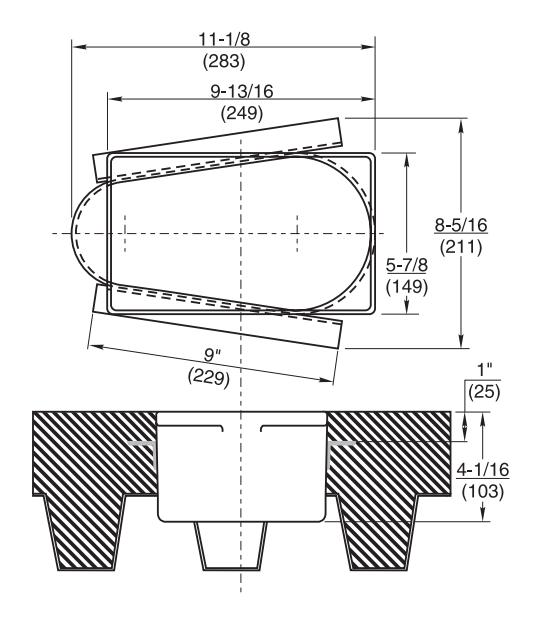

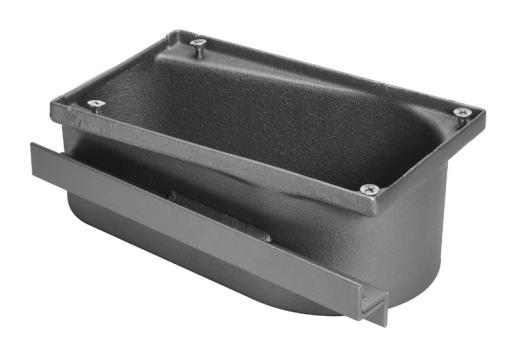

79501 HEAVY-DUTY CEMENT CASE

Application

When a shallow concrete floor (less than 4-1/2") presents installation difficulties, there is no need to sacrifice proper door control. Heavy-duty closers (27 and 28) that are normally furnished with cycolac cases may be ordered with metal cases that have steel angles welded to the sides. For 30 or 40 series closers, contact factory.

Not recommended for L or H series - extra heavy duty models. When concrete is poured, the only concern is that the angles be stable.

Technical Information

SPECIAL CEMENT CASES

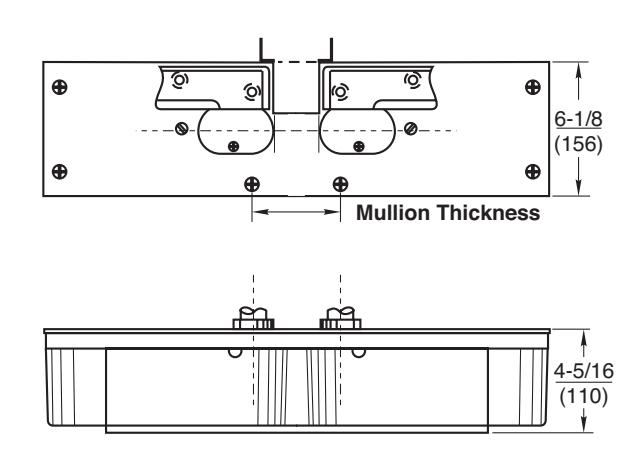

25304, 25204 TWIN CEMENT CASES

Application

27 closers cannot be mounted back-to-back where space between doors is less than 2-7/8" (73mm), without modification.

• For applications that have a 2" (51mm) mullion separating the offset closers, specify a 25304 Twin Cement Case
• For applications that have a 1-3/4" (48mm) mullion separating the offset closers, specify a 25204 Twin Cement Case

Closers are also modified.

When a twin cement case is ordered, mullion width must be indicated. Both closers and cement cases must be ordered at the same time. Field modification to standard product is not possible.

Technical Information

COVER PANS

DOOR CONTROL ACCESSORIES

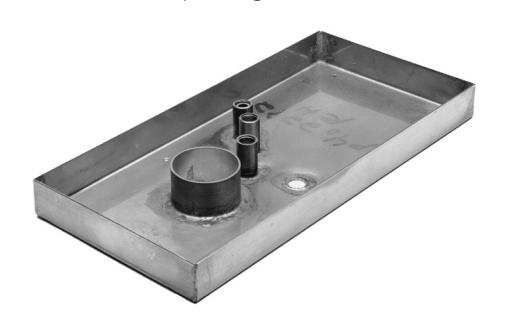

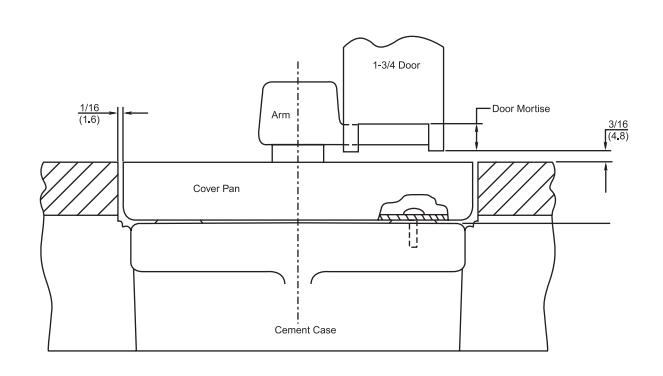

COVER PANS

Application

To ensure the aesthetics of a continuous floor line, a cover pan can be used in lieu of a closer floor plate. A cover pan is filled with flooring material (terrazzo, marble, tile, etc.) and is then placed on top of the floor closer. This allows access to the floor closer for maintenance.

Specify stainless steel or brass, exact closer being used, hand, and depth of pan. (7/8" (22mm) is standard.) Deduct cost of floor plate, add for extended spindles, and add for cover pan.

For pan depths and closer spindle information, refer to "Templates" and "Door Control Accessories". Common cover pan part numbers include:

846	27 closer, all depths for 1-3/4" doors. Consult factory for doors greater than 1-3/4".
3910	L27 closer, all depths for 1-3/4 doors. Consult factory for doors greater than 1-3/4.
2237	28 closer x 554 flat arm, all depths
841	28 closer, centering arm, all depths
841B	H28 closer and H28 x 587 arm
2637	51 closer, all depths for 1-3/4" doors. Consult factory for doors greater than 1-3/4".
2807D	53 closer, all depths
2807B	50 closer x 554 flat arm, all depths
2807A	50 closer, centering arm, all depths

Any other closer models will be special layouts. Contact factory for correct product numbers and pricing.

Technical Information

Note: Closers that are "buried" under floor materials, that do not have Norton Rixson cover pans, will not be covered by warranty.

INSTALLATION TOOLS

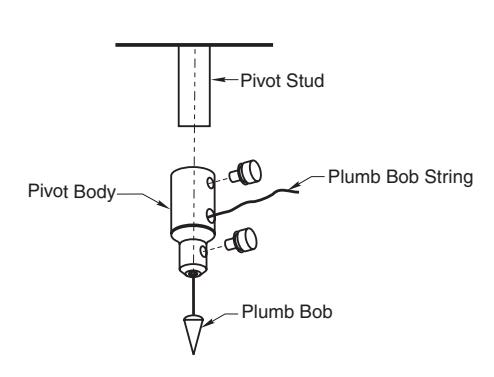

2604/2608 ALIGNMENT TOOLS

Application

• Reuseable tool ensures proper alignment of top and bottom pivot or closer
• May be used for offset or center hung installations
• · Plumb line and bob not included
• Can be reused for future/additional installations
• Specify 2604 for use with the 180 offset and 340 center hung top pivots
• Specify 2608 for use with the H340 and H345 heavy-duty, center hung top pivots

Technical Information

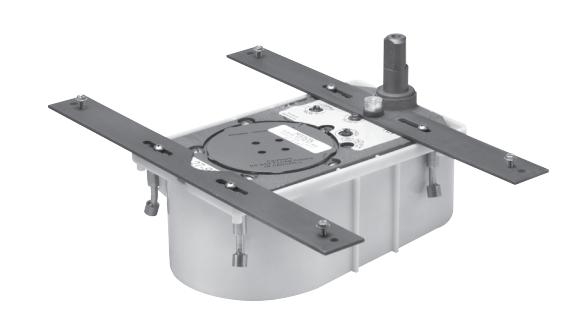

1859001 QUICKSPOTTER

Application

Metal straps are attached to the closer to suspend it during setting. Locator indicates proper placement of spindle. The level ensures a leveled installation.

• Spindle locator plate (for offset and center hung installations)
• Two spotter straps with leveling screws
• Bubble level
• May be used on Models 27, 28, 30, 40
• Can be reused for future/additional installations
• For Q27 specify model 1859501 Quickspotter

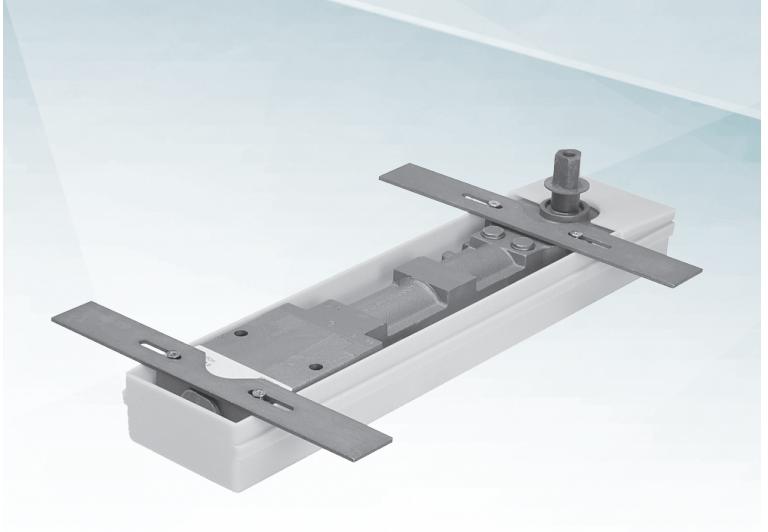

1855051 QUICKSPOTTER

Application

Metal straps are attached to the closer to suspend it during setting. Locator indicates proper placement of spindle. The level ensures a leveled installation.

• Spindle locator plate (for offset and center hung installations)
• Two spotter straps with leveling screws
• Bubble level
• May be used on models 50, 51, and 53
• Can be reused for future/additional installations
