Norton Rixson ADAEZ PRO PLUS with Electric Lock and Access Control Panel Wiring

Attachment 3

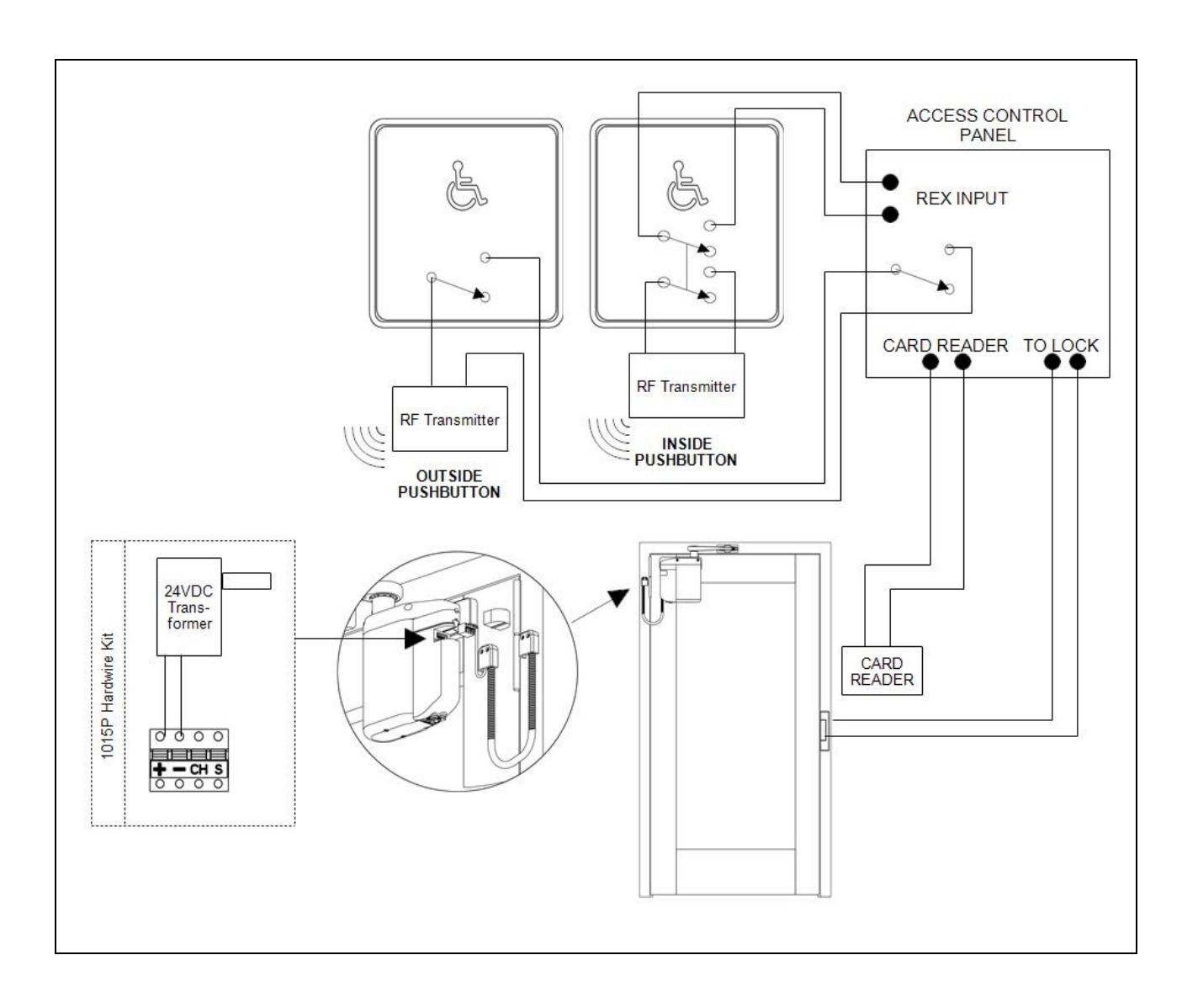

ADAEZ PRO PLUS with Electric Lock and Access Control Panel

(Sheet 4 of 5)

System Description:

• Outside Pushbutton is enabled when a valid card is presented to the reader.
• Inside Pushbutton is always active.
• RF controls door opener and must be located within 50 feet of the opener and not enclosed in a metal enclosure

System Requirements:

• 1x 1019-2 Square Pushbutton with RF transmitter
• 1x 1019-4 Square Pushbutton DPDT switch with RF transmitter

700002 Rev. F
