Norton Rixson ADAEZ-PRO-PLUS-with-Electric-Lock-and-Access-Control-Panel-No-Outside-Button_Wiring

Attachment 3

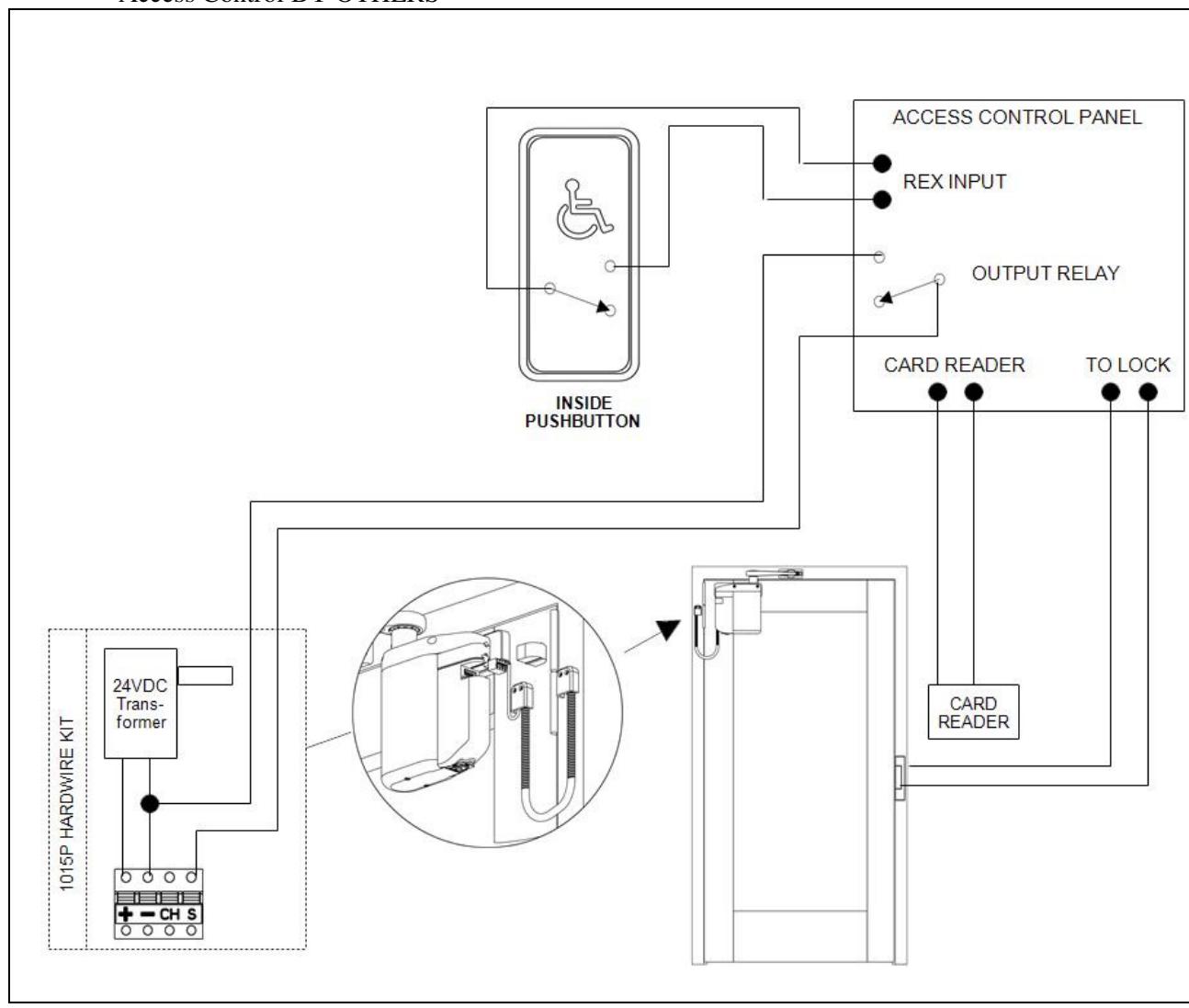

ADAEZ PRO PLUS with Electric Lock and Access Control Panel - No Outside Button (Sheet 3 of 5)

System Description:

• A valid card presented to the reader will unlock the door and initiate an automatic open cycle.
• ADAEZ Hardwired kit (p/n 1015P) is REQUIRED.
• Inside pushbutton is always enabled.
• Aux Hardwired switch must be electrically isolated from the electric strike.

System Requirements:

• 1x 1012-2 Rectangular Pushbutton with RF transmitter
• 1x 1015P ADAEZ Hardwire Kit
• Access Control BY OTHERS

700002 Rev. F
