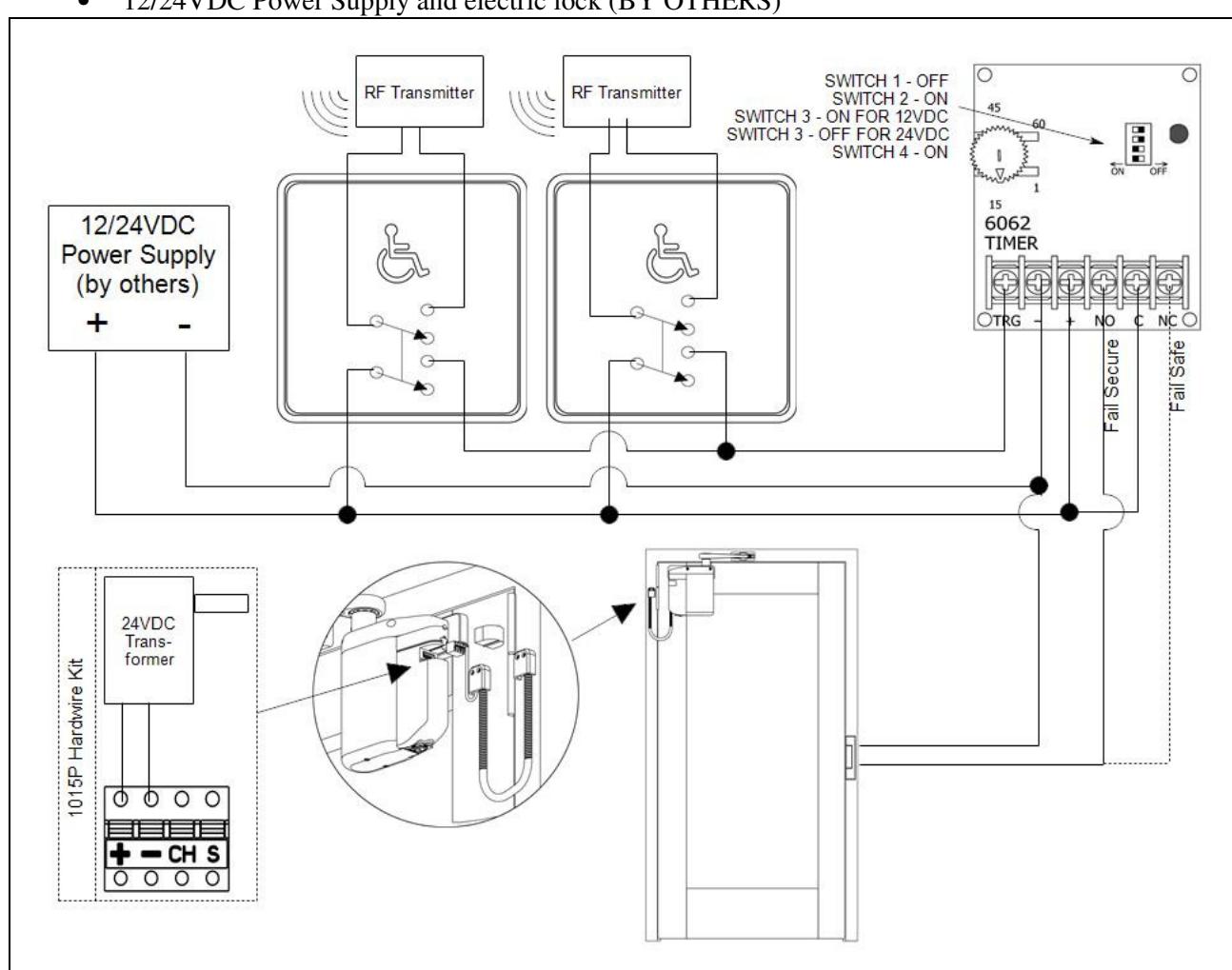

Attachment 3 ADAEZ PRO ELI with Electric Strike and RF Buttons

(Sheet 1 of 5)

System Description:

• ADAEZ Pro with 12 or 24VDC power supply (by other) with Wireless Buttons.
• Pressing either inside or outside push button activates electric lock then
• Door operator initiates and automatic open cycle after a 1/2 second delay.
• The Multi purpose timer keeps the electric lock unlocked for anmadjustable time period to prevent operator from engaging electric lock.

System Requirements:

• 1x 1019-4 Square Pushbutton DPDT with RF transmitter
• 1025 Timer Kit
• 1015P Hardwire Kit
• 12/24VDC Power Supply and electric lock (BY OTHERS)
