ASSA ABLOY

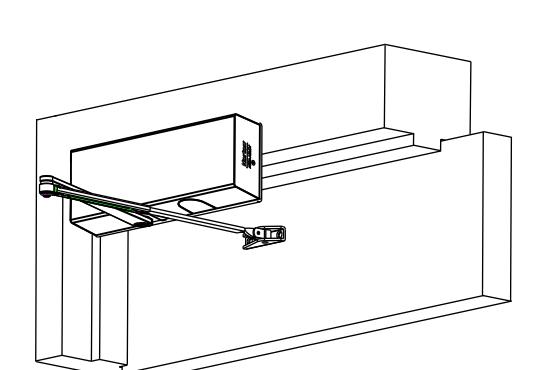

9500 Series Installation Addendum For Use with 9587 Drop Plates
This addendum replaces the Template on page 9 of the 80-9395-9511-020 Instruction Sheet for 9500 Top Jamb Mount Applications.
USE OF DROP PLATE (9587) IN THIS APPLICATION WILL PUT THE BOTTOM OF THE PLATE 2-1/8 (54) INTO THE OPENING.

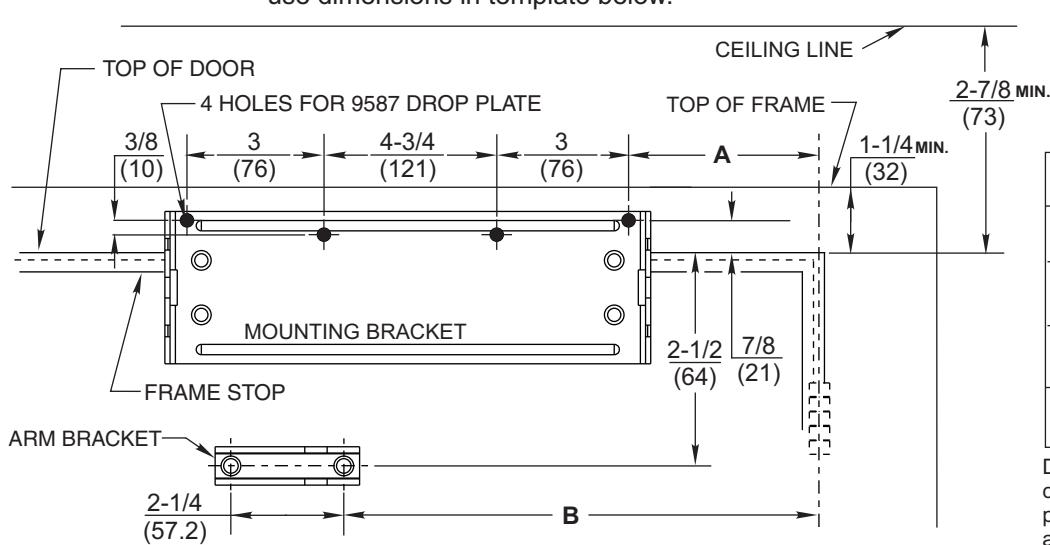

Template
Mark Door and Jamb (for arm bracket and drop plate) use dimensions in template below.
| OPENING MAXIMUM | Α | В |
HINGE
CONDITION |
|---|---|---|---|
| 110° |
6-1/8
(156) |
14
(356) |
|
| 140° |
4-3/8
(111) |
12-1/2
(318) |
Butts, Offset
Pivots, and Swing Clear |
| 180° |
2-5/8
(67) |
10-1/2
(267) |
Hinges |
| 140° |
4-3/8
(111) |
12-3/8
(314) |
* CENTER
HUNG |
Dimensions "A" and "B" are taken from centerline of hinge as shown and apply to pivot point of swing clear hinges. Offset and center hung pivots.
*Must be single acting door.

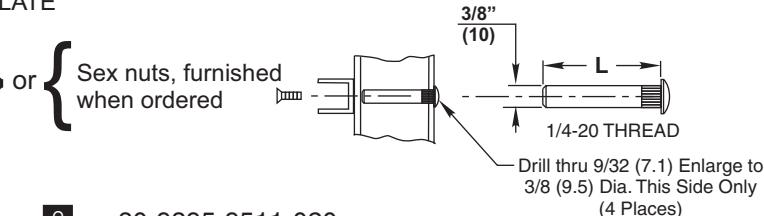

MOUNTING SCREW SPECIFICATIONS
ARM AND CLOSER DROP PLATE
| THICKNESS |
SEX NUT
LENGTH "L" |
||
|---|---|---|---|
| 1 | -3/8" (35mm) | 1-9/32 " (33mm) | |
|
1-3/4" (44mm)
& OVER |
1-21/32 " (42mm) | ||
NOTES:
- Check hand of door, see page 2 on 80-9395-9511-020.
- Right Hand Application Shown. Left Hand Opposite.
- Dimensions given in inches (mm). Do Not Scale Drawing.
- Closer must be installed in a true horizontal plane to ensure proper closer performance.
- All degrees of door opening are dependent upon door, frame, wall and hinge/pivot conditions permitting.
Norton Door Controls 3000 Highway 74 East • Monroe, NC 28112 Tel: (800)-438-1951 EXT. 6030 www.nortondoorcontrols.com
