ASSA ABLOY

Installation Instructions

Non Hold Open Models

Sized

Weaker (Sizes 2,3,4,5) 9302BC 9303BC 9304BC 9305BC

An Incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

• Doors should be hung on ball bearing or anti-friction hinges.
• A separate door stop is recommended.
• Door and frame must be properly reinforced.
• Adjust closing time speed between 3 and 7 seconds from 90° to 0°.
• These door closers should NOT be installed on the exposed side (weather side) of exterior doors.

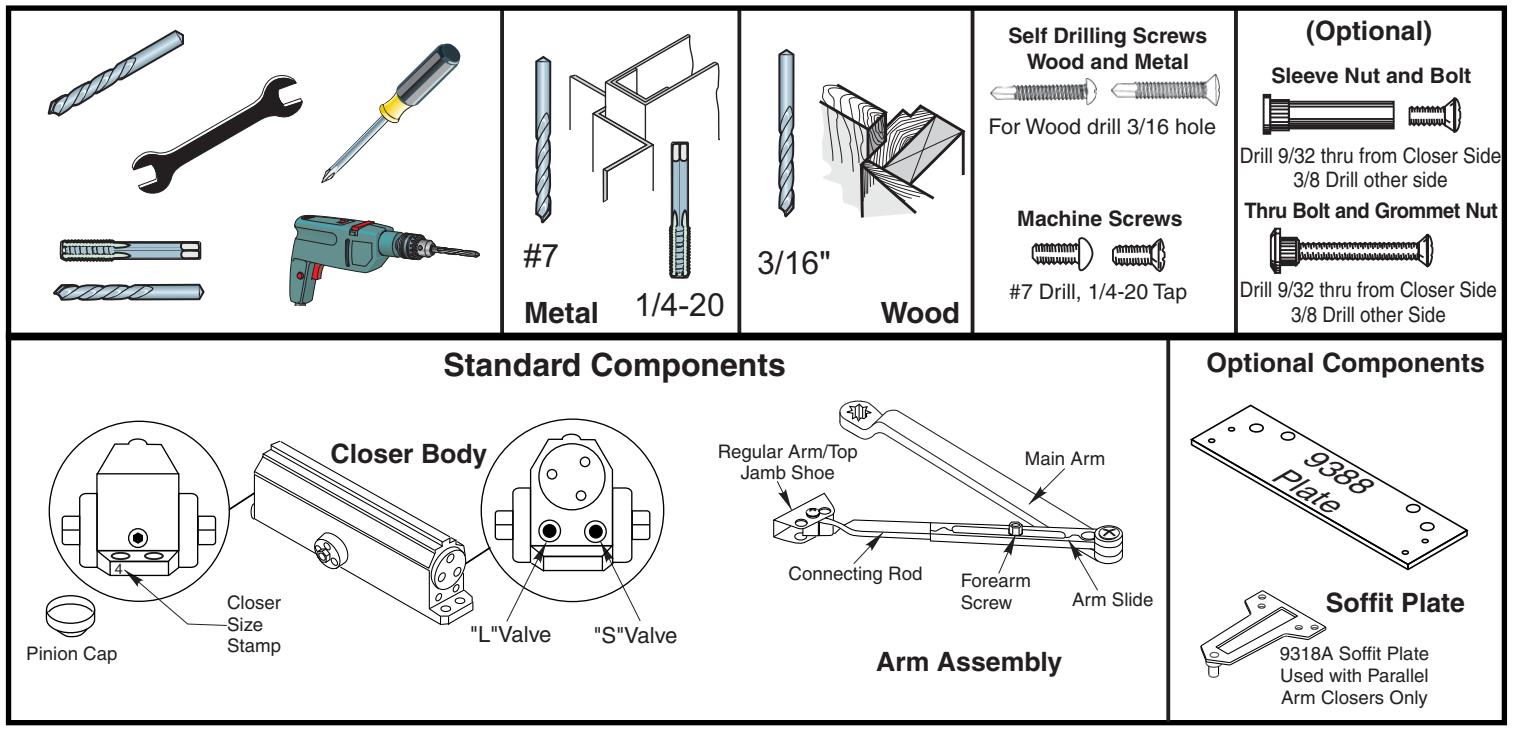

9300BC Series

Non Handed Door Closer

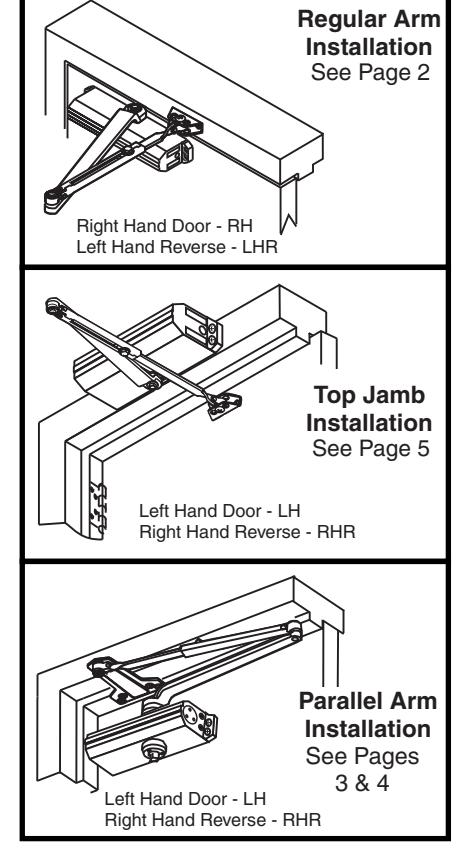

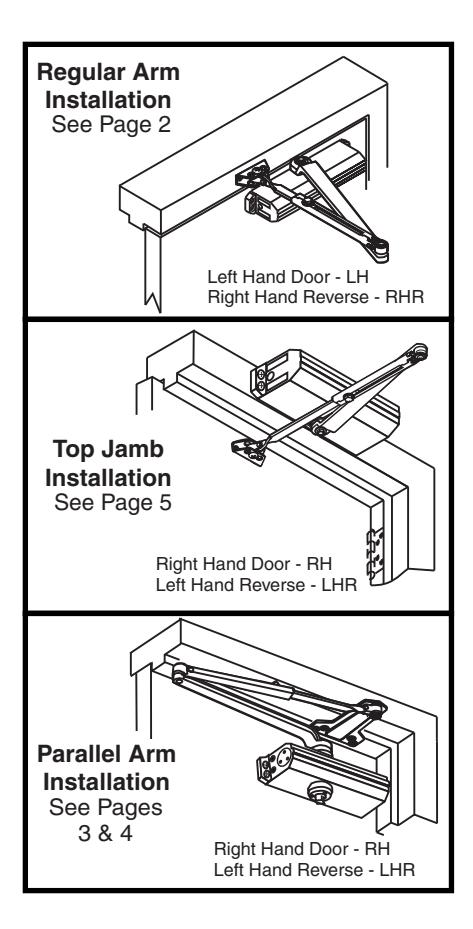

Regular Arm Top Jamb Parallel Arm

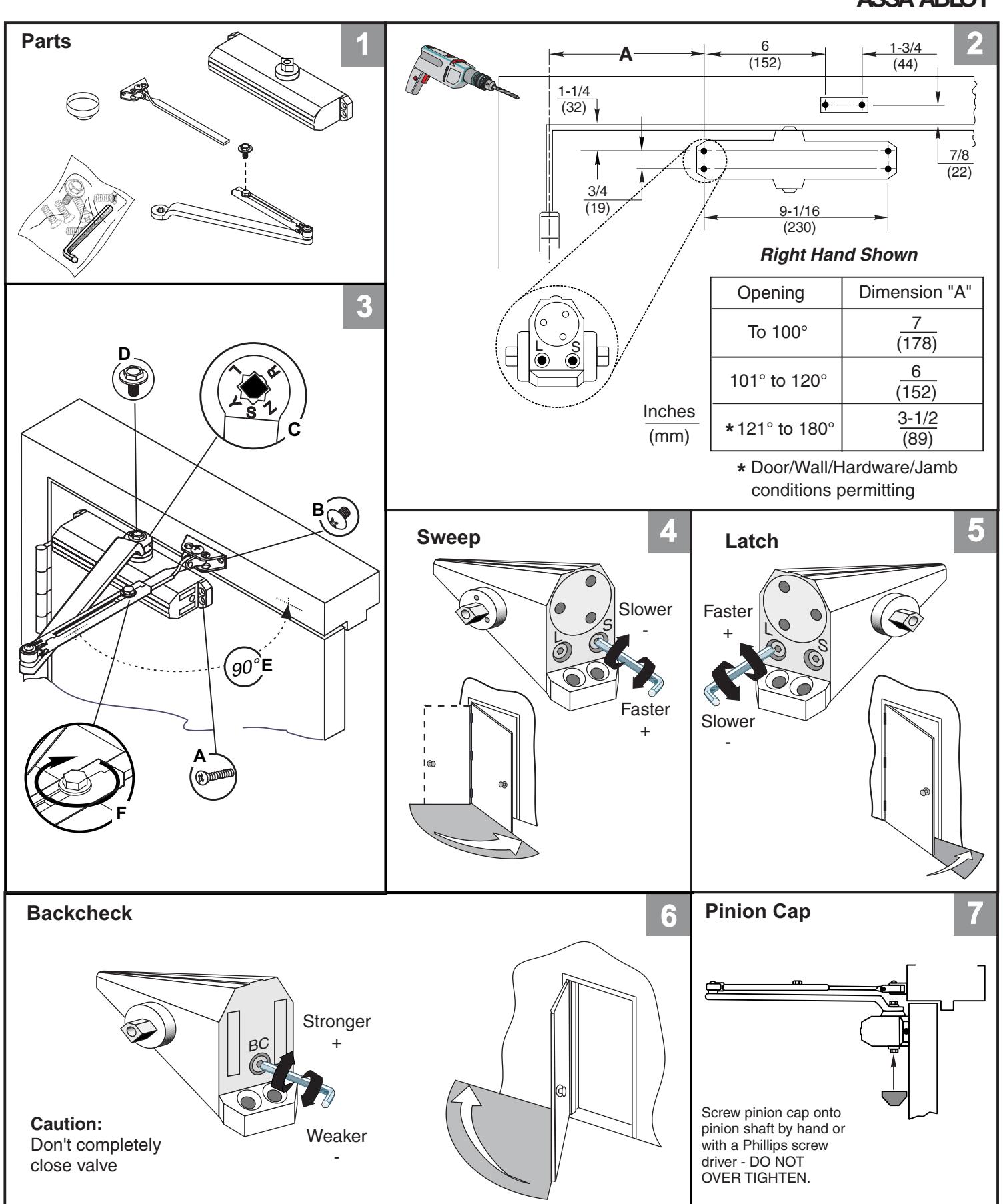

Non Hold Open Door Closers — Regular Arm

Non Hold Open Door Closers — Parallel Arm

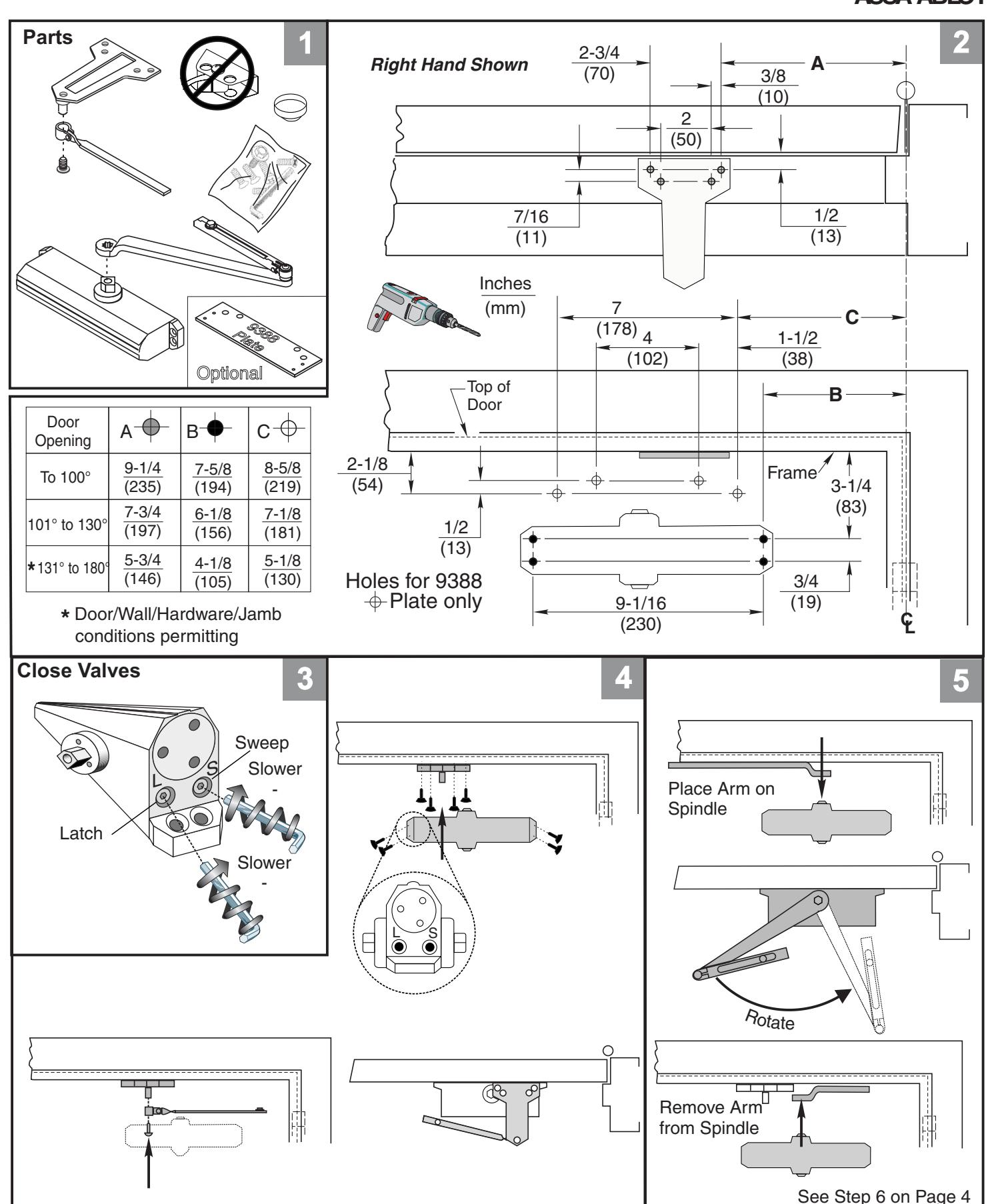

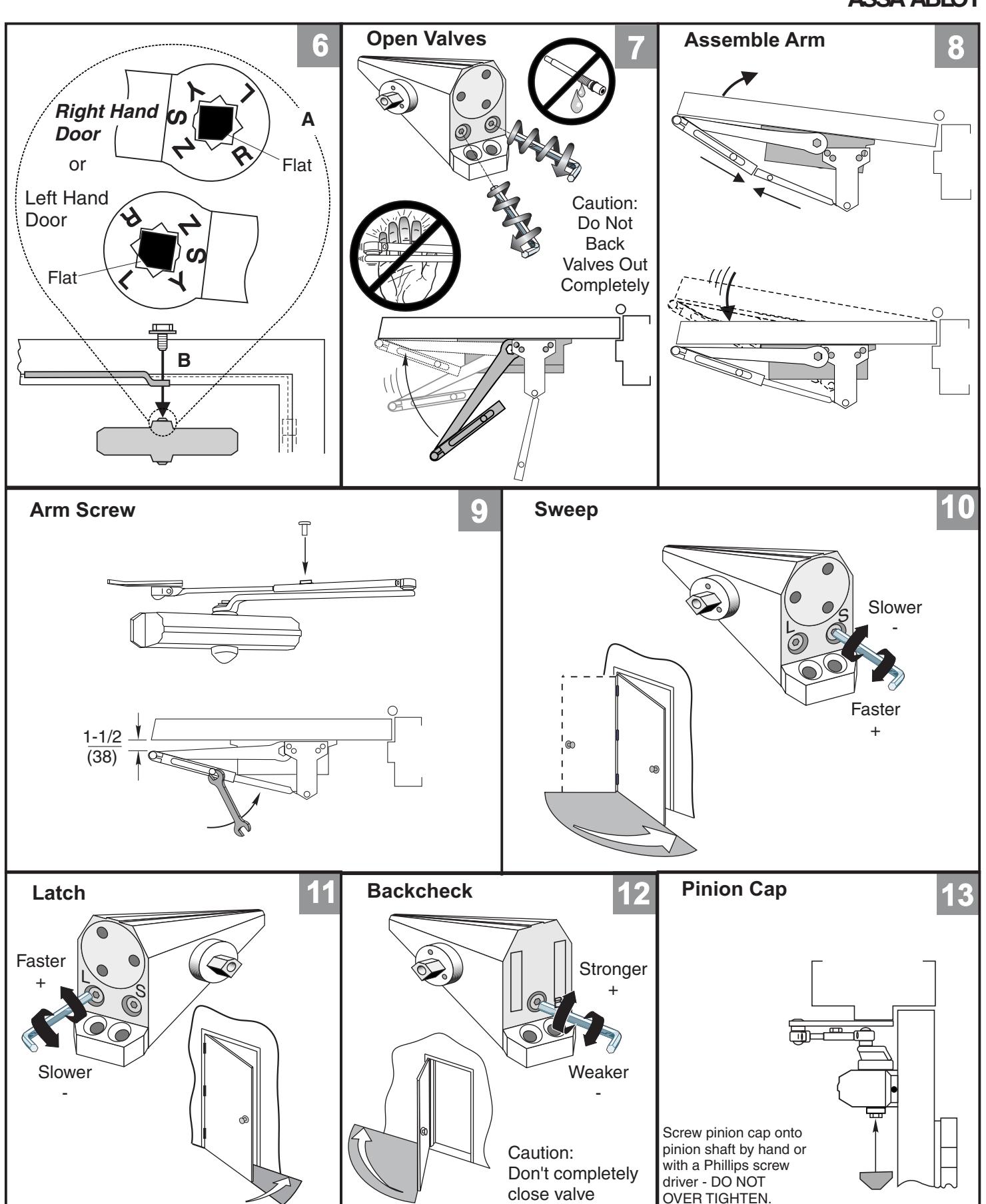

Non Hold Open Door Closers — Parallel Arm

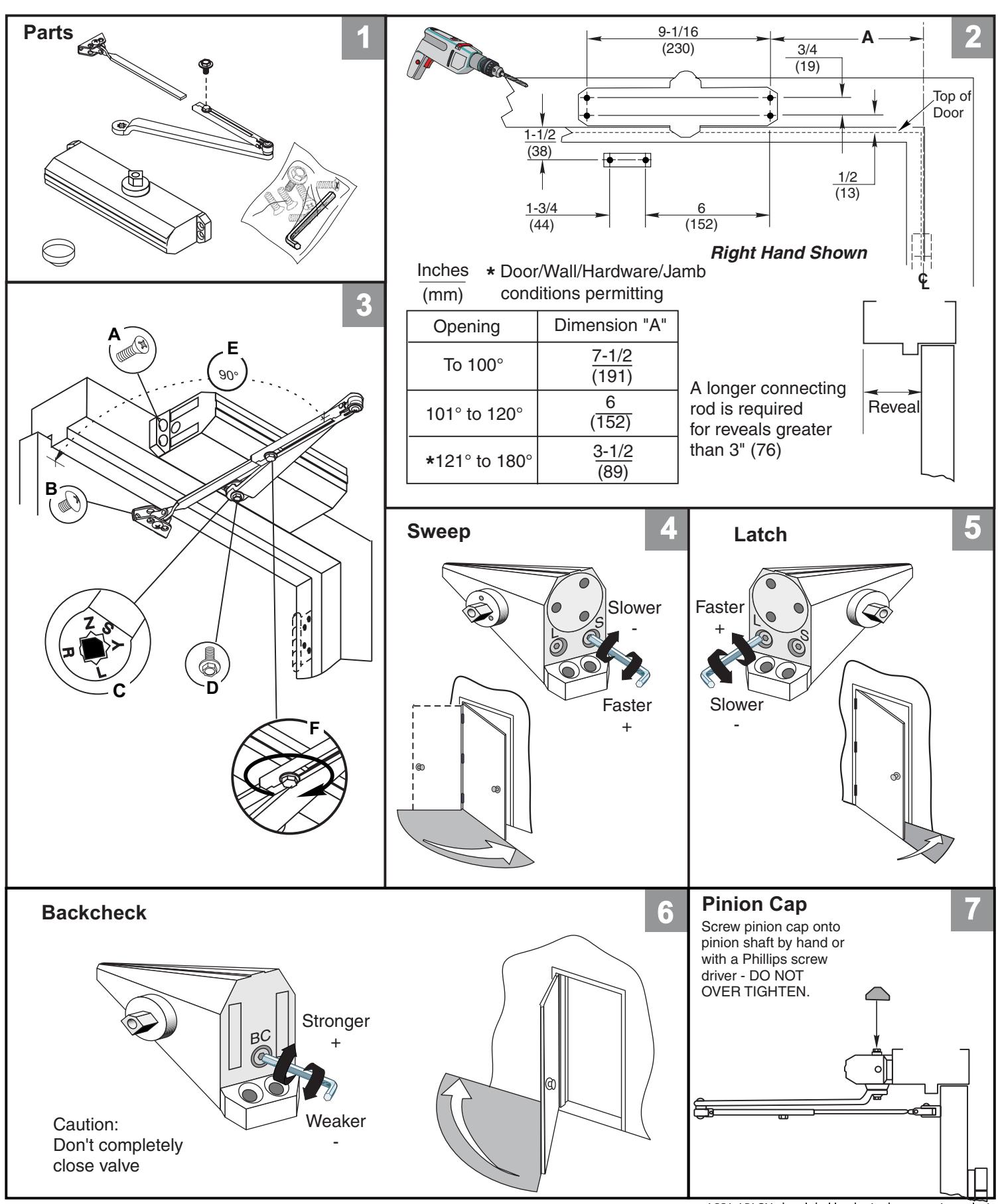

Non Hold Open Door Closers — Top Jamb Arm

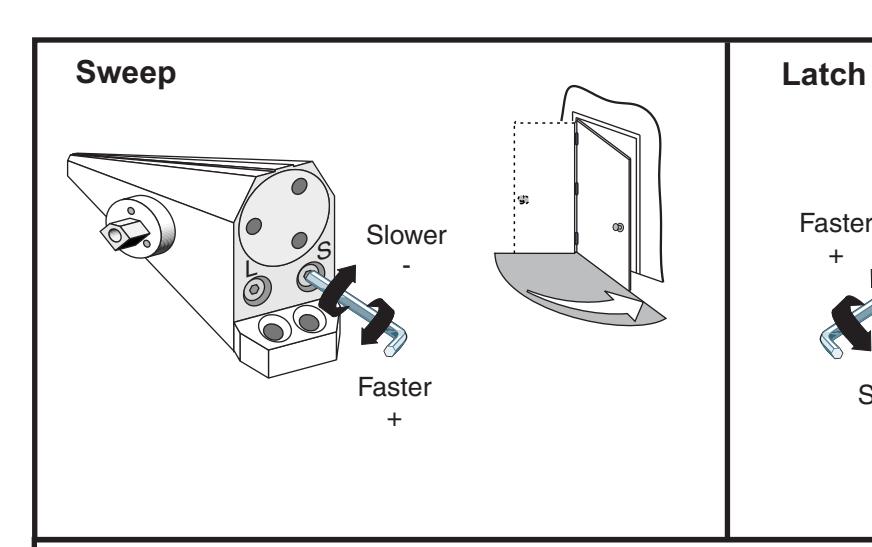

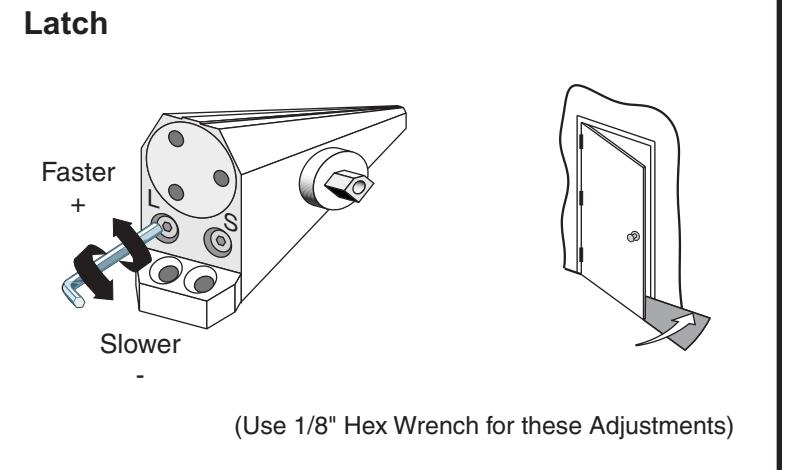

9300BC Series Adjustments

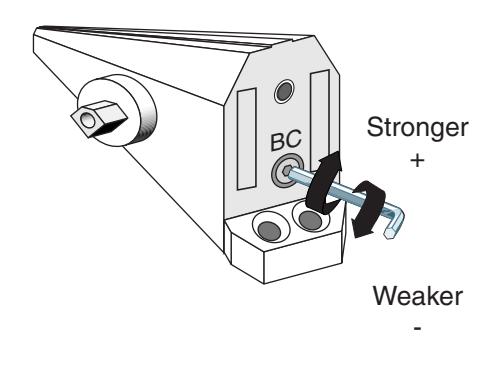

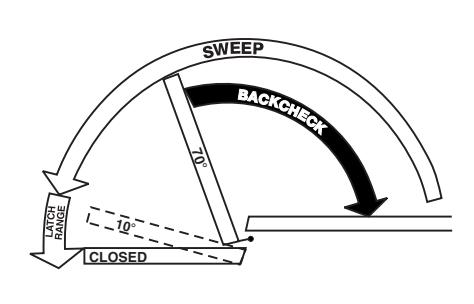

Backcheck

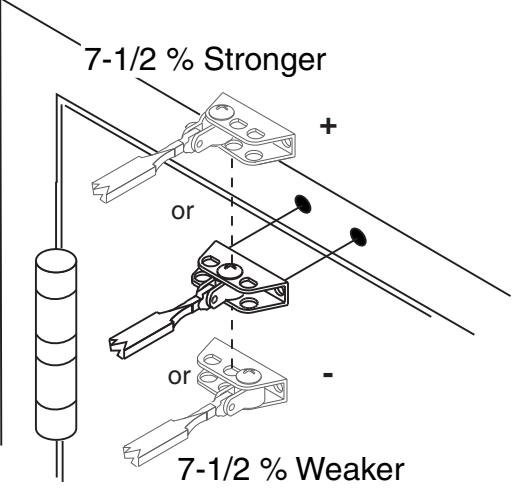

To identify your model: Arm Placement in Shoe

2=9302BC

3=9303BC

4=9304BC

5=9305BC
