Norton Rixson 841B Cover Pan for H28 Floor Closer with and without 587 Arm Template_MS140110
Open the original PDF document
View PDF
Notes:
- 1. Do not scale drawing.

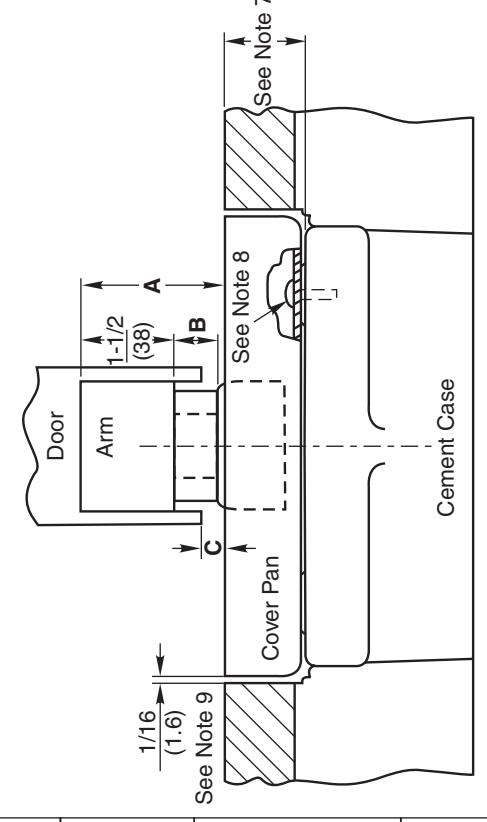

- 2. "B" Dimension is the shim thickness required between arm and bearing.
- 3. "C" Dimension is the maximum undercut allowed.
- 4. This template is for a 2" thick door or larger.
- 5. For 1-3/4" thick doors specify SPLO-587.
- 6. For additional installation details see templates CH20200 or CH20110.
- 7. Set cement case 1/8" (3.2) lower than depth of cover pan ordered. Use cover pan to facilitate installation of cement case.
- 8. Brass alignment pins furnished to align pan with closer. Pan is not fastened to floor closer.
- 9. Provide 1/16" (1.6) clearance around cover pan.
- 10. All dimensions are given in inches (mm).
CAUTION: Prevent grout from collecting between the closer and cement case in the event closer must be removed after the grout is set.
| Cover Pan No. |
Pan
Depth |
Spindle
Size |
Α | В | С |
|---|---|---|---|---|---|
| 841-1B | 7/8 (22) | 1/2" (13) Longer | 2-1/8 (54) | 1/2 (13) | 5/8 (16) MAX |
| 841-2B | 1/4 (6) | Regular | 2-1/4 (57) | 0 | 3/4 (19) MAX |
| 841-3B | 3/8 (10) | Regular | 2-1/8 (54) | 0 | 5/8 (16) MAX |
| 841-4B | 1/2 (13) | Regular | 2 (51) | 0 | 1/2 (13) MAX |
| 841-5B | 5/8 (16) | 1/2" (13) Longer | 2-3/8 (60) | 1/2 (13) | 7/8 (22) MAX |
| 841-6B | 3/4 (19) | 1/2" (13) Longer | 2-1/4 (57) | 1/2 (13) | 3/4 (19) MAX |
| 841-7B | 1 (25) | 1/2" (13) Longer | 2 (51) | 1/2 (13) | 1/2 (13) MAX |
| 841-8B | 1-1/4 (32) | 1" (25) Longer | 2-1/4 (57) | 1 (25) | 3/4 (19) MAX |
| 841-9B | 1-1/2 (38) | 1" (25) Longer | 2 (51) | 1 (25) | 1/2 (13) MAX |
| 841-10B | 1-3/4 (44) | 1-1/2" (38) Longer | 2-1/4 (57) | 1-1/2 (38) | 3/4 (19) MAX |
| 841-11B | 2 (51) | 1-1/2" (38) Longer | 2 (51) | 1-1/2 (38) | 1/2 (13) MAX |

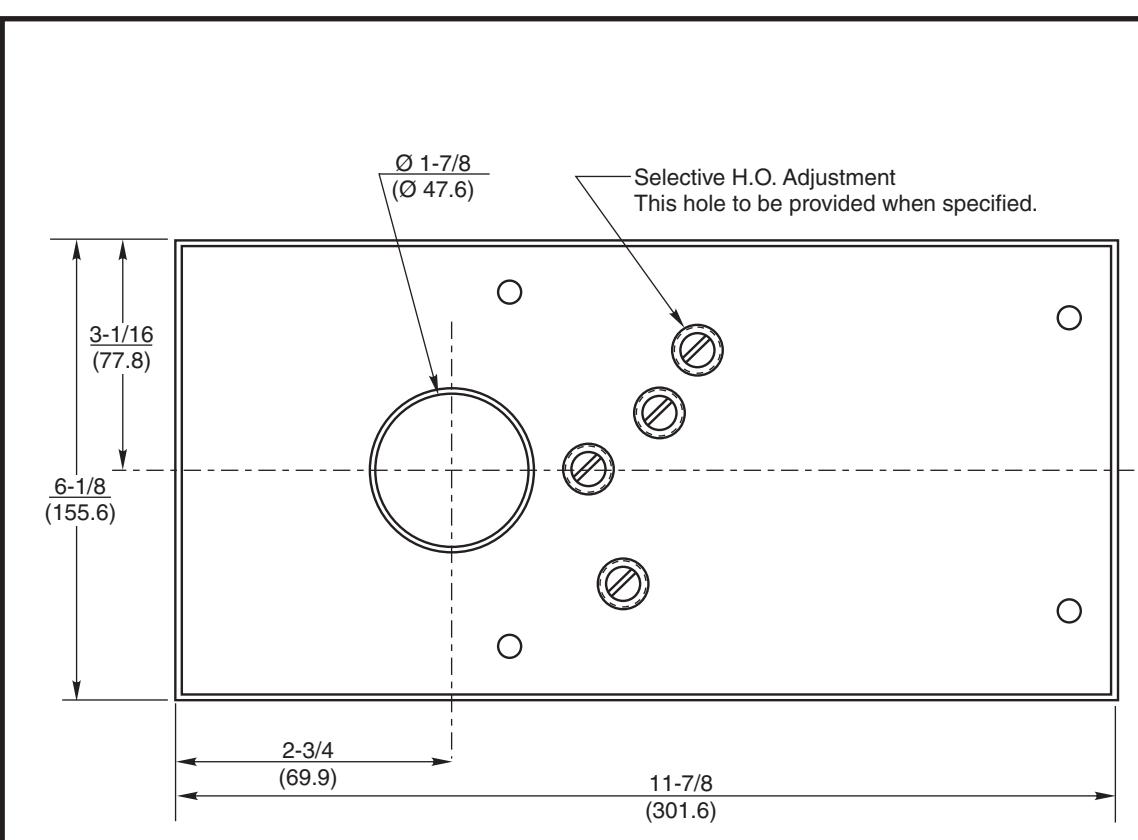

H28 and H28 x 587 Arm Cover Pan
ASSA ABLOY
TEMPLATE NUMBER
REV DATE O1
MS140110
Approved 2022-06-20
01/22
