Norton Rixson 841 Cover Pan for 28 Floor Closer with Centering Arm Template_MS140025
Open the original PDF document
View PDF
NOTE:
- 1. Do not scale drawing.
- 2. It is suggested that a divider be placed around the pan and that the height be equal to the height of the cover pan.
- 3. For additional installation details see template CH20100.
- 4. Set cement case 1/8" (3.2) lower than depth of cover pan ordered. Use cover pan to facilitate installation of cement case.
- 5. Brass alignment pins (4) to align pan with closer. Pan is not fastened to floor closer.
- 6. All dimensions given in inches (mm).
CAUTION: Prevent grout from collecting between the closer and cement case in the event it may be necessary to remove the closer after the grout is set.
| Cover Pan # | Pan Depth | Spindle Size | Door Mortise | Dim. A |
|---|---|---|---|---|
| 841-1 | 7/8 (22.2) | 1/2" (12.7) Longer | 1-3/16 (30.2) | 7/8 (22.2) |
| 841-2 | 1/4 (6.4) | Regular | 1-5/16 (33.3) | 1 (25.4) |
| 841-3 | 3/8 (9.5) | Regular | 1-3/16 (30.2) | 7/8 (22.2) |
| 841-4 | 1/2 (12.7) | Regular | 1-9/16 (39.7) | 7/8 (22.2) |
| 841-5 | 5/8 (15.9) | 1/2" (12.7) Longer | 1-7/16 (36.5) | 3/4 (19) |
| 841-6 | 3/4 (19) | 1/2" (12.7) Longer | 1-5/16 (33.3) | 1 (25.4) |
| 841-7 | 1 (25.4) | 1" (25.4) Longer | 1-9/16 (39.7) | 7/8 (22.2) |
| 841-8 | 1-1/4 (31.8) | 1" (25.4) Longer | 1-5/16 (33.3) | 1 (25.4) |
| 841-9 | 1-1/2 (38.1) | 1-1/2" (38.1) Longer | 1-9/16 (39.7) | 7/8 (22.2) |
| 841-10 | 1-3/4 (44.4) | 1-1/2" (38.1) Longer | 1-5/16 (33.3) | 1 (25.4) |
| 841-11 | 2 (50.8) | 2" (50.8) Longer | 1-9/16 (39.7) | 7/8 (22.2) |

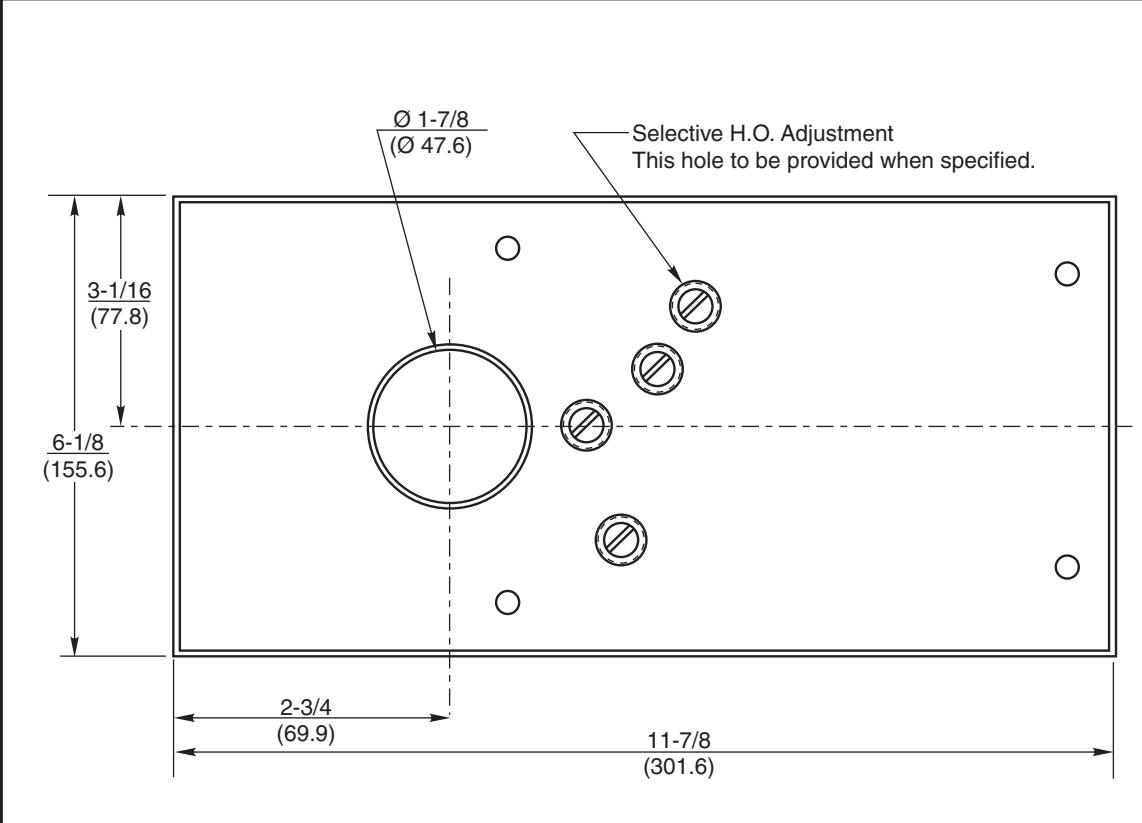

Cover Pan 841 For 28 Closer with Centering Arm
RIXSON ASSA ABLOY
TEMPLATE NUMBER
MS140025 3 01/22
Approved 2022-06-20
