| Preparation for Fasteners | ||||||
|---|---|---|---|---|---|---|
| Fasteners | Application Arm-foot |
Door or Frame
Hollow Metal |
9/32" (7.00mm) through 3/8" (9.50mm) door face opposite to closer | |||
| Sex nuts and bolts | ||||||
|
Alluminum
or Wood |
3/8" (9.50mm) through | |||||
|
#14 x 1-1/4" (32mm)
type "A" S.M. screws |
Closer | Wood | 3/16" (4.30mm) | |||
| 1/4-20 machine screw | Metal | drill: #7 (.201") tap: 1/4-20 | ||||
| Through bolts and grommet nuts | Optional | All |
9/32" (7.00mm) through
3/8" (9.50mm) dia. x 3/8" (10mm) deep door face opposite to closer |
|||
|

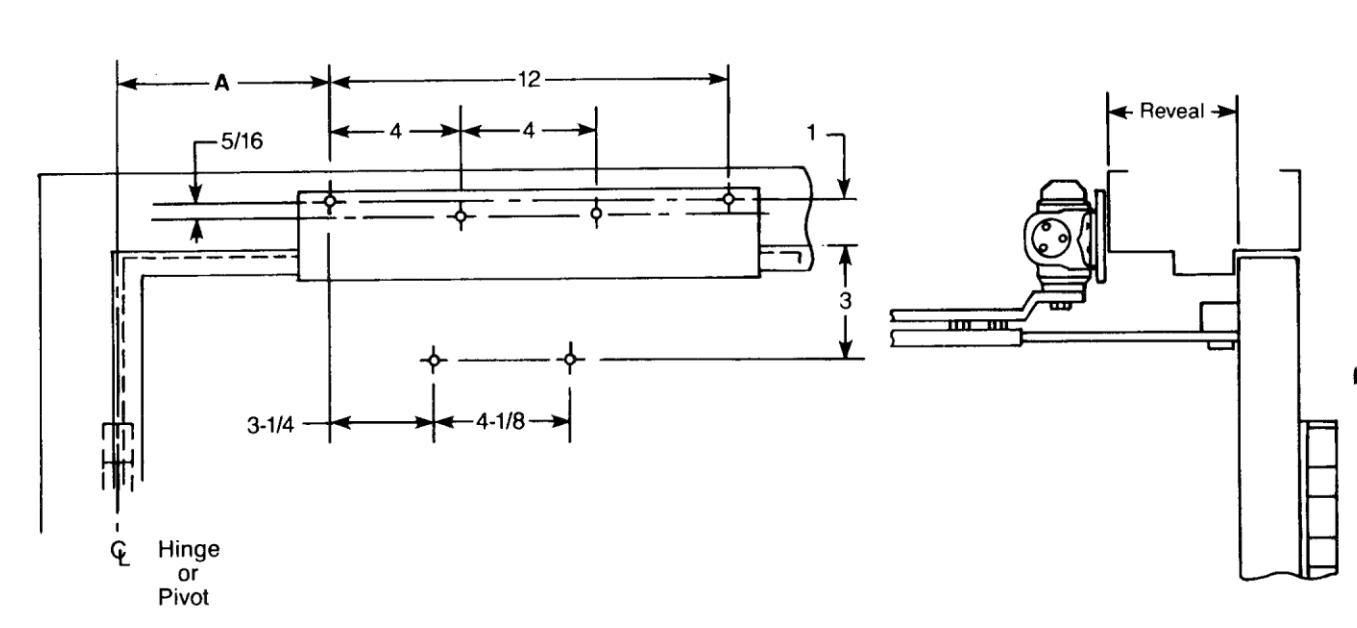

Door Opening
Angle |
Dimension ''A'' | |||
|---|---|---|---|---|
|
Hold
Open ★ |
Dead
Stop |
Butts and
Offset Pivots |
Center Pivots | |
| 85° | 90° | 10 | 10-3/8 | |
| 90° | 95° | 9-3/8 | 9-3/4 | |
| 95° | 100° | 8-3/4 | 9-1/4 | |
| 100° | 105° | 8-1/4 | 8-3/4 | |
| 105° | 110° | 7-7/8 | 8-1/4 | |
| 110° | 115° | 7-1/2 | 7-7/8 | |
| inches | mm. | inches | mm. |
|---|---|---|---|
| 5/16 | 8 | 8-3/4 | 222.5 |
| 1 | 25.5 | 9-1/4 | 235 |
| 1-1/2 | 38 | 9-3/8 | 238 |
| 3-1/4 | 82.5 | 9-3/4 | 247.5 |
| 4 | 101.5 | 10 | 254 |
| 4-1/8 | 104.5 | 10-3/8 | 263.5 |
| 7-1/2 | 190.5 | 12 | 305 |
| 7-7/8 | 200 | ||
| 8-1/4 | 209.5 |
® Unitrol With 8148 Drop Plate Series UNI-J8300, UNI-J8301, UNI-J8500, UNI-J8501
Top Jamb Installation Template ® Stop Only or Hold Open Unitrol Backcheck or Delayed Action Door Closer
NORTON RIXSON
TEMPLATE NUMBER REV
3 7380-1408 12/21
