Norton Rixson 8000 Series Door Closer,UNI-8300,UNI-8301,UNI-8500,UNI-8501,Unitrol Parallel Arm,with or without 8…_7380-1359
Open the original PDF document
View PDF
|
Door Opening
Angle |
Dimensions | ||||||
| Hold | Dead | Butts & Offset Pivots | Center Pivots | ||||
| Open | Stop | A | B | A | B | ||
| 85° | 90° | 9-3/4 | 15-1/8 | 10-1/8 | 15-1/2 | ||
| 90° | 95° | 8-7/8 | 14-1/4 | 9-3/8 | 14-3/4 | ||
| 95° | 100° | 8-1/4 | 13-5/8 | 8-5/8 | 14 | ||
| 100° | 105° | 7-5/8 | 13 | 8-1/8 | 13-1/2 | ||
| 105° | 110° | 7-1/8 | 12-1/2 | 7-5/8 | 13 | ||
| 110° | 115° | 6-3/4 | 12-1/8 | 7-1/8 | 12-1/2 | ||
Door must be free to swing 5° beyond holdopen position.
Notes:
Do not scale drawing.
Left hand door shown.
Dimensions are in inches.
Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified. Sex-bolts required for wood or plastic faced firedoor mounting.
Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm).
Follow Conversion Chart for metric dimensions.
| Preparation for Fasteners | |||||||
|---|---|---|---|---|---|---|---|
| Fasteners | Application | Door or Frame | Drill-Sizes | ||||
| Sex nuts and bolts |
Closer
Drop Plate |
Hollow-Metal |
9/32" (7.00 mm.) through;
3/8" (9.50 mm.) on door face opposite to closer |
||||
| Aluminum or Wood | 3/8" (9.50 mm.) through | ||||||
|
#14 x 1-1/4" (32mm)
type "A" S.M. screw |
Soffit plate
6190 Bracket |
Wood | 3/16" (4.30 mm.) | ||||
| 1/4" - 20 machine screw | Metal | drill: #7 (0.201" dia.) tap: 1/4" - 20 | |||||
|
Through-bolts and
grommet-nuts |
Optional | All |
9/32" (7.00 mm.) through;
3/8" (9.50 mm.) dia. x 3/8" (9.50 mm.) deep on door face opposite to closer |
||||
| inches | mm | inches | mm | inches | mm | inches | mm |
|---|---|---|---|---|---|---|---|
| 5/16 | 8 | 2-3/4 | 70 | 8-7/8 | 225 | 14-1/4 | 362 |
| 3/8 | 9.5 | 3-5/8 | 92 | 9-3/8 | 238 | 14-3/4 | 375 |
| 7/16 | 11 | 4 | 101.5 | 10-1/8 | 257 | 15-1/8 | 384 |
| 1/2 | 12.7 | 6-3/4 | 171 | 12 | 305 | 15-1/2 | 394 |
| 5/8 | 16 | 7-1/8 | 181 | 12-1/8 | 308 | ||
| 3/4 | 19 | 7-5/8 | 194 | 12-1/2 | 318 | ||
| 1-1/8 | 28.5 | 7-3/4 | 197 | 13 | 330 | ||
| 2 | 51 | 8-1/8 | 206 | 13-1/2 | 343 | ||
| 2-1/8 | 54 | 8-1/4 | 210 | 13-5/8 | 346 | ||
| 2-5/8 | 67 | 8-5/8 | 219 | 14 | 356 |

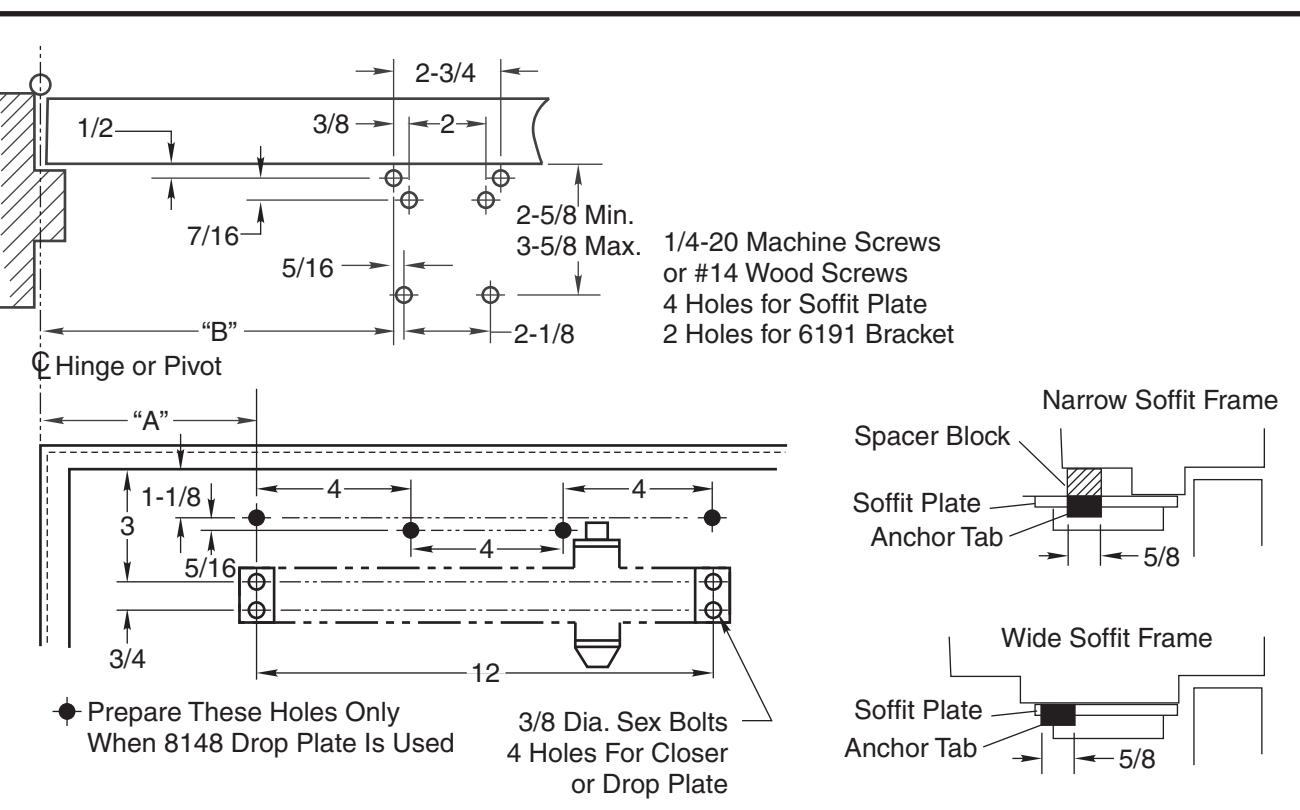

® Unitrol With 6191 Reinforcing Kit Series UNI-8300, UNI-8301, UNI-8500, UNI-8501 Doors 42" - 48" (1.05 - 1.20m)
Parallel Arm Installation Template ® Stop Only or Hold Open Unitrol Backcheck or Delayed Action Door Closer With or Without 8148 Drop Plate
TEMPLATE NUMBER REV
3 DATE 7380-1359 12/21
