| Preparation for Fasteners | |||||||
|---|---|---|---|---|---|---|---|
| Fasteners | Application | Door or Frame | Drill Sizes | ||||
| Sex nuts and bolts |
Closer
Drop Plate |
Hollow Metal |
9/32" (7.00mm) through
3/8" (9.50mm) door face opposite to closer |
||||
| Alluminum or Wood | 3/8" (9.50mm) through | ||||||
|
#14 x 1-1/4" (32mm)
type "A" S.M. screws |
Soffit plate
6190 Bracket |
Wood | 3/16" (4.30mm) | ||||
| 1/4-20 machine screw | Metal | drill: #7 (.201") tap: 1/4-20 | |||||
| Through bolts and grommet nuts | Optional | All |
9/32" (7.00mm) through
3/8" (9.50mm) dia. x 3/8" (10mm) deep, door face opposite to closer |
||||
|

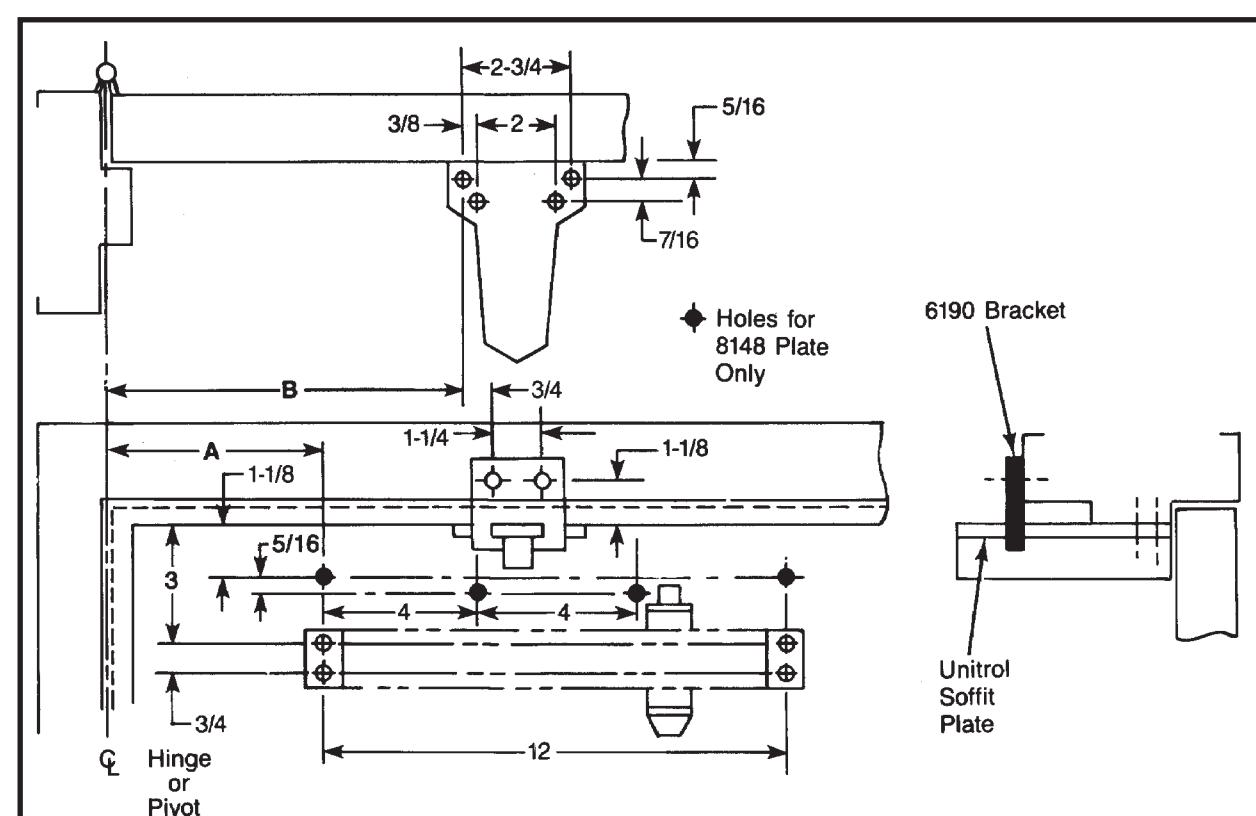

Door Opening
Angle |
Dimensions | ||||||
|---|---|---|---|---|---|---|---|
|
Hold
Open |
Dead
Stop |
Butts and
Offset Pivots |
Center Pivots | ||||
| * | · | Α | В | Α | В | ||
| 85° | 90° | 7-1/2 | 12-3/4 | 8 | 13-1/4 | ||
| 90° | 95° | 6-3/4 | 12 | 7-3/8 | 12-5/8 | ||
| 95° | 100° | 6-1/4 | 11-1/2 | 6-3/4 | 12 | ||
| 100° | 105° | 5-3/4 | 11 | 6-1/4 | 11-1/2 | ||
| 105° | 110° | 5-1/4 | 10-1/2 | 5-7/8 | 11-1/8 | ||
| 110° | 115° | 4-7/8 | 10-1/8 | 5-1/2 | 10-3/4 | ||
| inches | mm. | inches | mm. | inches | mm. |
| 5/16 | 8 | 5-1/4 | 133 | 10-3/4 | 273 |
| 3/8 | 9.5 | 5-1/2 | 139.5 | 11 | 279.5 |
| 7/16 | 11 | 5-3/4 | 146 | 11-1/8 | 282.5 |
| 3/4 | 19 | 5-7/8 | 149 | 11-1/2 | 292 |
| 1-1/8 | 28.5 | 6-1/4 | 158.5 | 12 | 305 |
| 1-1/4 | 31.5 | 6-3/4 | 171.5 | 12-5/8 | 320.5 |
| 2 | 51 | 7-3/8 | 187.5 | 12-3/4 | 324 |
| 2-3/4 | 70 | 7-1/2 | 190.5 | 13-1/4 | 336.5 |
| 3 | 76 | 8 | 203 | ||
| 4 | 101.5 | 10-1/8 | 257 | ||
| 4-7/8 | 124 | 10-1/2 | 266.5 |
® Unitrol Standard Application Series UNI-8300, UNI-8301, UNI-8500, UNI-8501 Doors 33" - 41" (0.85-1.00m) Wide
Parallel Arm Installation Template ® Stop Only or Hold Open Unitrol Backcheck or Delayed Action Door Closer With or Without 8148 Drop Plate With or Without 6190 Bracket
NORTON RIXSON
TEMPLATE NUMBER REV
3 DATE 7380-1352 12/21
Approved 2022-02-26
