Norton Rixson 8000 Series Door Closer,UNI-8300,UNI-8301,UNI-8500,UNI-8501,Unitrol Parallel Arm,Flush Partitions,…_7380-1354
Open the original PDF document
View PDF
|

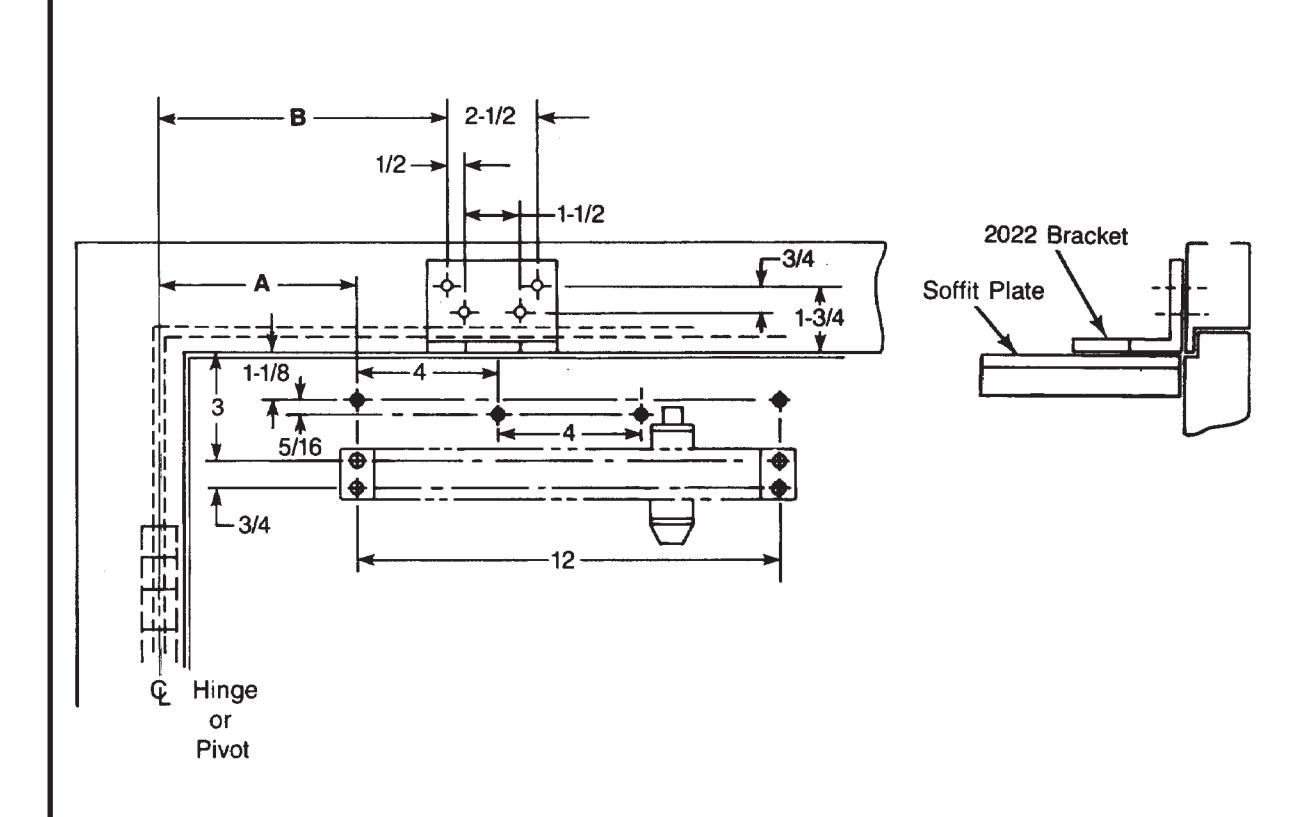

Door Opening
Angle |
Dimensions | |||||
|---|---|---|---|---|---|---|
|
Hold
Open |
Dead
Stop |
Butts and
Offset Pivots |
Center Pivots | |||
| * | A | В | Α | В | ||
| 85° | 90° | 5-1/8 | 10-1/2 | 5-3/4 | 11-1/8 | |
| 90° | 95° | 4-1/2 | 9-7/8 | 5-1/8 | 10-1/2 | |
| 95° | 100° | 4 | 9-3/8 | 4-5/8 | 10 | |
| 100° | 105° | 3-5/8 | 9 | 4-1/4 | 9-5/8 | |
| 105° | 110° | 3-1/4 | 8-5/8 | 3-7/8 | 9-1/4 | |
| 110° | 115° | 2-7/8 | 8-1/4 | 3-5/8 | 9 | |
| inches | mm. | inches | mm. | inches | mm. |
|---|---|---|---|---|---|
| 5/16 | 8 | 3-5/8 | 92 | 9 | 228.5 |
| 1/2 | 12.5 | 3-7/8 | 98.5 | 9-1/4 | 235 |
| 3/4 | 19 | 4 | 101.5 | 9-3/8 | 238 |
| 1-1/8 | 28.5 | 4-1/4 | 108 | 9-5/8 | 244.5 |
| 1-1/2 | 38 | 4-1/2 | 114 | 9-7/8 | 251 |
| 1-3/4 | 44.5 | 4-5/8 | 117.5 | 10 | 254 |
| 2-1/2 | 63.5 | 5-1/8 | 130 | 10-1/2 | 266.5 |
| 2-7/8 | 73 | 5-3/4 | 146 | 11-1/8 | 282.5 |
| 3 | 76 | 8-1/4 | 209.5 | 12 | 305 |
| 3-1/4 | 82.5 | 8-5/8 | 219 | ||
| Preparation for Fasteners | ||||||
|---|---|---|---|---|---|---|
| Fasteners | Application | Door or Frame | Drill Sizes | |||
| Sex nuts and bolts |
Closer
Drop Plate 2022 Bracket |
Hollow Metal |
9/32" (7.00mm) through
3/8" (9.50mm) door face opposite to closer |
|||
|
Alluminum
or Wood |
3/8" (9.50mm) through | |||||
| Through bolts and grommet nuts | Optional | All |
9/32" (7.00mm) through
3/8" (9.50mm) dia. x 3/8" (10mm) deep, door face opposite to closer |
|||
® Unitrol With 2022 Bracket Series UNI-8300, UNI-8301, UNI-8500, UNI-8501 Doors 28" - 32" (0.70-0.80m) Wide
Parallel Arm Installation Template Flush Partitions ® Stop Only or Hold Open Unitrol Backcheck or Delayed Action Door Closer With or Without 8148 Drop Plate
NORTON RIXSON
7380-1354 12/21
TEMPLATE NUMBER REV 3 DATE
Approved 2022-02-26
