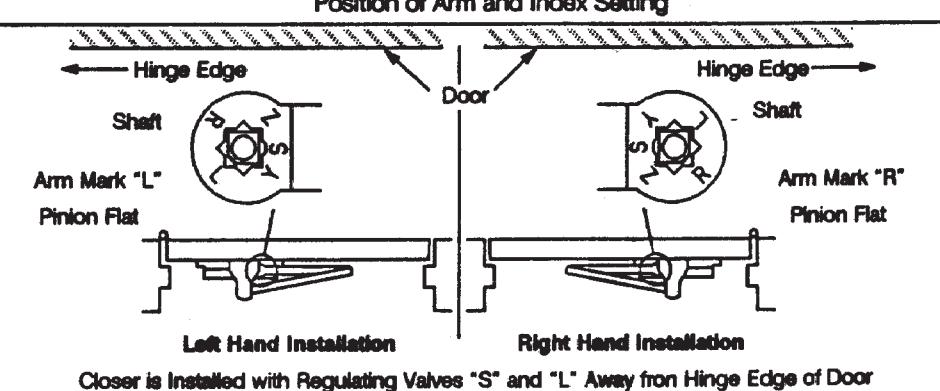

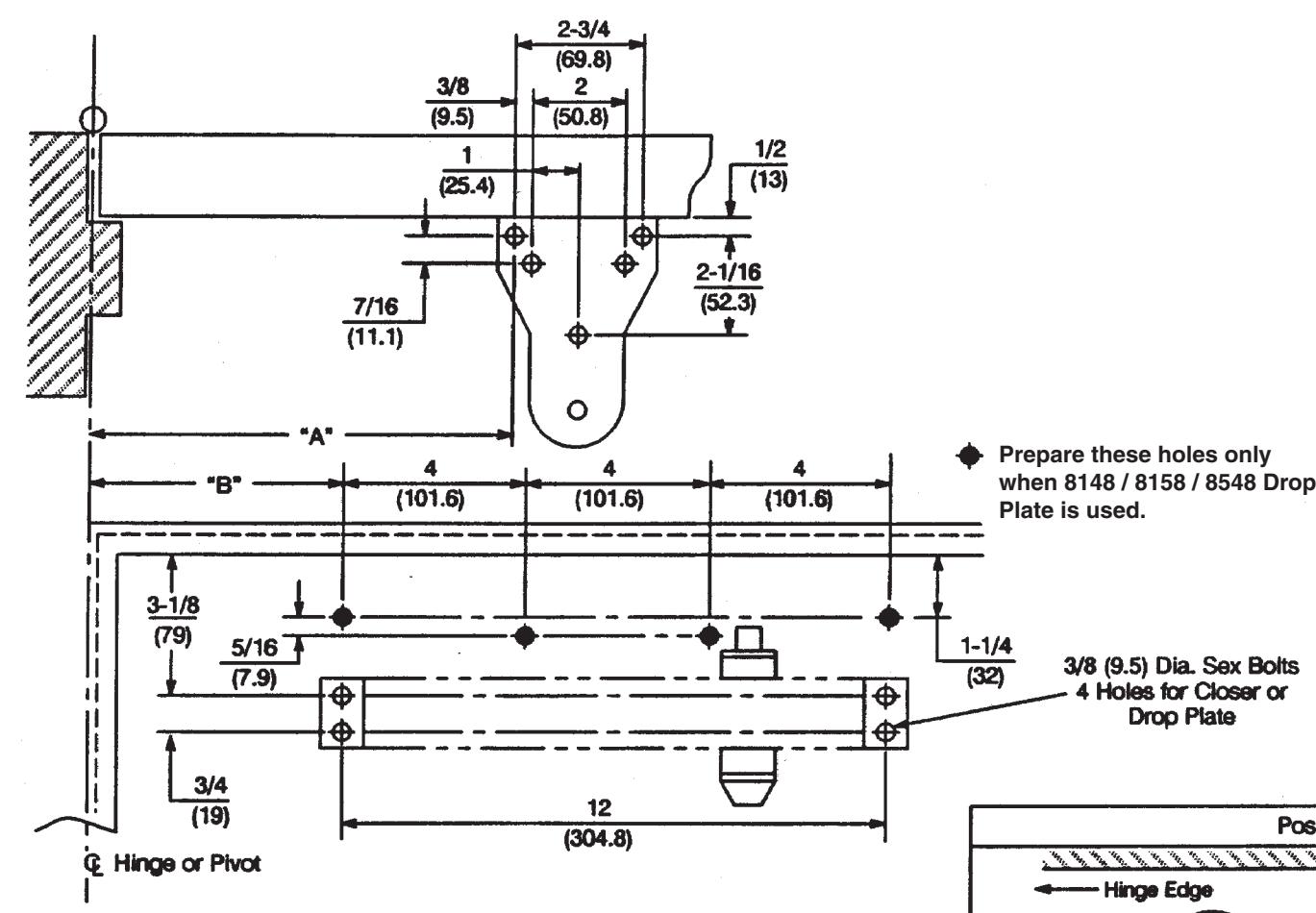

| Dim. "A" | Dim. "B" |
|---|---|
| 9-1/2 (241) | 3-3/4 (95) |
| 7 (178) | 1-1/4 (32) |
| 9-1/2 (241) |
| Closer Size "1" Power Setting | ||
|---|---|---|
| Max. Door Width | **Power | |
| interior | Exterior |
Adjustment
Required |
| 3' 0" | - | 3 turns |
| 3' 6" | 3' 0" | 4 turns |
| 4' 6" | 3' 6" | 7 turns |
| 5′ 0″ | 4' 0" | 9 turns |
| Maxi | mum | 13 turns |
NOTES:
- 1. Do not scale drawing.
- 2. Left hand door shown.
- 3. Dimensions are in inches.
- 4. Hollow-metal doors require channel or boxtype reinforcement when thru-bolt mount is specified.
- 5. Sex-bolts required for wood or plastic faced fire-door mounting.
- 6. Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .0146" (2.66mm) unless otherwise noted.
- 7. Hold Open function "T" Suffix, is not permitted in a fire-door assembly.
- 8. Maximum width hinges for this template are 5" (127mm)
PR8000 Series Non Hold Open or PR8000H Series Hold Open
Parallel Arm Application With or Without 8148 / 8158 / 8548 Drop Plate Closer Series PR8100, PR8300 & PR8500 Power Sizes 1, 2, 3, 4, 5, or 6
Approved 2022-06-06
TEMPLATE NUMBER REV
3 DATE
NORTON RIXSON
7380-0251 12/21
