| Preparation for Fasteners | ||
|---|---|---|
| Fasteners |
Door or
Frame |
Drill-Sizes |
|
#14 type "A"
S.M. screw |
Wood | 3/16" (4.30mm.) |
|
¼"-20 machine-
screw |
Metal |
drill: #7 (.201")
tap: '4"-20 |
| Sex-nuts and bolts (Optional) |
Hollow-
Metal |
9/32" (7.00mm.) through;
3/8" (9.50mm.) door-face opposite to closer |
|
Aluminum
or Wood |
3/8" (9.50mm.) through | |
| Through-bolt and grommet-nuts (Optional) | Ali |
9/32" (7.00mm.) through;
3/8" (9.50mm.) dia. x 3/8" (10mm.) deep door- face opposite to closer |

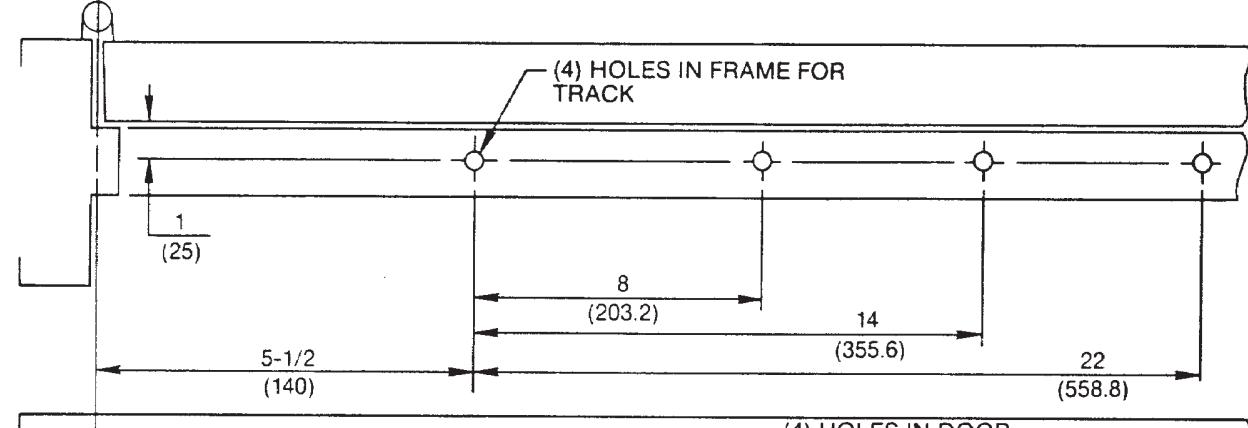

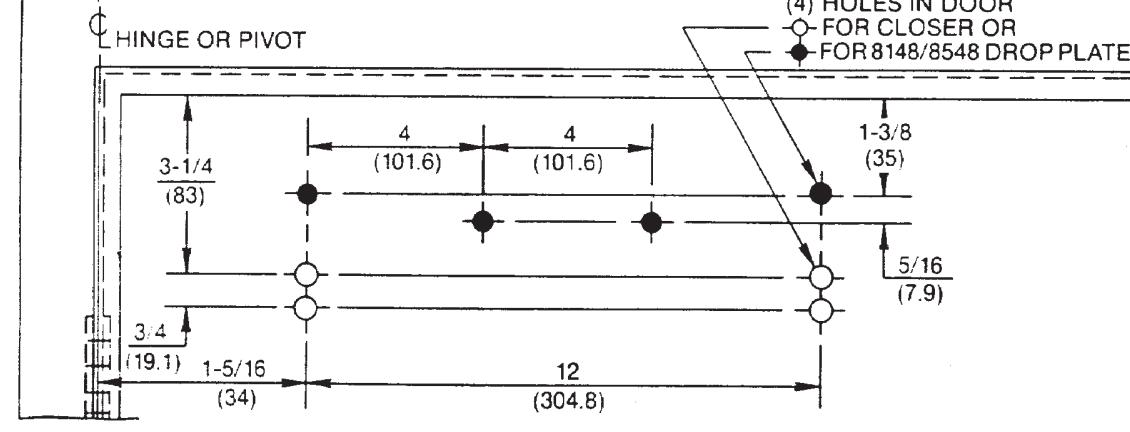

PS8300ST / PS8500ST Series Non Hold Open Door Closers PS8300ST-H / PS8500ST-H Series Hold Open Door Closers Opposite to Hinge Side Slide Track Application With or Without Drop Plate
NORTON RIXSON
TEMPLATE NUMBER REV
DATE
3 7380-0520 12/21
