Norton Rixson 8000 Series Door Closer,P8000,Parallel Arm,with or without 8148 Drop Plate,Non-Hold Open Template_7380-0201

(19)

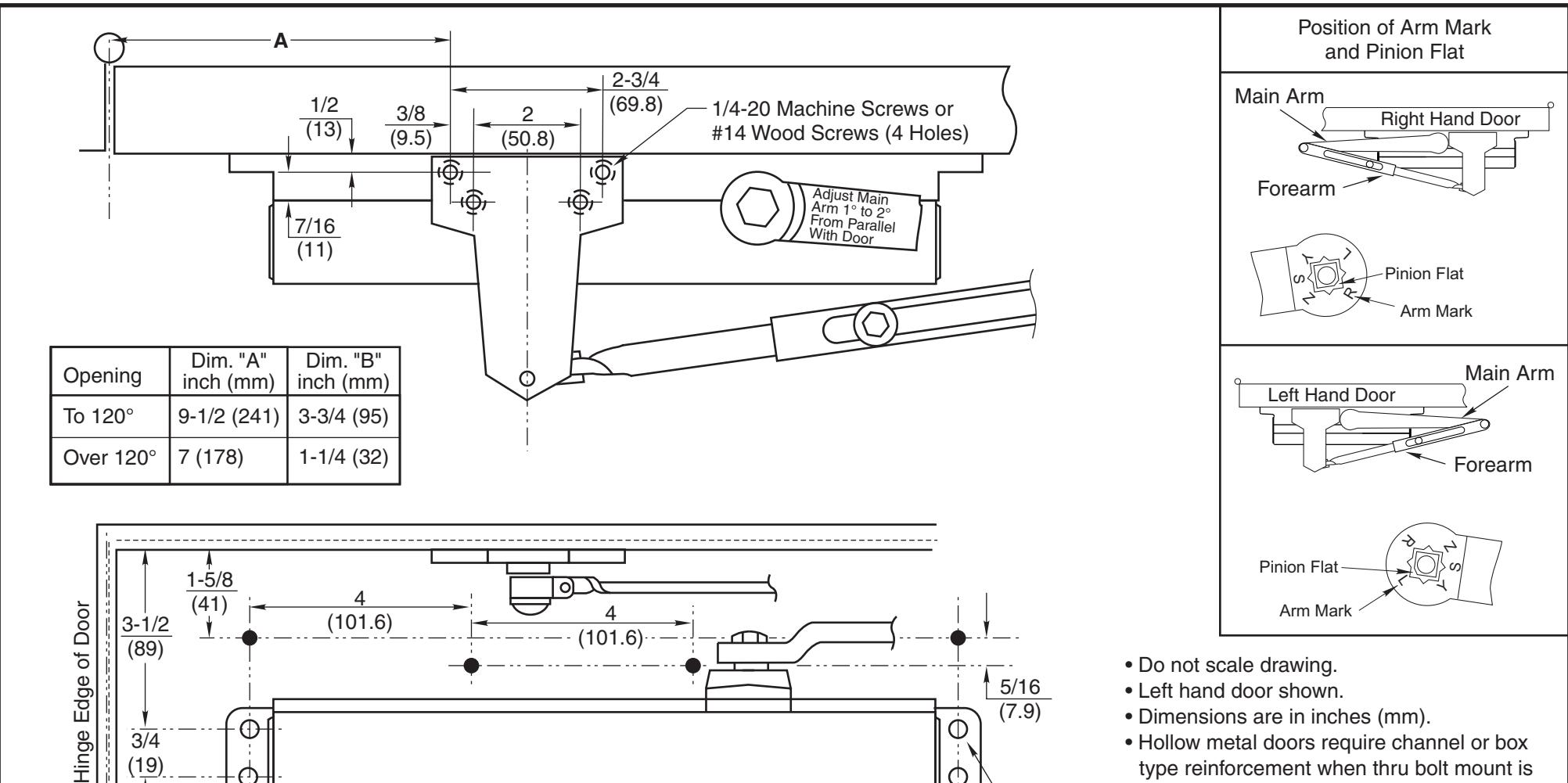

♥ Hinge

or Pivot

1/4-20 Machine Screws or

#14 Wood Screws (4 Holes)

• Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• Sex bolt required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046 (2.66mm) unless otherwise noted.

12

(304.8)

Prepare these holes only

and 8548 are used.

when Drop Plate 8148, 8158

RIXSON ASSA ABLOY

TEMPLATE NUMBER

12/21

3 7380-0201
