Norton Rixson 8000 Series Door Closer,P8000,Parallel Arm,with 2018S Bracket,with or without 8148 Drop Plate,Non-…_7380-0207
Open the original PDF document
View PDF

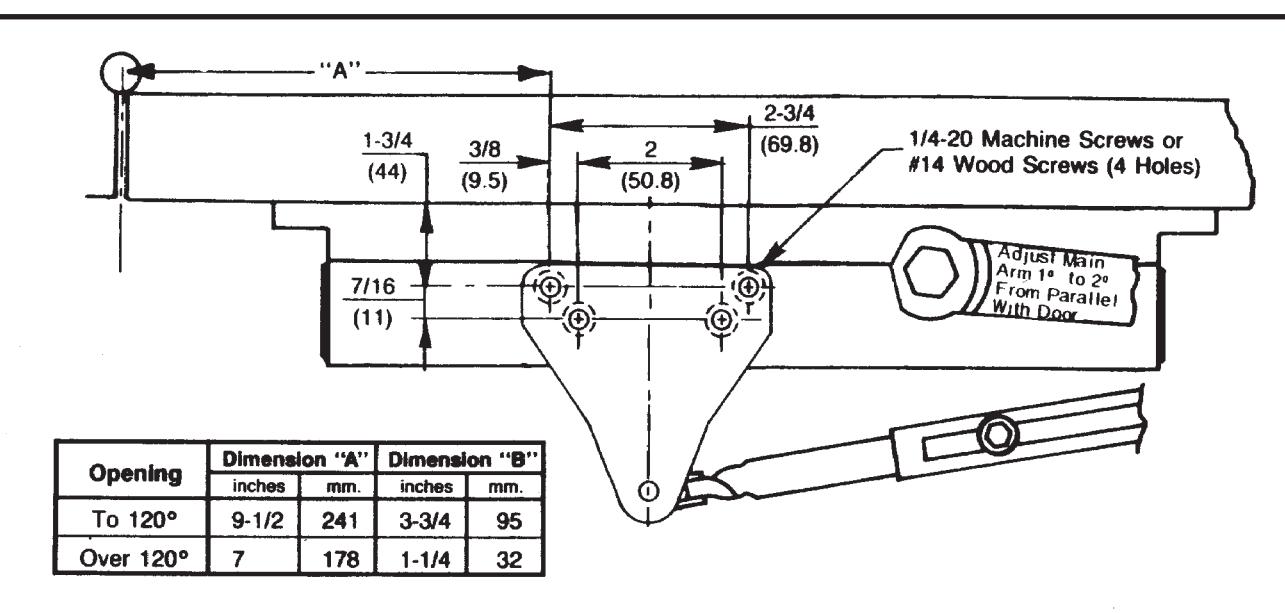

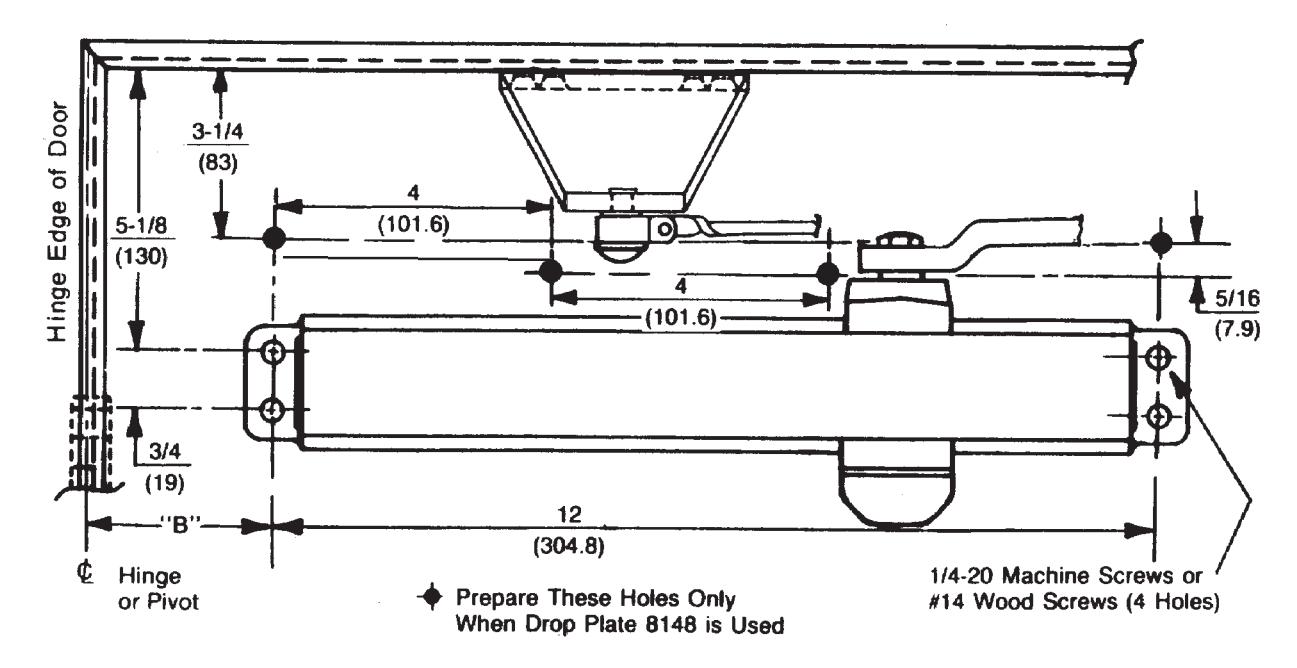

P8000 Series Door Closer Parallel Arm With 2018S Bracket Application With or Without 8148 Drop Plate P8100, P8300, and P8500 Sizes 1 Thru 6
NORTON RIXSON
TEMPLATE NUMBER REV
DATE
3 7380-0207 12/21
