Norton Rixson 8000 Series Door Closer,P8000,Parallel Arm with Offset Plate,with SP2018S Special Bracket,with or …_7380-0215

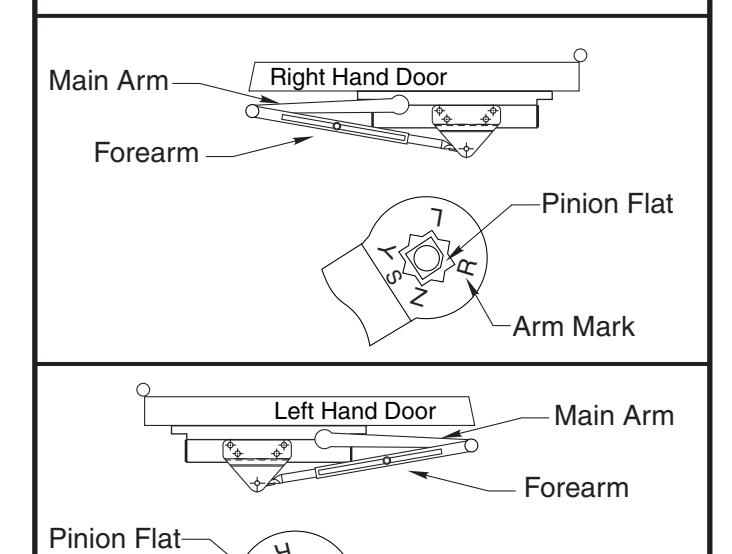

Position of Arm Mark and Pinion Flat

Notes:

L

Arm Mark

R

• Do not scale drawing.

S

Y

Z

• Left hand door shown.
• Dimensions are in inches (mm).
• Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
• Sex-bolts may be required for wood or plastic faced fire-door mounting.
• Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm) unless otherwise noted.

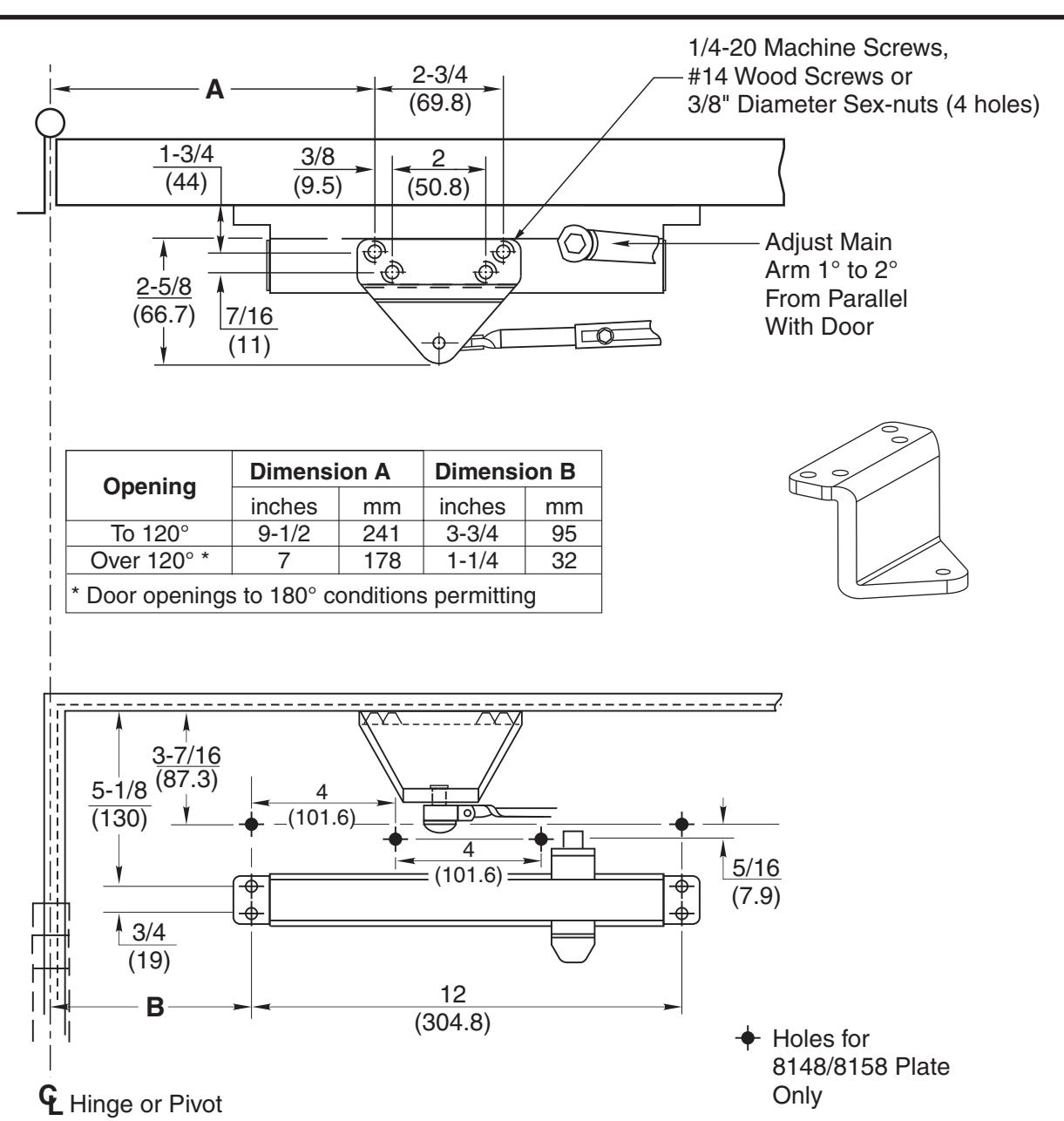

P8000 Series Door Closer With SP2018S Special Bracket And With Or Without 8148/8158 Drop Plate Parallel Non Hold Open Arm With Offset Plate Application Series P8100, P8300, And P8500 Door Closer Size 1 (Multi-size 1 Thru 6) Or Individually Sized 2, 3, 4, 5 Or 6

NORTON RIXSON

TEMPLATE NUMBER REV

DATE

3 7380-0215 12/21
