Norton Rixson 8000 Series Door Closer,J8080,Top Jamb,Low Profile with 8146 Back Plate,Non-Hold Open Template_7380-0161
Open the original PDF document
View PDF

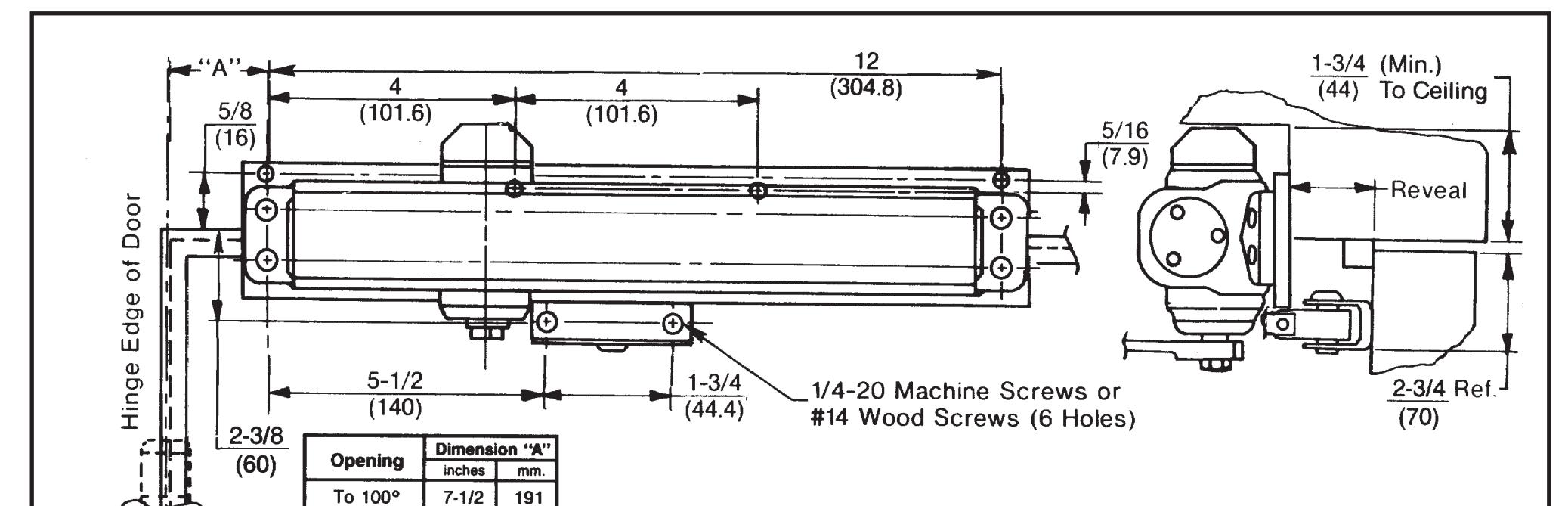

J8080 Series Door Closer Top Jamb Low Profile Application With 8146 Back Plate J8180, J8380, and J8580 Sizes 1 thru 6
NORTON RIXSON
TEMPLATE NUMBER REV
3 DATE
7380-0161 12/21
Approved 2022-02-26
