Norton Rixson 8000 Series Door Closer,CLP8000 (T),CPS8000 (T),CloserPlus or CloserPlus Spring Arm,with or withou…_7380-1303
Open the original PDF document
View PDF

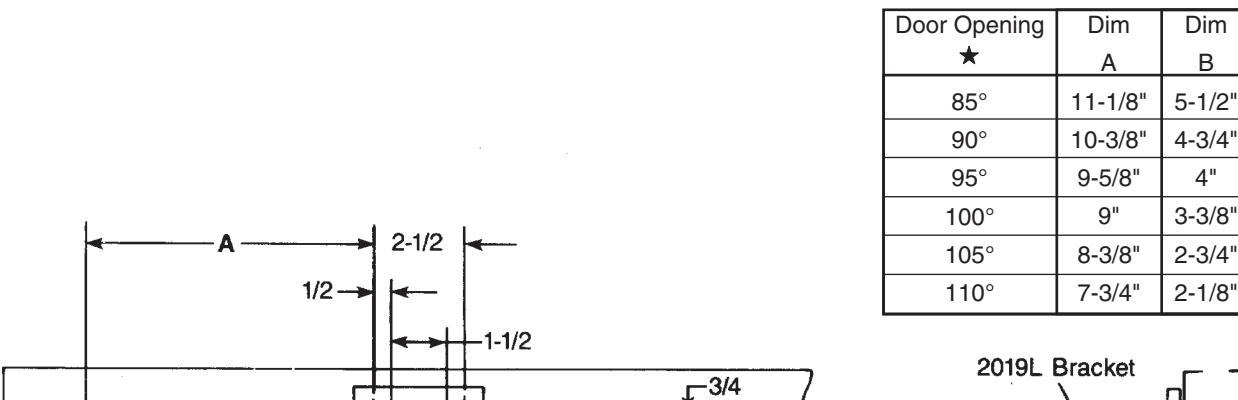

| 2019L Bracket | _ ¬ |
| `\ | |
| 2019 Soffit Plate \ | |
| inches | mm. | inches | mm. | inches | mm. | |
| • | 5/16 | 8 | 2-7/8 | 73 | 8-1/2 | 216 |
| 1/2 | 12.5 | 3-1/8 | 79.5 | 9-1/8 | 232 | |
| 3/4 | 19 | 3-1/2 | 89 | 9-3/4 | 247.5 | |
| 1-1/4 | 31.5 | 4 | 101.5 | 10-1/2 | 266 | |
| 1-1/2 | 38 | 4-1/8 | 104.5 | 11-1/4 | 286 | |
| 1-3/4 | 44.5 | 4-7/8 | 124 | 12 | 305 | |
| 2-1/4 | 57 | 5-5/8 | 143 | |||
| 2-1/2 | 63.5 | 8 | 203 |
Hold Open function, "T" suffix, is not permitted in a fire-door assembly.
Maximum width hinges for this template are 5" (127mm)
| Top View Typical Installation | |||||
|---|---|---|---|---|---|
| Left Hand Door Right Hand Door | |||||
| Stop | " and "L" Valves | ||||
| Pinion Flat | Pinion Flat | ||||
| For Adjustment Instructions See Inside Closer Cover | |||||
Holes for
Only
8148 / 8158 / 8548 Plate
| Fastener | Frame | Door | Drill |
|---|---|---|---|
| 1/4-20 machine screw | metal | none |
#7 (.201" dia.) or 5.10mm. drill.
1/4-20 tap |
| #14 type "A" sheet metal screw | wood | none | 3/16" (4.30mm.) |
|
SNB
(optional) |
none |
hollow
metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
|
aluminum
or wood |
3/8" (9.50mm.) thru |
® CLP-8300, CLP-8500 Series Door Closer with CloserPlus Arm or CPS-8300, CPS-8500 Series Door Closer with CloserPlus Spring™ Arm Parallel Arm x 2019L Bracket, with or without 8148 / 8158 / 8458 Drop Plate Arm Function: Stop Only or Stop & Hold Open ("T" or "R" Suffix) Power Sizes 1, 2, 3, 4, 5, or 6
TEMPLATE NUMBER REV
4 DATE 7380-1303 12/21
NORTON RIXSON
