Norton Rixson 8000 Series Door Closer,CLP8000 (T),CPS8000 (T),CloserPlus or CloserPlus Spring Arm,with or withou…_7380-1301

Prepare these holes only when 8148 / 8158 / 8548

Drop Plate is used.

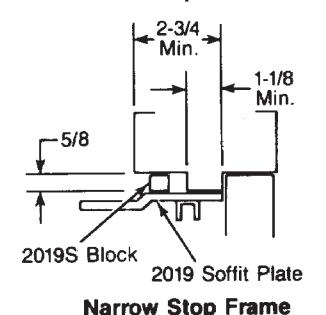

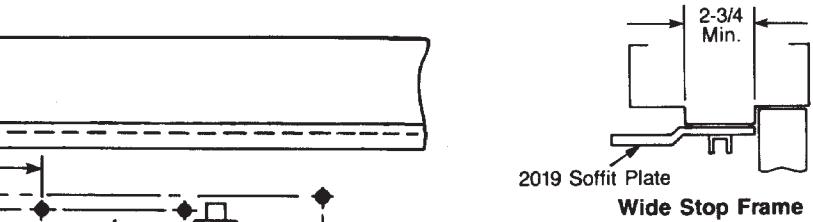

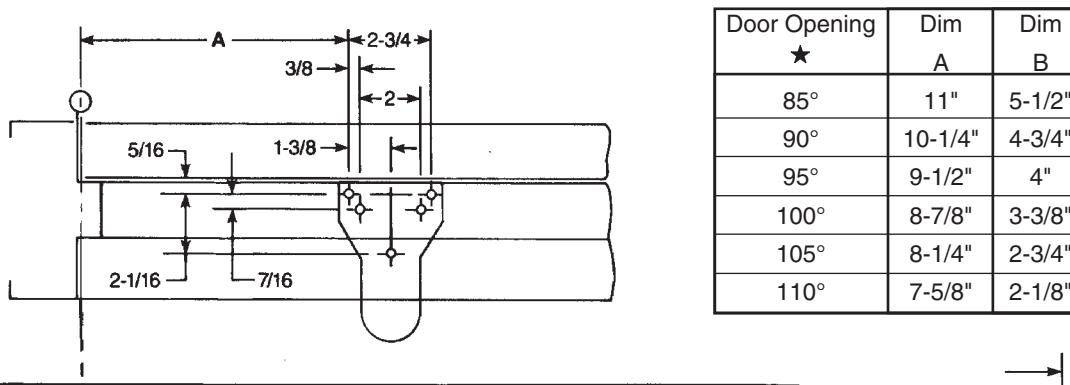

★Template dimensions are for hold open/door stop within^†2° of charted door openings. Doors may overtravel up to 5° beyond the rest position.

NOTES:

• 1. Do not scale drawing.
• 2. Left hand door shown.
• 3. Dimensions are in inches.
• 4. Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
• 5. Sex-bolts required for wood or plastic faced fire-door mounting.
• Minimum thickness recommended for reinforcements in hollowmetal doors and frames: .0146" (2.66mm).
• 7. Follow Conversion Chart for metric dimensions.
• 8. Hold Open function "T" Suffix, is not permitted in a fire-door assembly.
• 9. Maximum width hinges for this template are 5" (127mm)

inches	mm.	inches	mm.	inches	mm.
5/16	8	2-1/16	52.5	5-5/8	143
3/8	9.5	2-1/4	57	7-7/8	200
7/16	11	2-3/4	70	8-3/8	212.5
5/8	16	2-7/8	73	9	228.5
3/4	19	3-1/8	79.5	9-5/8	244.5
1-1/8	28.5	3-1/2	89	10-3/8	263.5
1-1/4	31.5	4	101.5	11-1/8	282.5
1-3/8	35	4-1/8	104.5	12	305
2	51	4-7/8	124

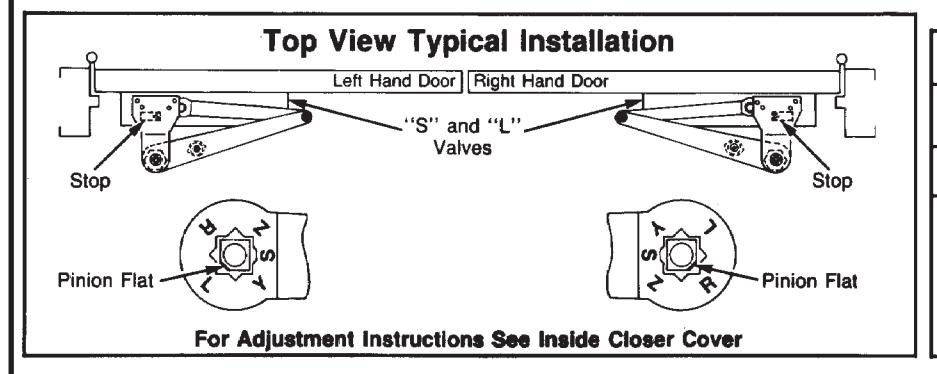

3-1/8

Hinge

or

Pivot

5/16

Fastener	Frame	Door	Drill
1/4-20 machine screw	metal	none	#7 (.201" dia.) or 5.10mm. drill. 1/4-20 tap
#14 type "A" sheet metal screw	wood	none	3/16" (4.30mm.)
SNB (optional)	none	hollow metal	9/32" (7.00mm.) thru 3/8"(9.50mm.) door face opposite to closer
		aluminum or wood	3/8" (9.50mm.) thru

CLP-8300, CLP-8500 Series with CloserPlus® Arm or CPS-8300 or CPS-8500 Series with CloserPlus Spring™ Arm Parallel Arm Standard Application With or Without 8148 / 8158 / 8548 Drop Plate Arm Function; Stop Only or Stop & Hold Open ("T" or "R" Suffix) Power Sizes 1, 2, 3, 4, 5 or 6

Approved 2022-02-26
