Norton Rixson 8000 Series Door Closer,8340ST,8540ST,8340STH,8340STH,Pull Side,Slide Track,Non-Hold Open or Hold …_7380-1501

Preparation for Fasteners Door or Frame Drill Sizes Fasteners # 14 type "A" SM. screw Wood 7/32" (5.56mm) Closer: 1-1/4" (32mm) Track: 2-3/4" (70mm) 1/4" -20 machine Metal drill:#7 (.201") tap: 1/4" -20 screw Sex-nuts and bolts Hollow Metal 9/32" (7.00mm) through 3/8" (9.50mm) door-face opposite to closer Aluminum or 3/8" (9.50mm) through Mood Through-bolts and 9/32" (7.00mm) through; grommet-nuts All 3/8" (9.50mm) dia. x (Optional) 3/8" (10mm) deep doorface opposite to closer

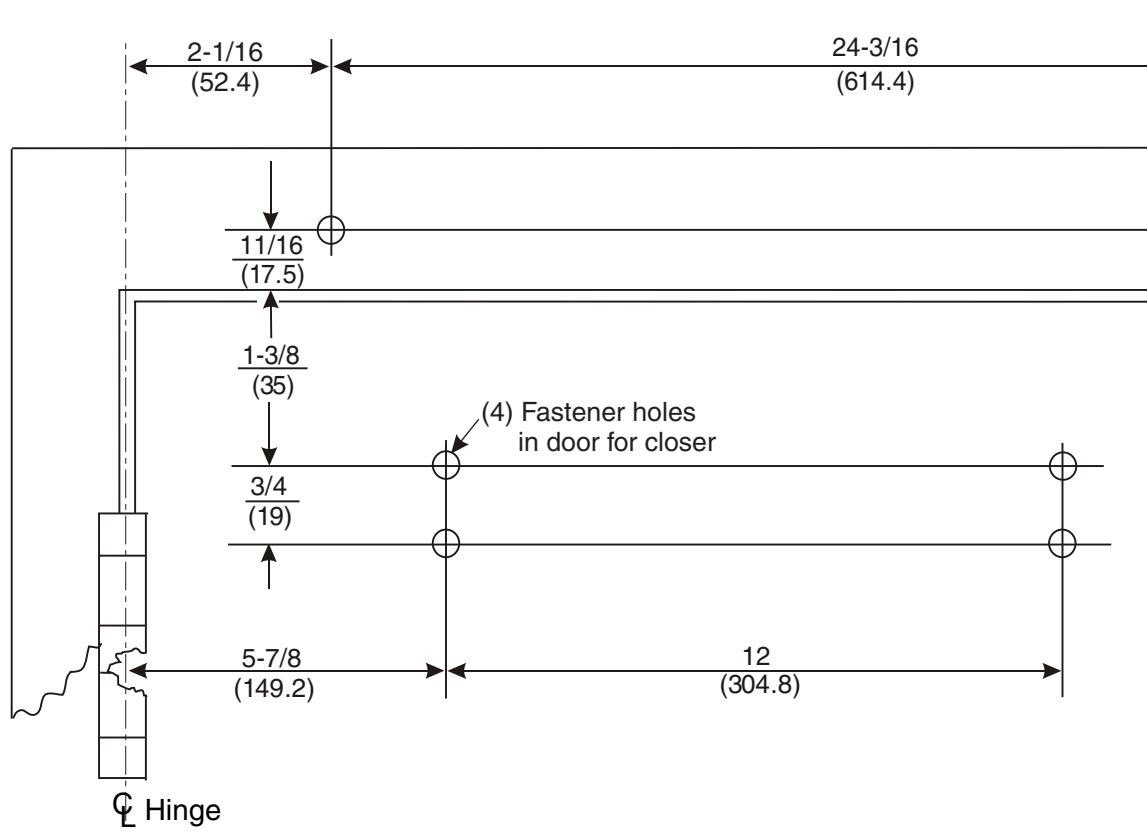

(2) Fastener holes in frame for track

Notes:

• Right hand door is shown.
• Do not scale drawing.
• .1046 (2.7mm) minimum thickness recommended for hollow metal door and frame reinforcement.
• From centerline of hinge to end of track 26-3/4" (679.5mm).
• . Minimum ceiling clearance for track is 1-1/2" (38.1mm).
• Dimensions are given in inches (mm).

• Maximum door opening: 110° recommended with cushion stop in track. 180° without cushion stop.
• Use of auxiliary door stop may be required to prevent damage to door, frame, or hinges.

8340ST, 8540ST Series Non Hold Open Door Closer 8340STH, 8540STH Series Hold Open Door Closer Pull (Hinge) Side Slide Track Application Closer Sizes 1, 4, 5, or 6

RIXSON ASSA ABLOY

TEMPLATE NUMBER

7380-1501 12/21
