Norton Rixson 8000 Series Door Closer,8300ST-DE,8500ST-DE,8300ST-DE-H,8500ST-DE-H,Hinge Side,Slide Track,Double …_7380-0511

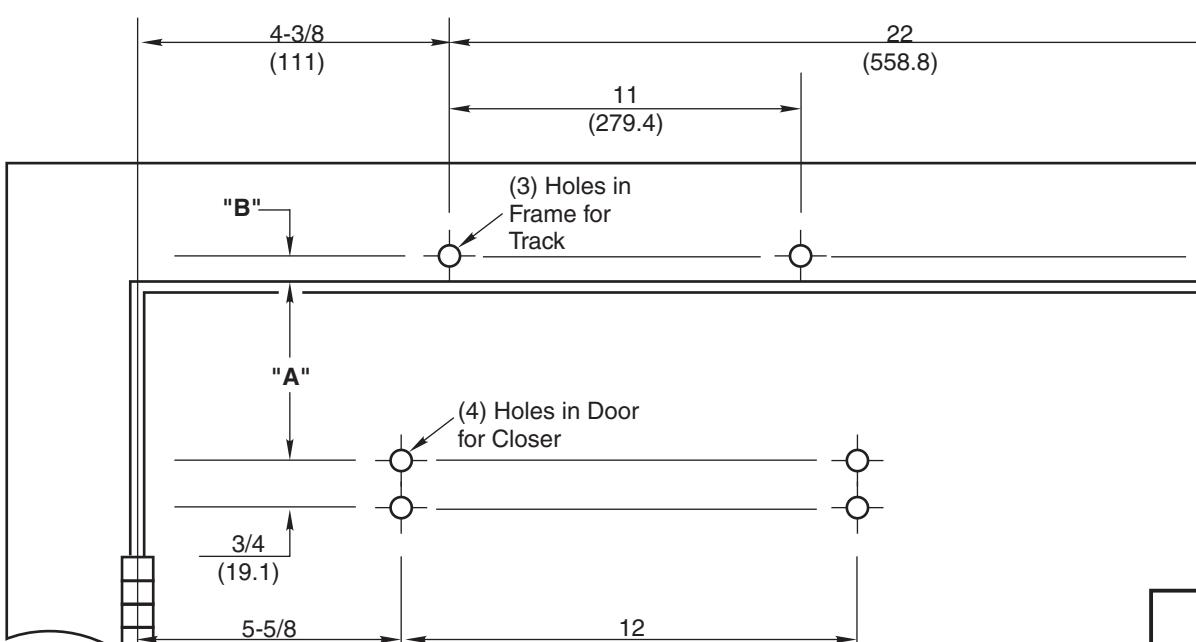

IMPORTANT: From centerline of pivot point to end of track is 26-7/8 (683mm)

REVEAL

Notes:

(304.8)

Frame Type Dim. "A" Dim. "B"

2 (51)

CL Hinge or Pivot

(143)

1-7/16 (36.5)

1-5/8 (41.3)

1-7/8 (48)

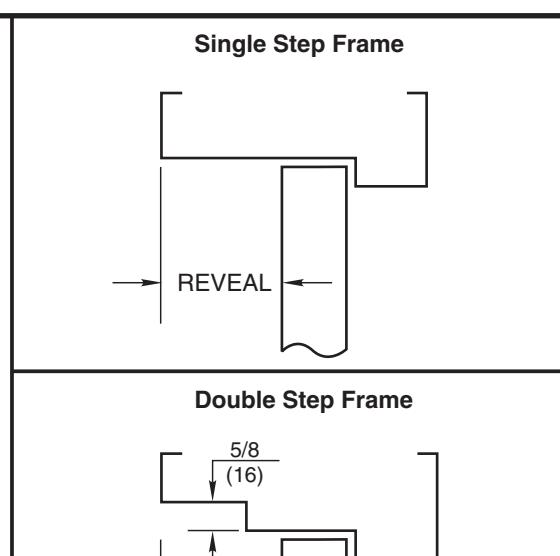

Single Step

Double Step

• Right hand door shown.
• Do not scale drawing.
• All dimensions shown in inches (mm) .
• Minimum ceiling clearance for unit is 2" (50mm.).
• Maximum door opening 105° for:
  • Non Hold Open with Spring Buffer
  • Non Hold Open without Spring Buffer
  • Hold Open

Preparation for Fasteners
Fasteners	Door or Frame	Drill Sizes
#14 Type "A" S.M. Screw	Wood	3/16" (4.30mm.)
1/4" -20 Machine Screw	Metal	drill: #7 (.201") tap: 1/4"-20
Sex Nuts And Bolts (optional)	Hollow Metal	9/32" (7.00mm) through 3/8" (9.50mm) door face opposite to closer
	Aluminum Or Wood	3/8" (9.50mm) through
Through Bolts And Grommet Nuts (optional)	All	9/32" (7.00mm) through 3/8" (9.50mm) dia. x 3/8" (10mm) deep door face opposite to closer

8300ST-DE / 8500ST-DE Series Non Hold Open Door Closers 8300ST-DE-H / 8500ST-DE-H Series Hold Open Door Closers Hinge Side Slide Track Application For Double Egress Frame Hinge Side Frame Reveals 1/8" to 3" (3 to 76mm)

NORTON RIXSON

TEMPLATE NUMBER REV

3 DATE 7380-0511 12/21
