Norton Rixson 8000 Series Door Closer Regular Hold Open 8100H, 8300H, 8500H Sizes 1 Thru 6 Template_7380-0105

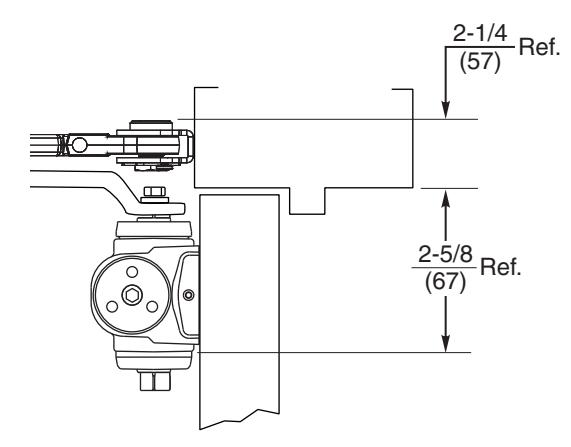

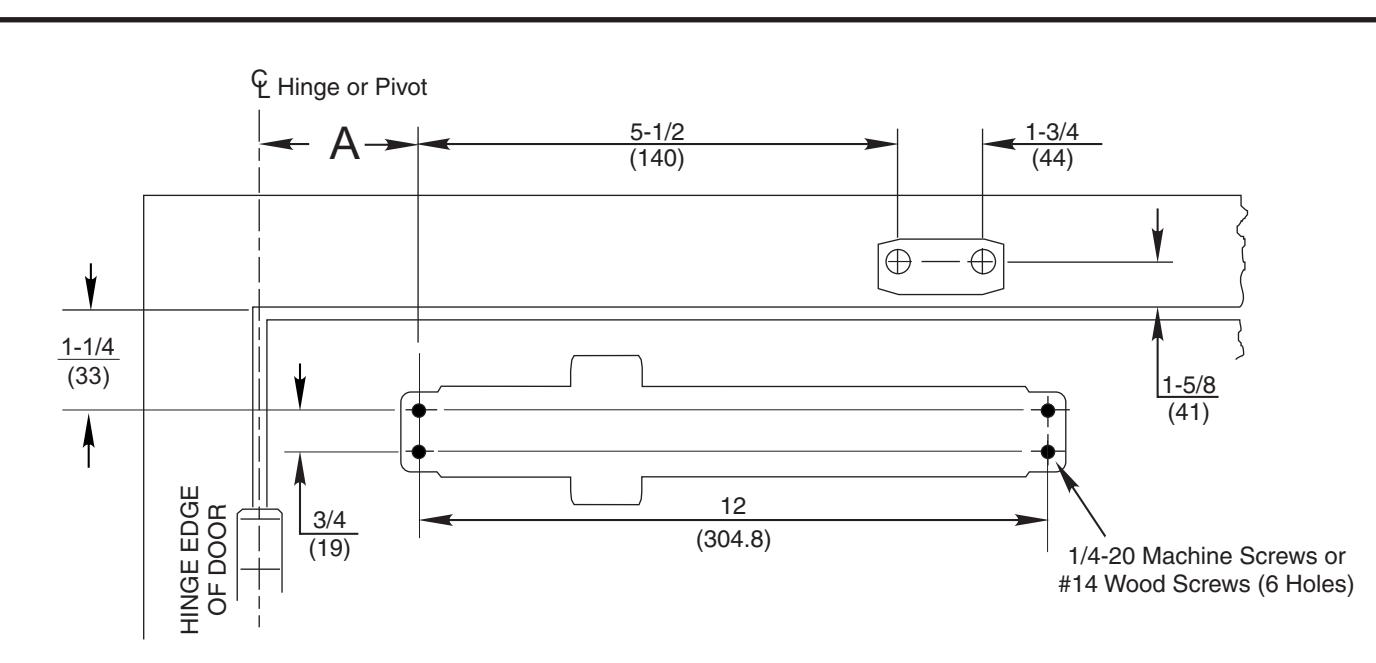

Opening	Dimension "A"
To 100°	7-1/2 (191)
101° to 130°	6 (152)
131° to *180°	4-1/2 (114)

*Door/Wall/Hardware/Jamb conditions permitting

Notes:

• 1. Do not scale drawing.
• 2. Right hand door shown.
• 3. Dimensions given in inches (millimeters).
• 4. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
• 5. Sex bolts required for wood or plastic faced fire door mounting.
• 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.

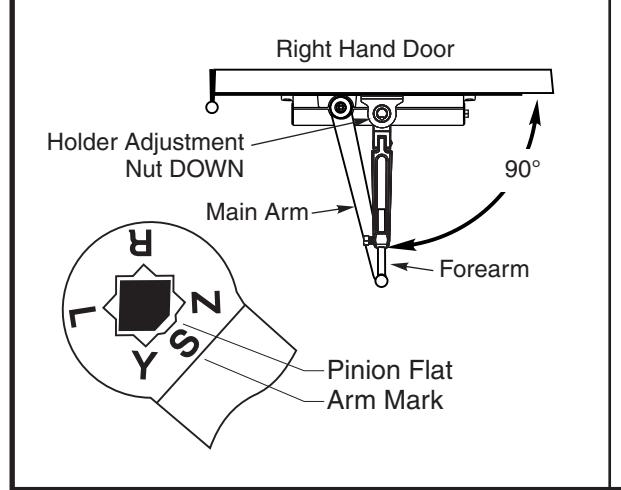

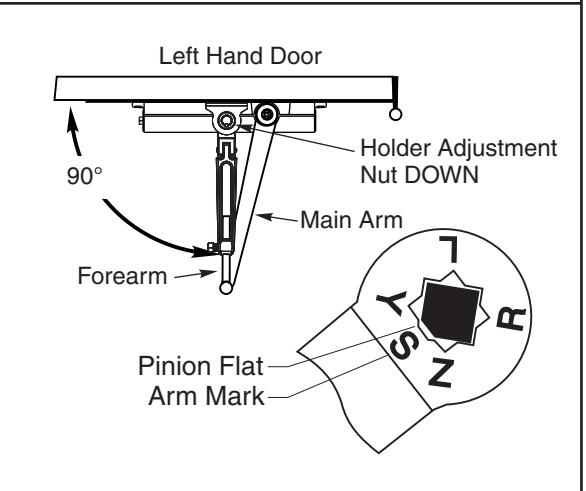

Position of Arm and Pinion Flat

8000 Series Door Closer Regular Hold Open Application 8100H, 8300H, and 8500H

RIXSON ASSA ABLOY

TEMPLATE NUMBER

01/22 7380-0105

Approved 2022-02-26
