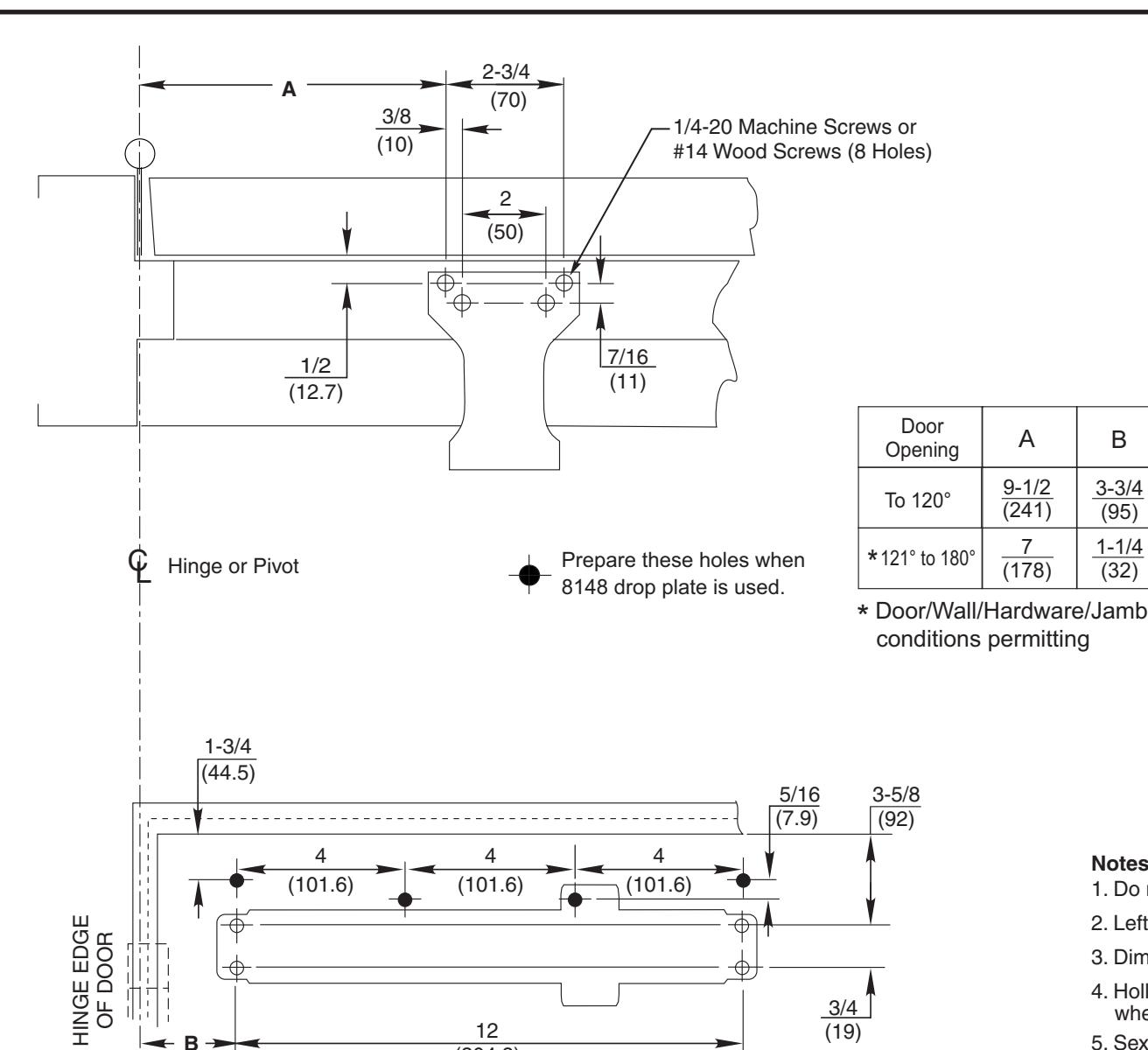

Norton Rixson 8000 Series Door Closer, P8000H, Parallel Arm, with or without 8148 Drop Plate, Hold Open Template_7380-0211

12

(304.8)

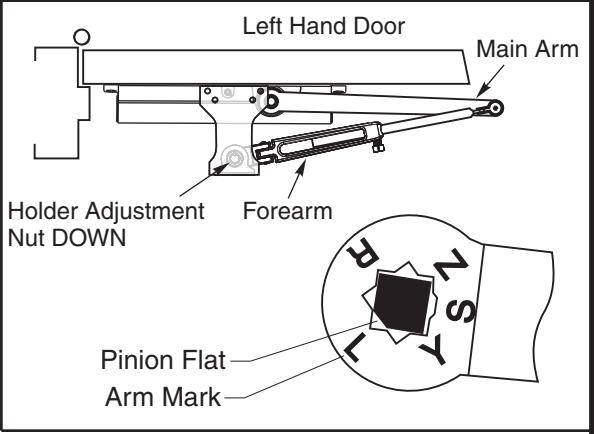

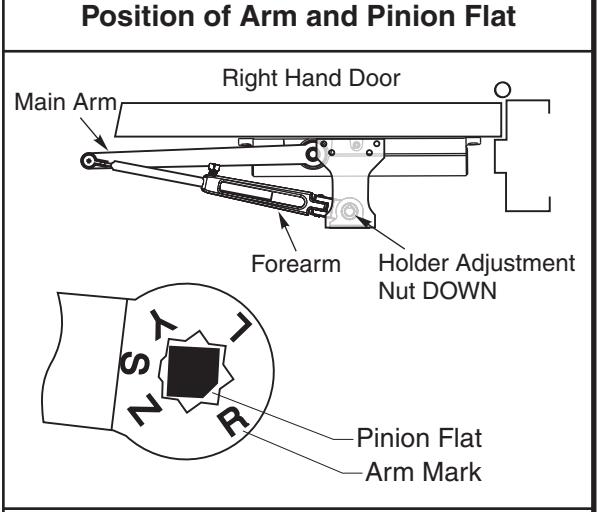

Notes:

В

• 1. Do not scale drawing
• 2. Left hand door shown.
• 3. Dimensions given in inches (millimeters).
• 4. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
• 5. Sex bolts required for wood or plastic faced fire door mounting.
• 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.

P8000H Series Door Closers Parallel Hold Open With or Without 8148 Drop Plate P8100H, P8300H, and P8500H Sizes 1 thru 6 Approved 2022-02-26

3/4

(19)

RIXSON ASSA ABLOY

TEMPLATE NUMBER

DATE

01/22 7380-0211 3
