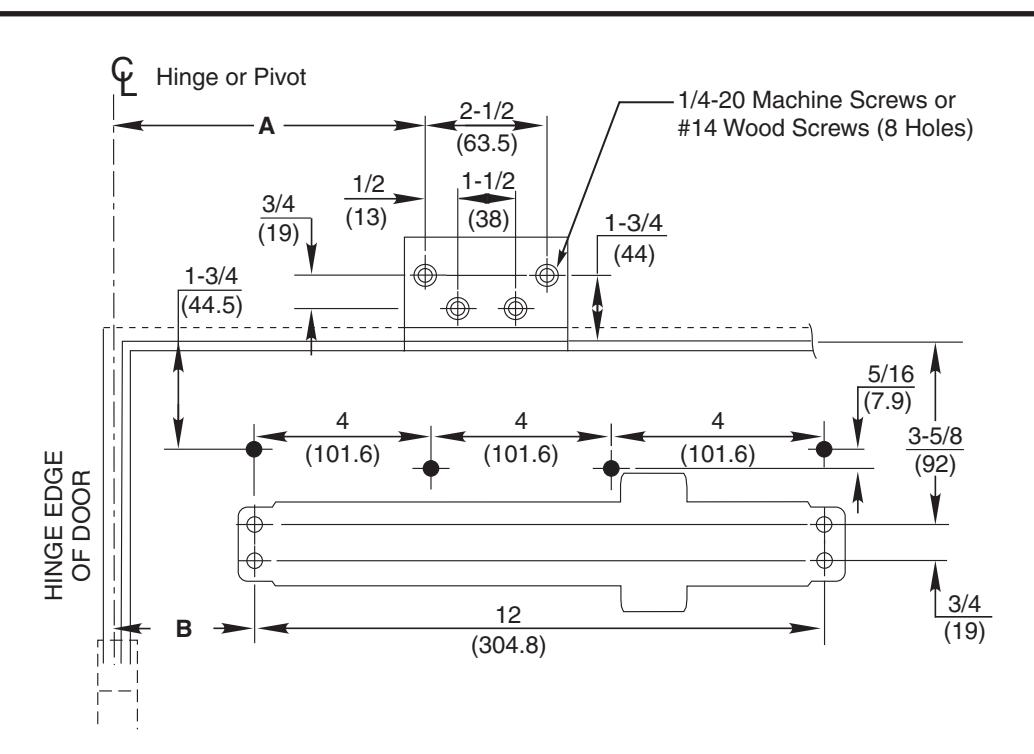

Door
Opening |
А | В |
|---|---|---|
| To 120° |
9-1/2
(241) |
3-3/4
(95) |
| *121° to 180° |
|
1-1/4
(32) |
* Door/Wall/Hardware/Jamb conditions permitting
Position of Arm and Pinion Flat Right Hand Door Main Arm Forearm Holder Adjustment Nut DOWN Pinion Flat -Arm Mark Left Hand Door Main Arm Holder Adjustment Forearm Nut DOWN
Notes:
- 1. Do not scale drawing
- 2. Left hand door shown.
- 3. Dimensions given in inches (millimeters).
- 4. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
Pinion Flat
Arm Mark
- 5. Sex bolts required for wood or plastic faced fire door mounting.
- 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.

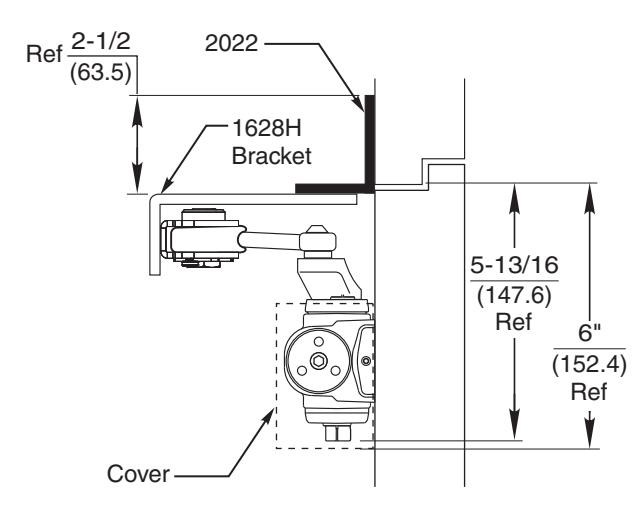

P8000H Series Door Closers Parallel Hold Open With 2022 x 1628H Bracket and With or Without 8148 Drop Plate P8100H, P8300H, and P8500H
NORTON RIXSON ASSA ABLOY
TEMPLATE NUMBER
REV DATE 3 01/22
7380-0212
