8000 Series Door Closer

Non Hold Open Top Jamb Model Installation Instructions

ASSA ABLOY

! WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65warnings.ca.gov.

An incorrectly installed or improperly ◙ adjusted door closer can cause property damage or personal injury. These instructions should be followed to avoid the possibility of misapplication or misadjustment.

JS8101/JS8301/JS8501 Series

Adjustable Power Size 1-6

NOTES:

• For Special Applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

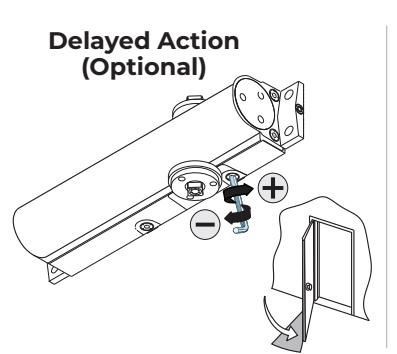

• "DA" Suffix Delayed Action closing is an optional feature.

READ AND FOLLOW ALL INSTRUCTIONS. SAVE THESE INSTRUCTIONS.

The closing force for series JS8101, JS8301, and JS8501 door closers is adjustable from a size 1 to a size 6, as outlined in ANSI Standard A156.4. When these series of door closers are installed and adjusted to conform to ADA reduced opening force requirements (5 lbs max.) for interior doors, they may not have adequate closing force to reliably close and latch the door. Power adjustments charted on page 4 are recommended where possible, to ensure proper door control.

NOTES:

• For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.
• "DA" suffix (Delayed Action) is an optional feature.
• Doors should be hung on ball bearing or anti-friction hinges.
• A separate door stop is recommended.
• Door and frame must be properly reinforced.
• · Always adjust spring power before adjusting control valves.
• Adjust closing time speed between 3 and 7 seconds from 90° to 0°. Greater closing times may be required for elderly or handicapped.
• These door closers should NOT be installed on the exposed side (weather side) of exterior doors.

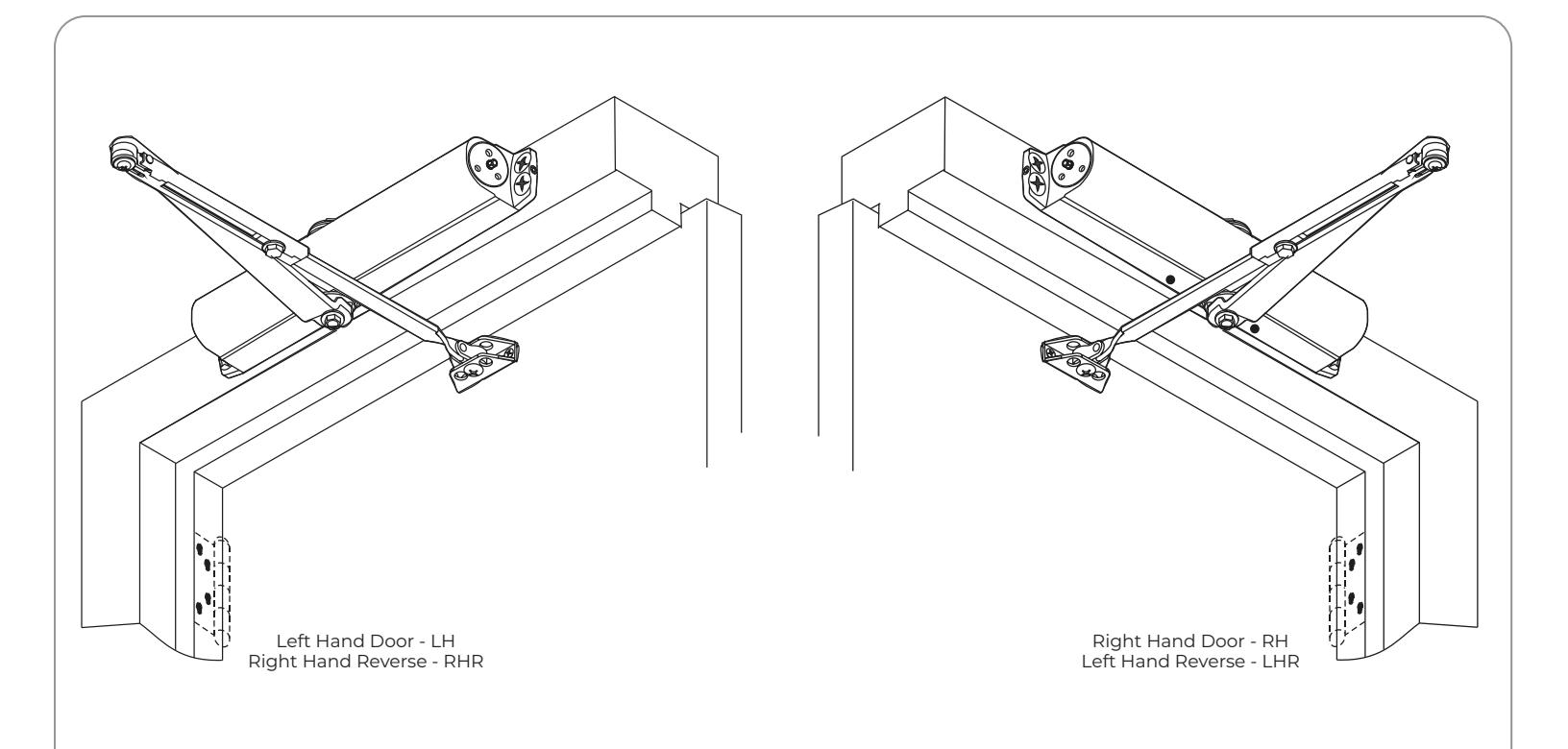

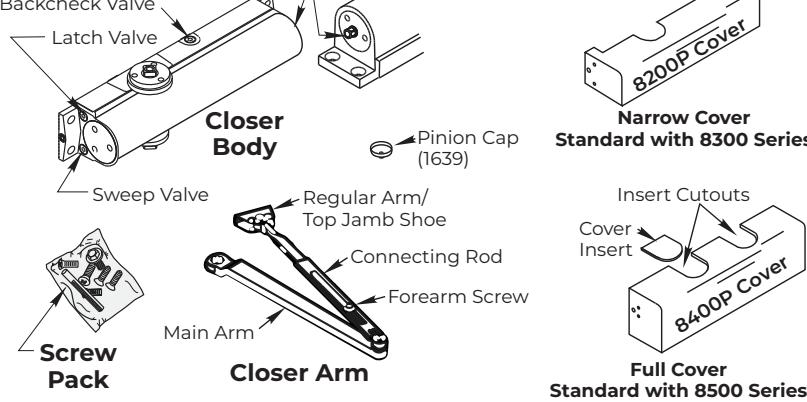

8000 Series Non Hold Open Door Closer - Top Jamb Arm

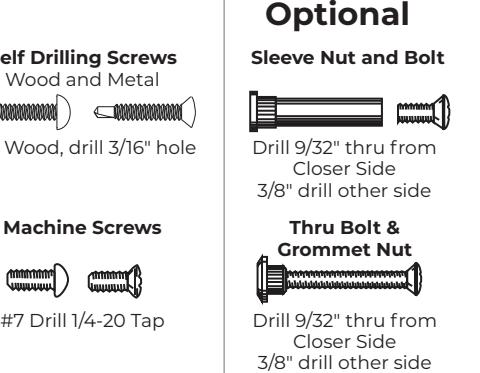

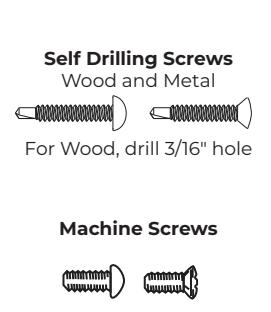

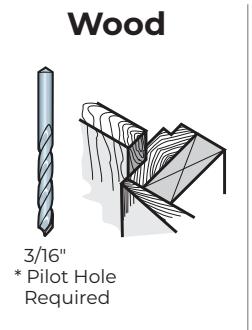

Tools Required

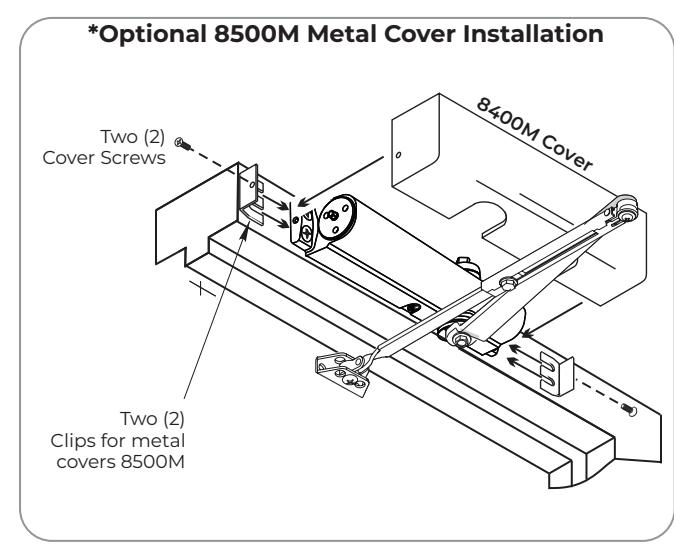

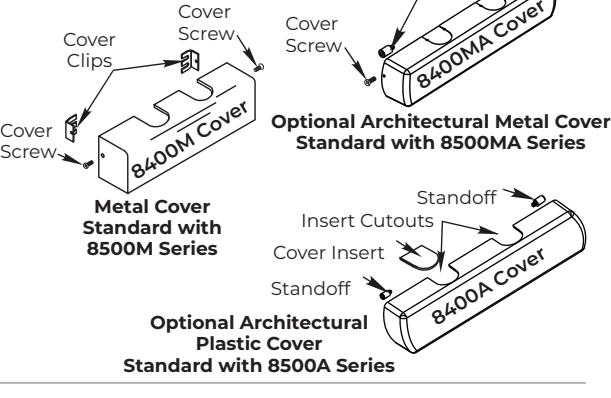

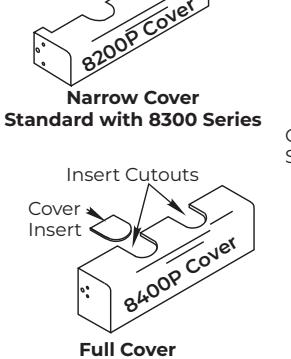

Cover Screw

Standoffs

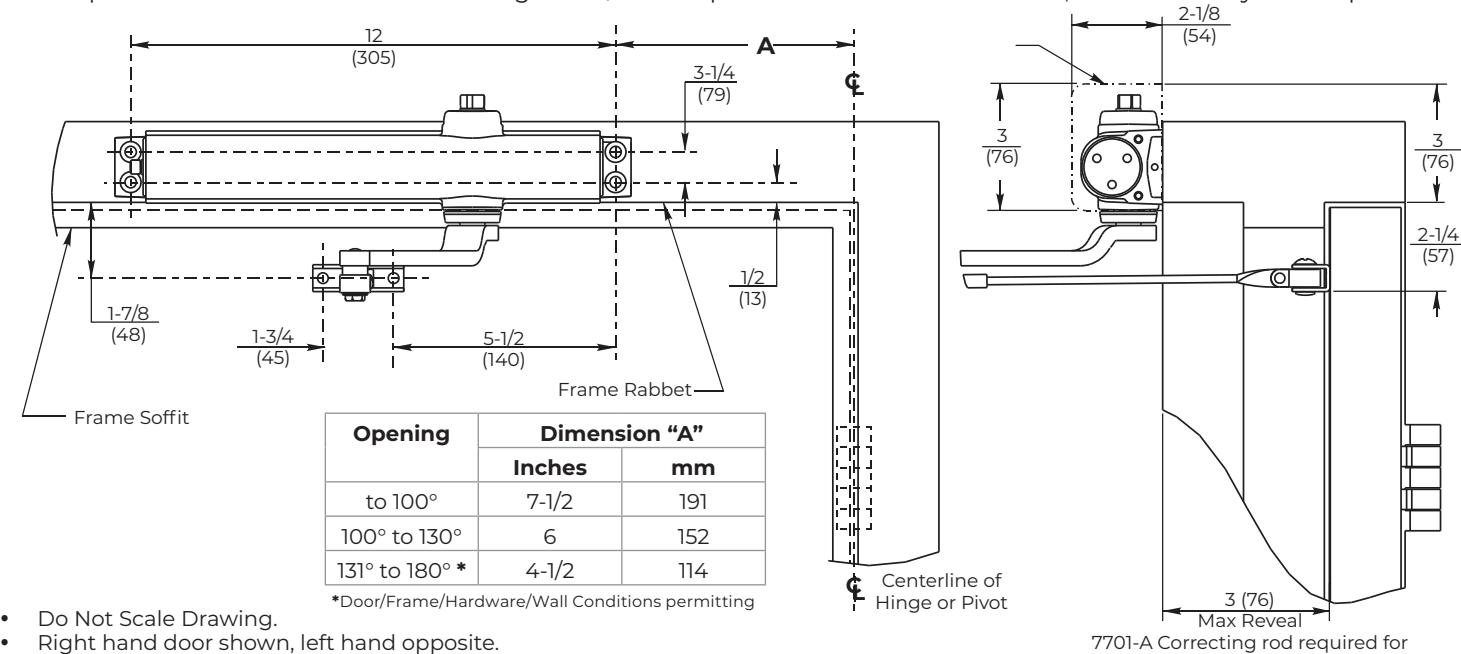

Mark and Drill Holes

This template for use with standard butt hinges or 3/4 offset pivots. For all other hardware, consult factory for template.

• y Dimensions are in inches (mm).
• y Hallow metal door requires channel or box type reinforcement when through bolt mount is specified.
• y Sex bolts required for wood or plastic faced fire door mounting.
• y Minimum thickness recommended for reinforcements in hallow metal doors and frames: .0146" (2.66mm) unless otherwise specified.
• y Maximum width hinge for this template is 5" (127)

reveals greater than 3 (76)

8000 Series Non Hold Open Door Closer - Top Jamb Arm

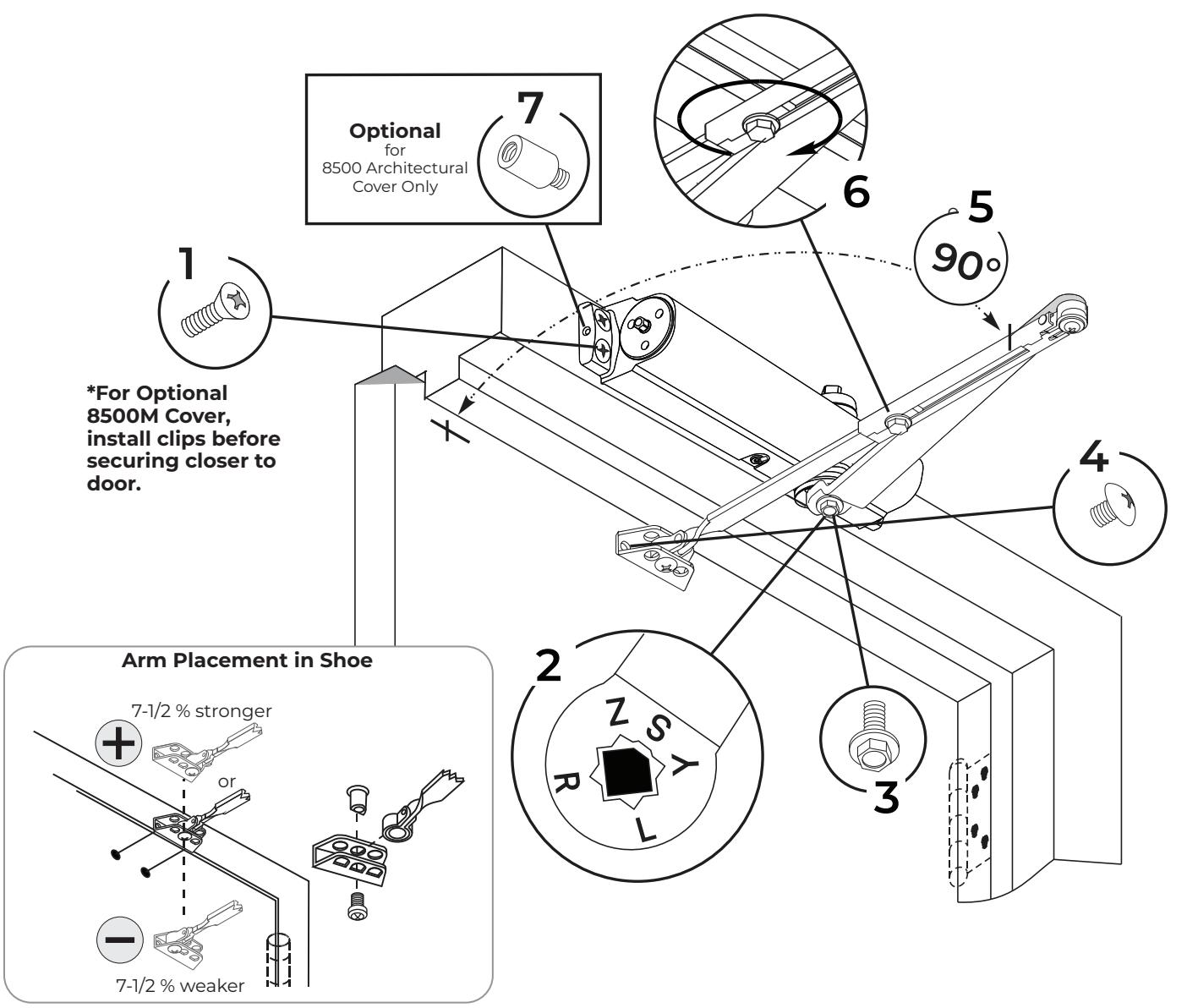

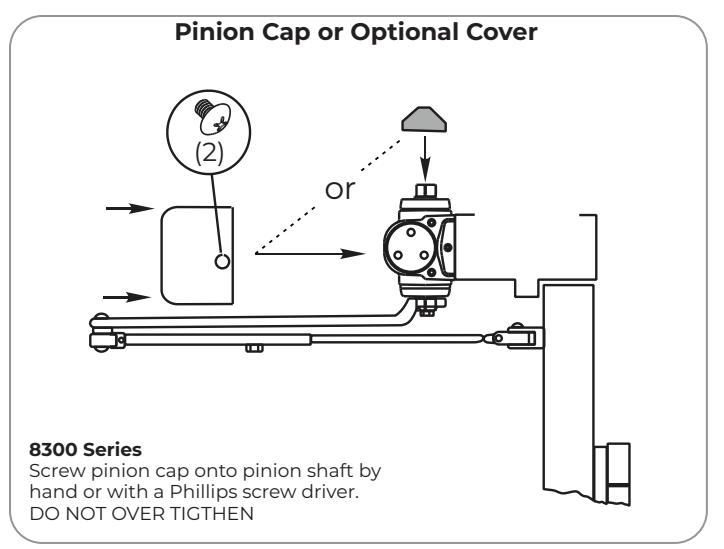

Installation Sequence

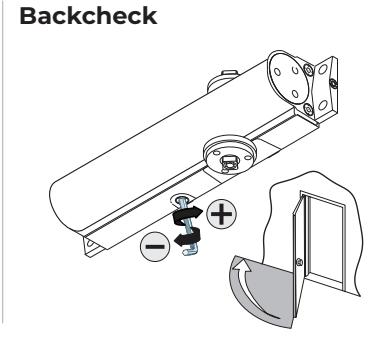

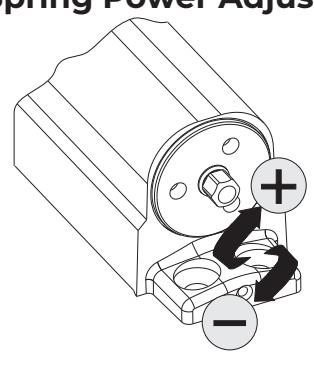

Adjustments Spring Power Adjust

(Use 5/16" socket or adjustable wrench for Adjustment)

Adjustment Chart Regular Arm JS8101/JS8301/JS8501		Number of Turns Required
DOOR	*	MAXIMUM DOOR SIZE
		32" (81cm)	36" (91cm)	42" (107cm)	48" (122cm)
INTERIOR	Full 360° turns of 5/16 Power Adjustment Wrench	5	8	11	13
EXTERIOR		7	10	13	16

*Twenty (20) 360° Turns Maximum Available

Closer is shipped set at mid range setting = 10 turns

By law the Americans with Disabilities Act (ADA) may require that door closer installation comply with accessibility guidelines.

The closing force for series JS8101, JS8301 & JS8501 door closers is adjustable from a size 1 to a size 6, as outlined in ANSI Standard A156.4. When these series of door closers are installed and adjusted to conform to ADA reduced opening force requirements (5 lbs max.) for interior doors, they may not have adequate closing force to reliably close and latch the door. Power adjustments charted on this page are recommended where possible, to ensure proper door control.

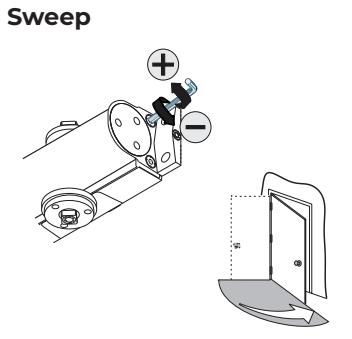

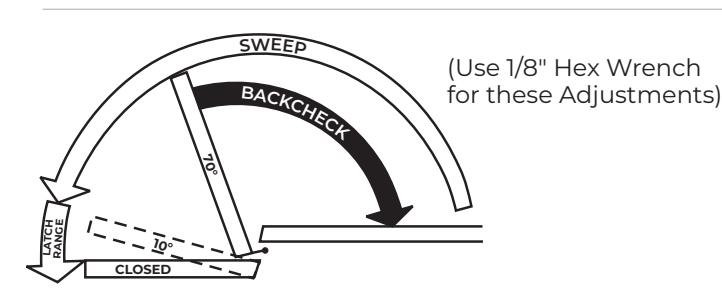

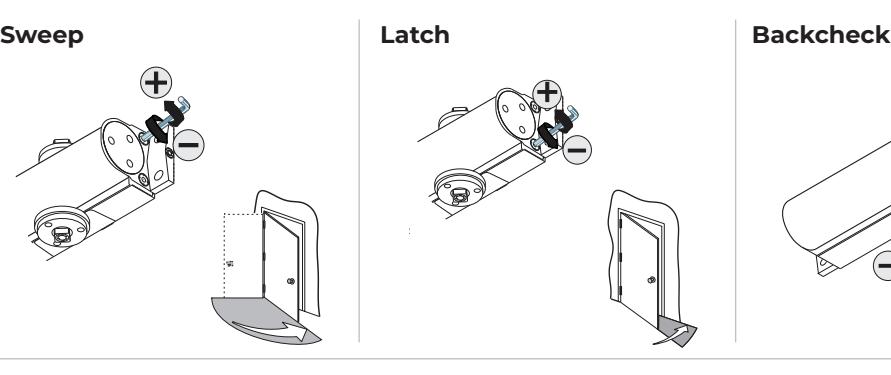

Adjust Closing Speed Time to between 3 to 7 seconds from 90°. Use of the door by handicapped, elderly or small children may require greater closing time.

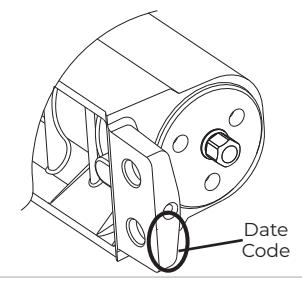

To Determine Date Code:

Technical Product Support: Monroe, NC 28112 USA

Phone: 877.974.2255 ext: 2
