Norton Rixson 8000 Series Door Closer, J8000H, Top Jamb, with 8146 Back Plate, Hold Open Template_7380-0153
Open the original PDF document
View PDF

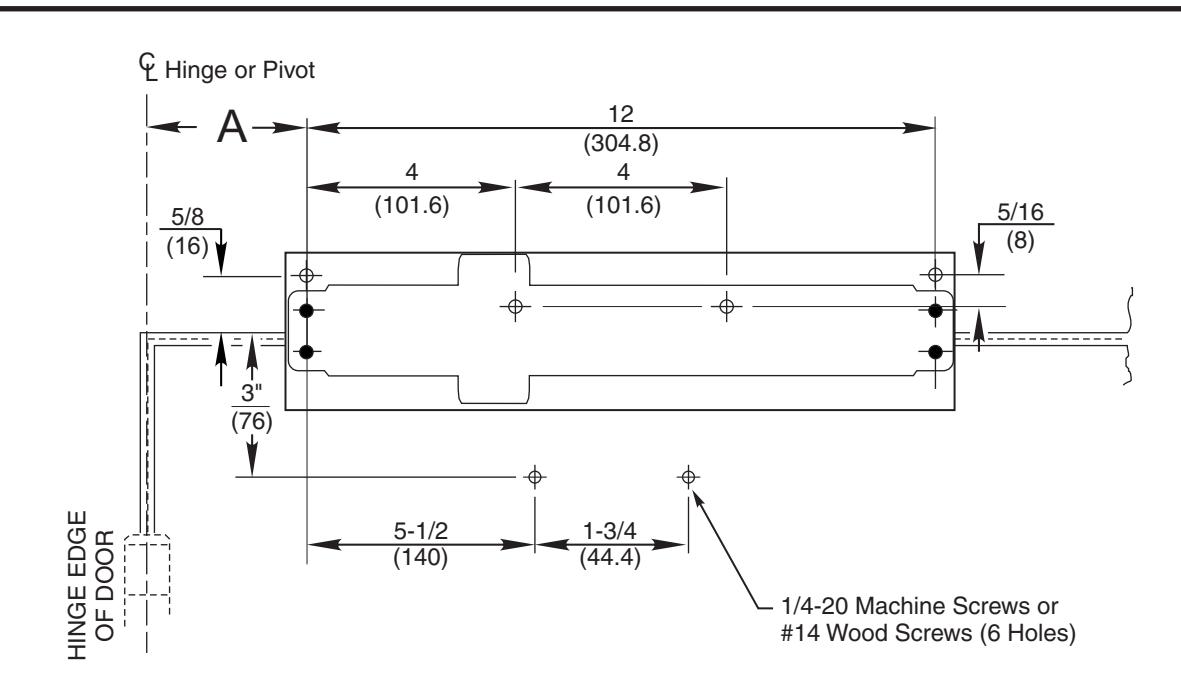

Ceilina Reveal 3-9/16 (90.5) Ref.
| Opening | Dimension "A" |
| To 100° |
7-1/2
(191) |
| 101° to 130° |
6
(152) |
| 131° to *180° |
4-1/2
(114) |
*Door/Wall/Hardware/Jamb conditions permitting

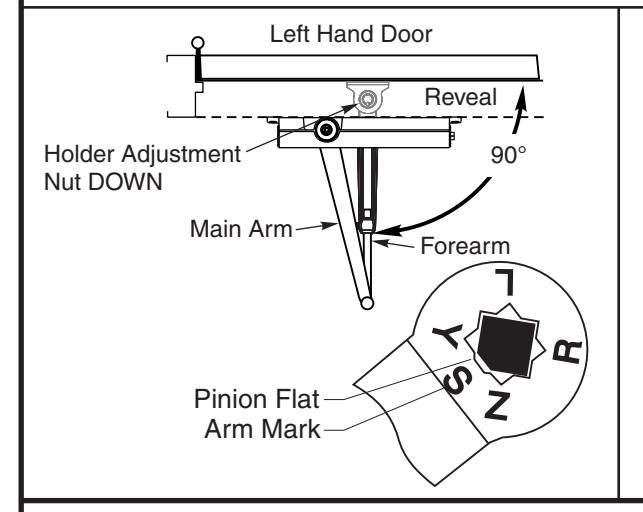

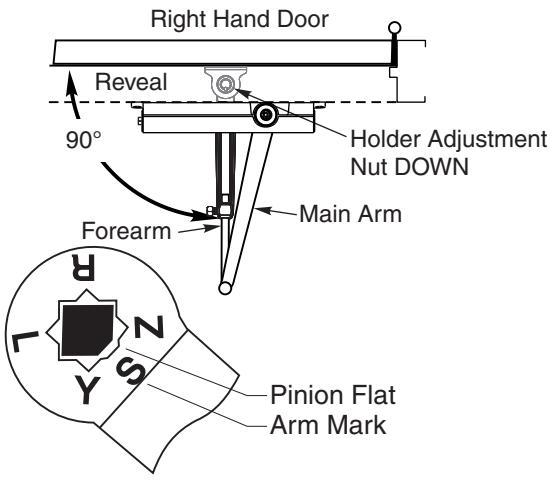

Position of Arm and Pinion Flat
Notes:
- 1. Do not scale drawing.
- 2. Left hand door shown.
- 3. Dimensions given in inches (millimeters).
- 4. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
- 5. Sex bolts required for wood or plastic faced fire door mounting.
- 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
- 7. Use regular length rod for reveals to 3" (76mm). Use long rod for reveals 2-3/4" (70mm) to 6-3/4" (171mm).
J8000H Series Door Closer Top Jamb Hold Open Application with 8146 Back Plate J8100H, J8300H, and J8500H Sizes 1 thru 6
NORTON RIXSON ASSA ABLOY
TEMPLATE NUMBER 7380-0153
01/22
Approved 2022-02-26
