CloserPlus Ramp™ Door Closer

Non Hold Open Push Side Installation Instructions

CAUTION

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65warnings.ca.gov.

Hold open Arm Models: CLP8101R/CLP8301R/CLP8501R

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments

READ AND FOLLOW ALL INSTRUCTIONS. SAVE THESE INSTRUCTIONS.

property damage or personal injury These instructions should be followed to avoid the possibility of

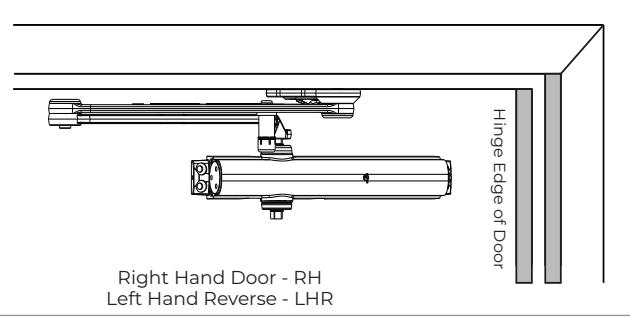

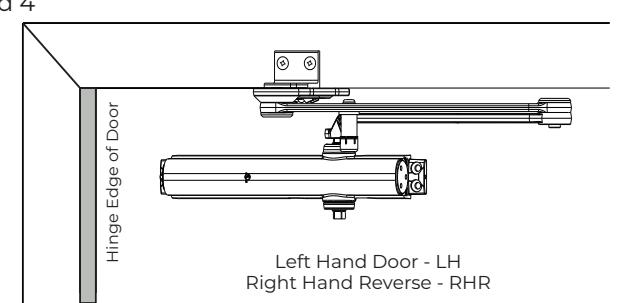

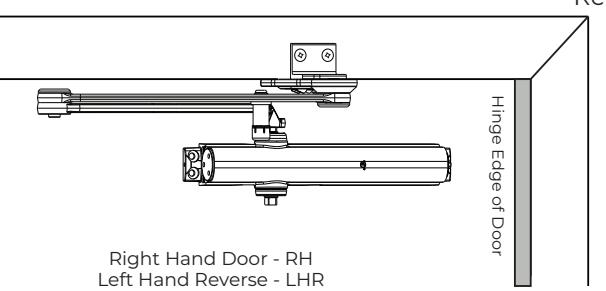

Closer mounts on opposite to hinge (push) side of door. Refer to pages 3 and 4

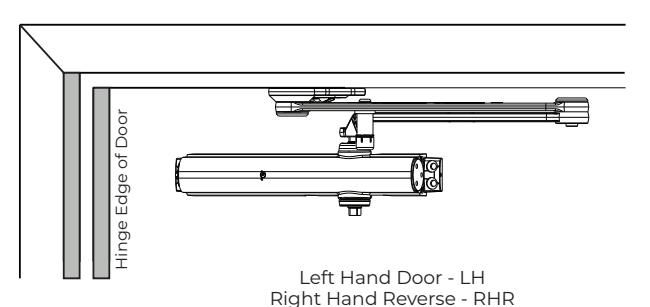

Narrow Frame Installation

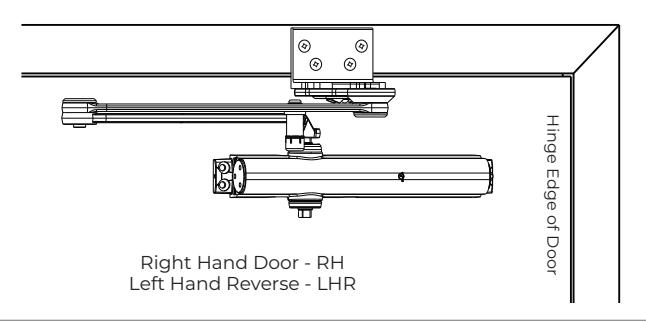

Closer mounts on opposite to hinge (push) side of door. 6890 and 6891 accessories required for this application (supplied separately).

Refer to pages 3 and 4

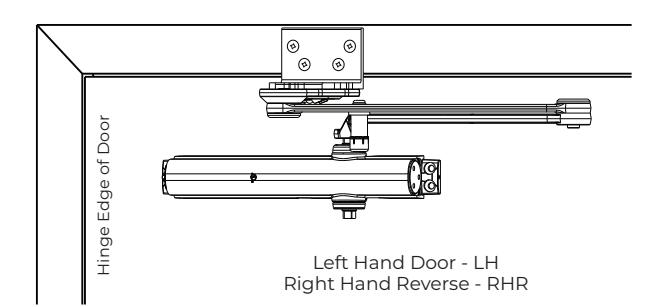

Flush Partition Installation

Closer mounts on opposite to hinge (push) side of door. 2019L accessory required for this application (supplied separately).

Refer to pages 3 and 4

Additional Closer Options:

• "DA" = Delayed Action closing
• "R" = Ramp Hold-Open function, not handed

Optional Accessories:

• 8148 Drop Plate
• 2019L, 6890, 6891 Soffit Plate Accessories

Optional Components Accessories 2019S Block (provided) Power Soffit Adjustment Backcheck Plate Shaft For Blade Stop 6891 Spacer Closer Delay Valve Arm Main Arm (Optional) For Frame or Screw Blade Stop 6890 Bracket Main Arm Closer Body For Flush Partion 2019L Bracket Latch Valve Sweep Valve Screw Pack Secondary Arm

Preparation for Fasteners
Fa	steners	Door or Frame	Drill-Sizes
Standard	Self-Drilling	Aluminum or Metal	No drill required
	Screw	Wood (see Note)	3/16" (4.30mm) (pilot hole required)
	1/4"-20 Machine Screw	Metal	Drill: #7 (0.201" dia) Tap: 1/4"-20
Optional	Sleeve nuts	Hollow Metal	9/32" (7mm) through; 3/8" (9.5mm) door face opposite of closer
	and bolts	Aluminum or Wood	3/8" (9.5mm) through
	Through-bolts and grommet-nuts	All	9/32" (7mm); 3/8" (9.5mm) dia. x 3.8" (9.5mm) deep on door face opposite of closer

NOTE: Pilot hole required when using self-drilling screws for wood door/frame applications.

80-9380-2216-020 Rev 3 06/23

Installation Sequence

• Select angle of opening and use dimensions shown on page 4 and Dimension Chart below to locate 4 holes on stop side of door for closer body (or 8148 drop plate, if required, see page 5) and 5 holes on stop and/or rabbet for Soffit Plate. For applications not covered in these instructions, a separate template will be required.
• Prepare door and frame for fasteners. See "Preparation for Fasteners" on page 2.
• Set approximate closer power for door size using Power Adjustment Chart below. Use 1/8" hex wrench supplied to adjust Power Adjustment Shaft (set at 8 turns from factory) ... 20 turns maximum. Turn nut CLOCKWISE to Increase, COUNTER-CLOCKWISE to Decrease power. See page 6 for the illustration of this step.
• Mount 8148 Dropplate if required (see page 5).
• Install closer with power adjustment shaft toward hinge edge of door.

NOTE: If using full metal cover, cover mounting clips must be slipped under ends of closer when closer is being mounted. Clips should project 1/4" (6mm) beyond each end of closer.

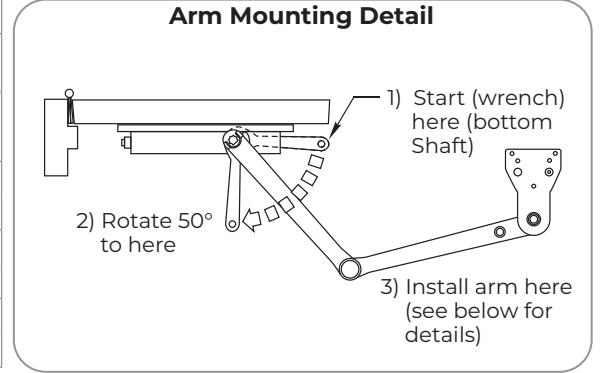

• With door closed, close valves 'S' and 'L'. Using a wrench, turn pinion shaft 50° or more to permit proper alignment of arm mark with pinion flat -
  • 'L' for Left hand door
  • 'R' for Right hand door

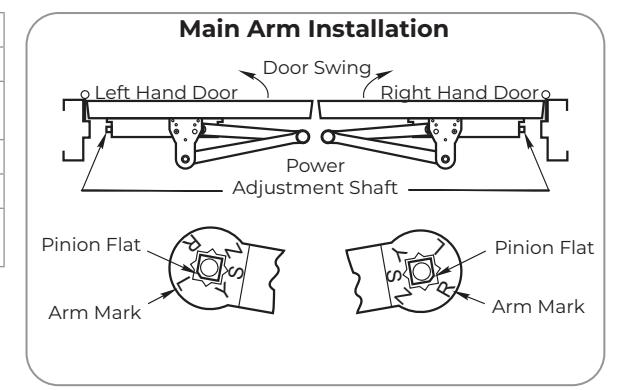

See Arm Mounting Detail and Main Arm Installation at right below.

CAUTION : Closer arm is under spring tension and may be difficult to rotate.)

• Reopen valves 'S' and 'L' by turning counter clockwise.

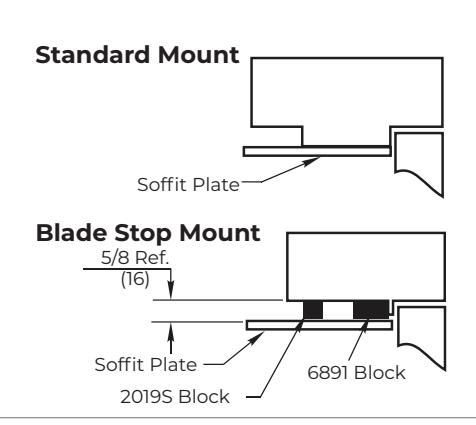

• With door closed, align soffit plate with mounting holes in frame. Fasten soffit plate to frame with flat head screws provided.... use spacer blocks 2019S or 6891, if required. CAUTION : Closer arm is under spring tension and may be difficult to rotate.)
• Make closer adjustments (see page 6) before installing cover

NOTE: DO NOT back valves out of closer or a leak will result.

Install cover (see page 6).

Installation Dimensions Chart
		Dim		85°- 90°	90°- 95°	95°- 100°	100°- 105°	105°- 110°	110°- 115°	115°- 120°	120°- 180°
CLP8100R CLP8300R CLP8500R	Butt Hinges or Offset Pivots	A	in.	5-1/2	4-3/4	4	3-3/8	2-3/4	2-1/8
			(mm)	(140)	(121)	(102)	(86)	(70)	(54)
		В	in.	11	10-1/4	9-1/2	8-7/8	8-1/4	7-5/8
			(mm)	(279)	(260)	(241)	(225)	(210)	(194)
	Center Pivots	A	in.	5-3/8	4-5/8	3-7/8	3-1/4	2-5/8	2
			(mm)	(137)	(117)	(98)	(83)	(67)	(51)
		В	in.	10-7/8	10-1/8	9-3/8	8-3/4	8-1/8	7-1/2
			(mm)	(276)	(257	(238)	(222)	(206)	(191)

Power Adjustment Chart
	Full Clockwise Turns of Closer Power Adjustment Shaft
	Door	28"-32" 71-81cm	33"-36" 84-91cm	37"-42" 94-107cm	43"-48" 109-122cm
CL D0701D/CL D0F01D	Interior	9	11	13	15
CLP8301R/CLP8501R	External	10	12	14	16

NOTE: Maximum of twenty (20) turns (360°) of Power Adjustment Shaft. Closer is shipped set at mid power setting.

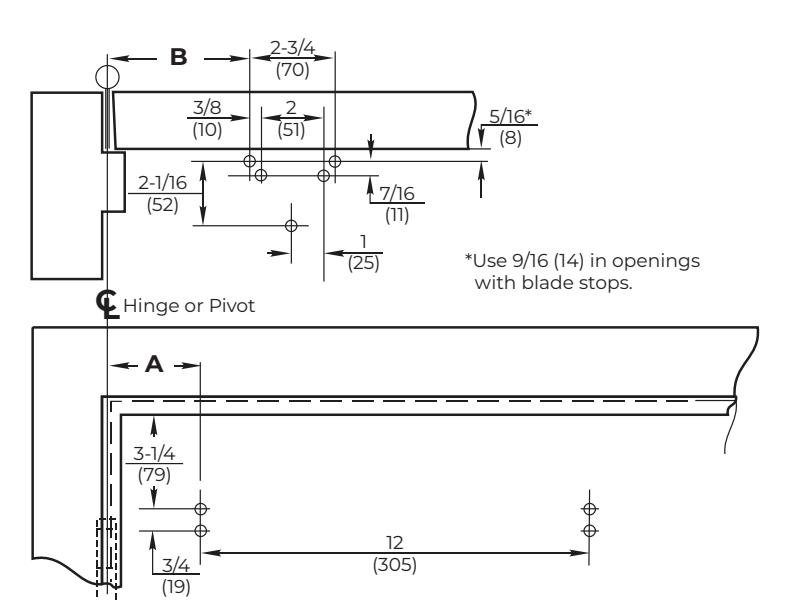

Standard Frame

NOTES:

• ‒ Do Not Scale Drawing.
• ‒ Left Hand Door Shown.
• ‒ Same dimensions apply for Right Hand
• ‒ Door measured from centerline of pivot point.
• ‒ Dimensions are in inches (mm).
• ‒ See page 3 for A & B dimension values.

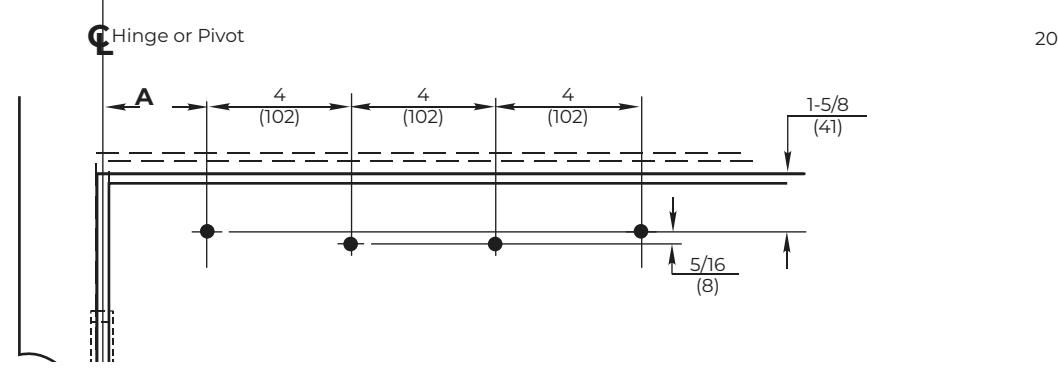

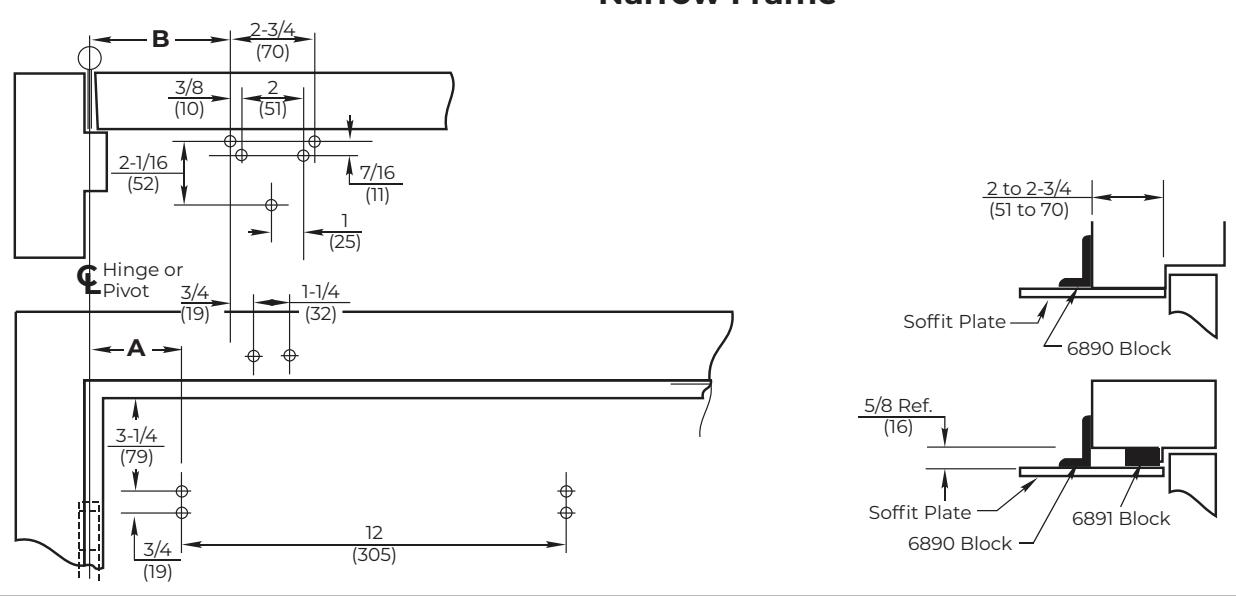

Narrow Frame

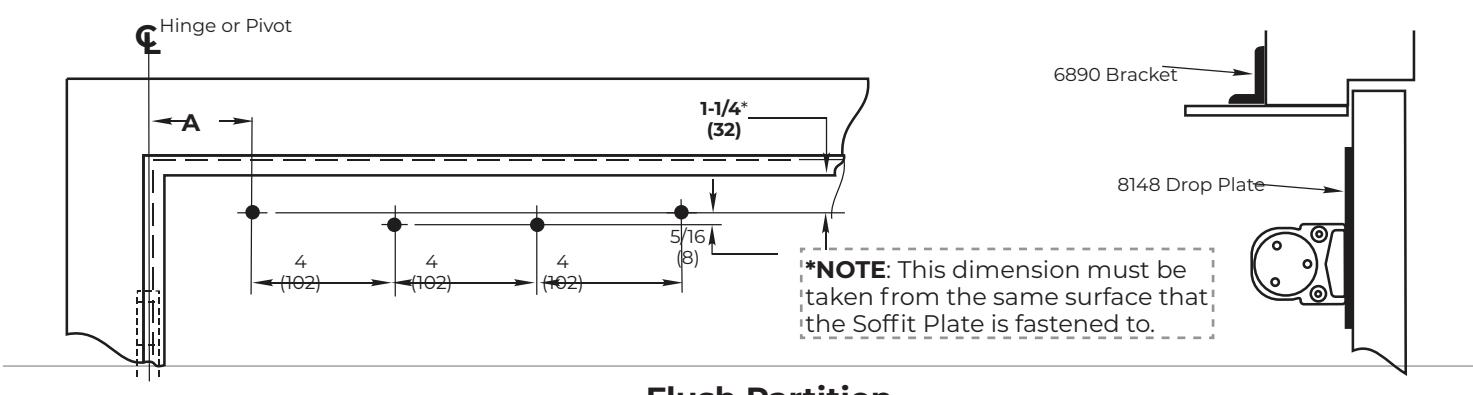

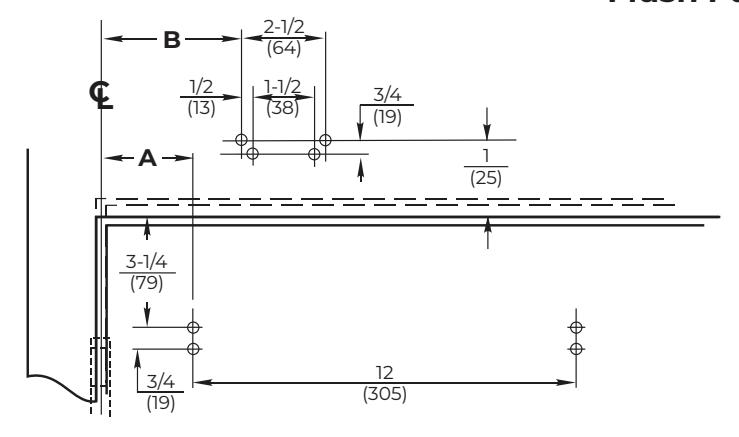

Flush Partition

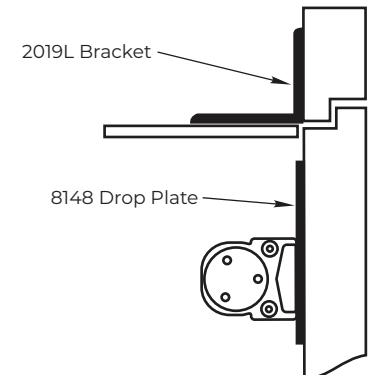

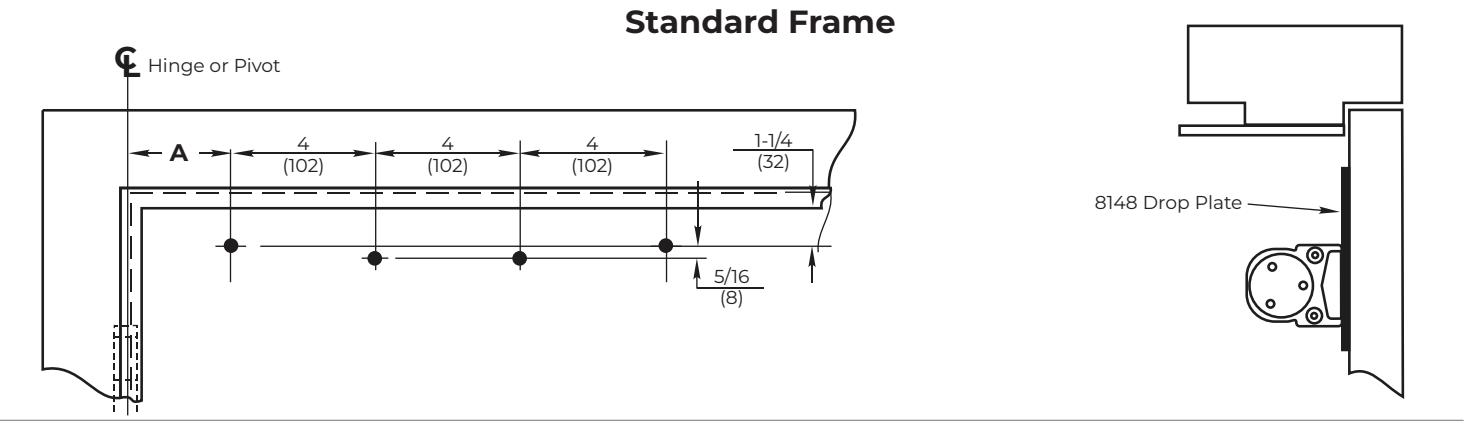

8148 Drop Plate Mounting Holes

Narrow Frame

Flush Partition

Hold-Open Feature

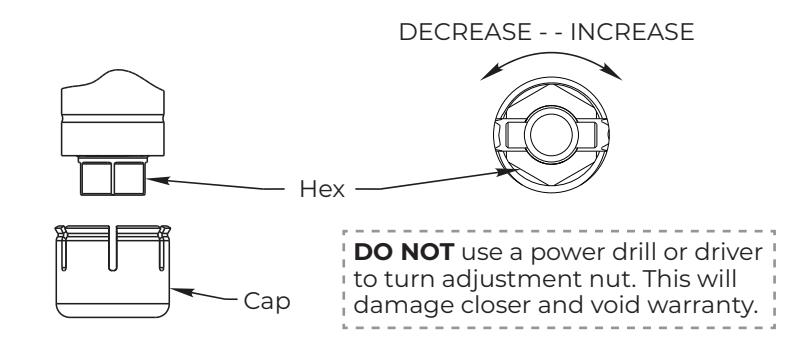

The hold-open mechanism is controlled by the hex nut feature located on the secondary arm underneath cap. Remove the cap by pulling straight down. Use a 7/16" wrench to adjust. Turning hex nut feature clockwise will increase the hold-open force. Turning hex nut feature counterclockwise will reduce the hold-open force. Hold-open mechanism can not be disengaged.

The ASSA ABLOY Group is the global leader in access solutions. Every day we help people feel safe, secure and experience a more open world.

ASSA ABLOY

Adjustments

Closing Power Adjustment (8X01 closers only) -

Using "Power Adjustment Chart" from page 3. select the correct number of turns for power adjustment shaft that corresponds with the installation. With 1/8" hex-key provided, rotate adjustment shaft full 360° clockwise turns to desired setting. After closer has been installed and proper adjustments made to the sweep and latch, it may be necessary to readjust spring power for good closing action.

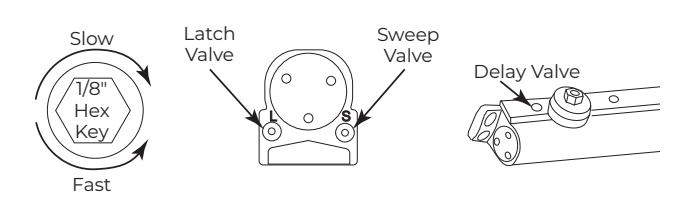

Control Valve Adjustments (See Figure 2)

Closing Speed Controls (Figure 1A or 1B and 2)

• Valve "S" Controls Sweep RangeValve "L" Controls Latch Range
• Valve "D" Controls Delay Range (optional)

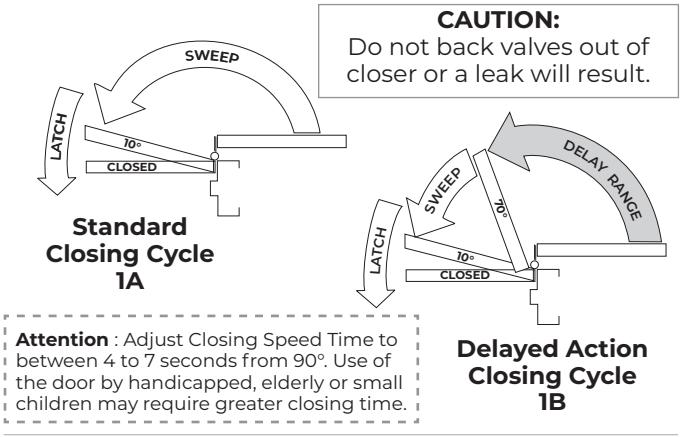

Figure 1 - Closing Speed Controls

Figure 2 - Closing Speed Controls

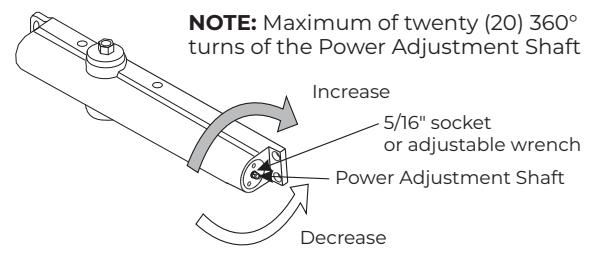

Figure 3 - Closing Power Controls

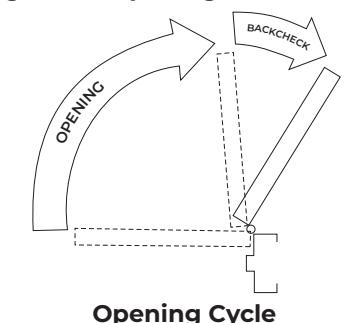

Opening Cycle

"Backcheck" valve controls the strength of cushioning in Backcheck Range. NEVER close this valve completely – it is not to provide a positive stop. (Figure 4 and Figure 5)

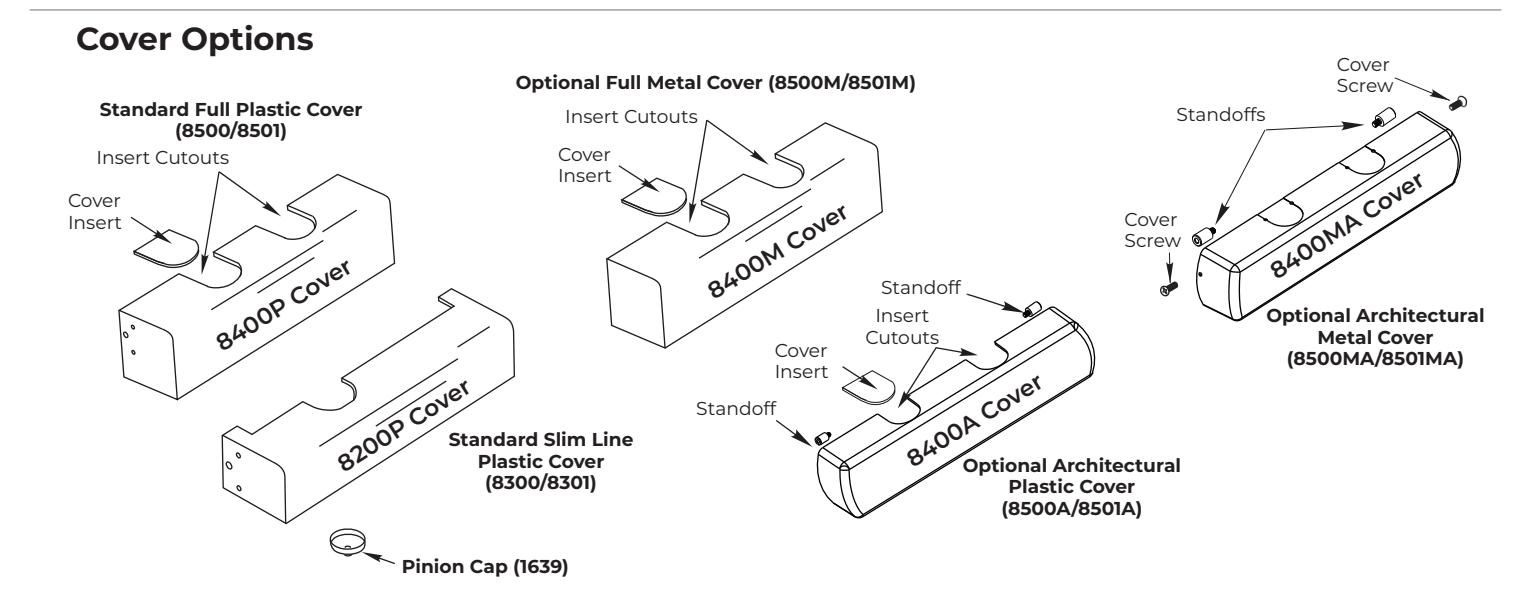

Cover (See Figure 6)

Full cover: Slide cover insert into the un-used cutout in cover. Install cover using screws provided.

Narrow cover: Install cover using screws provided. Install pinion cap onto pinion shaft by hand or with a Phillips screw driver -DO NOT OVER TIGHTEN.

Metal cover: Fasten cover to mounting clips with screws provided.

<u>Architectural Metal Cover</u>: Remove cover insert where pinion is located. Install standoffs in ends of closer. Install cover using screws provided.

Architectural Plastic Cover: Slide cover insert into the un-used cutout in cover. Install standoffs in ends of closer. Snap cover over standoffs.

Figure 4 - Opening Door Control

CAUTION:

Do not back valves out of closer or a leak will result.

NEVER CLOSE VALVES COMPLETELY.

Not intended to provide a positive stop.

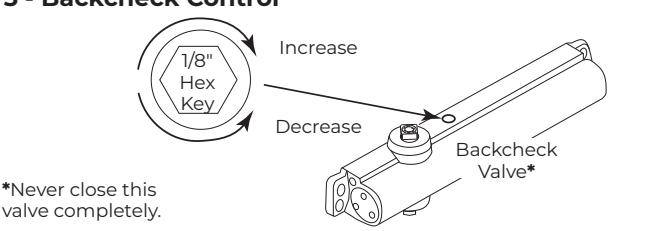

Figure 5 - Backcheck Control

Figure 6 - Cover Mounting
