Norton Rixson 8000 Series Door Closer, 8000H, 8100H, 8300H, 8500H, Regular Arm, with 8146 Back Plate for Conceal…_7380-0109
Open the original PDF document
View PDF

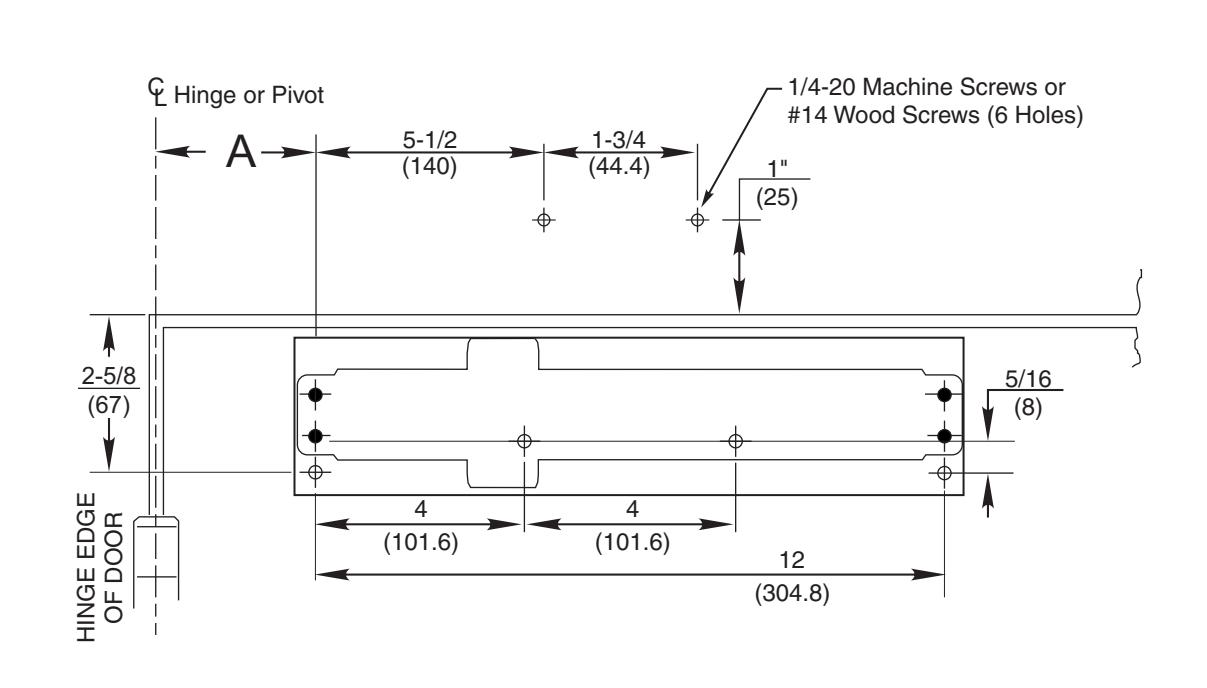

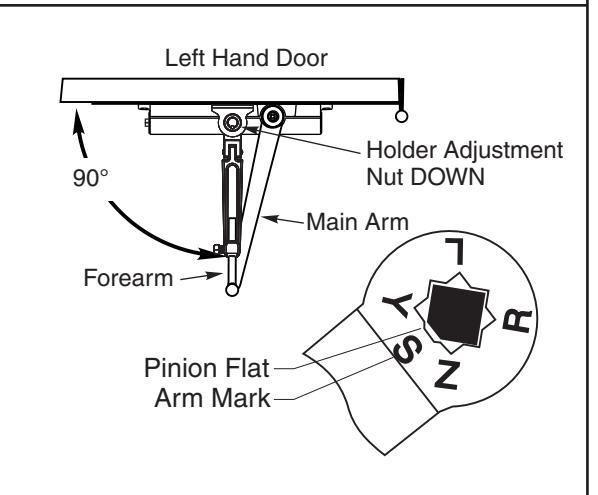

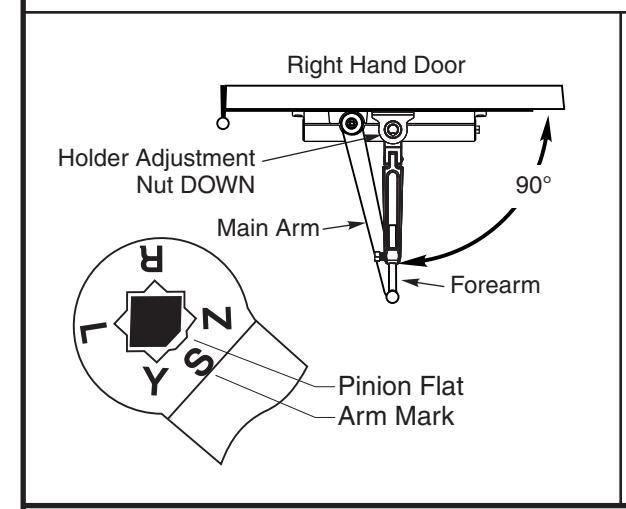

Position of Arm and Pinion Flat

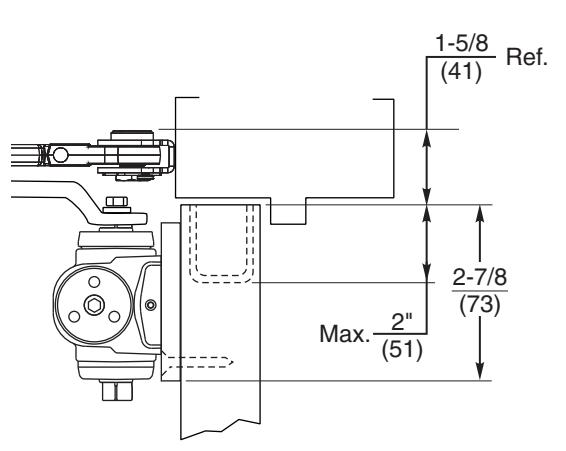

Note: Typical overhead stop channel.
| Opening | Dimension "A" |
| To 100° |
7-1/2
(191) |
| 101° to 130° |
6
(152) |
| 131° to *180° |
4-1/2
(114) |
*Door/Wall/Hardware/Jamb conditions permitting
Notes:
- 1. Do not scale drawing.
- 2. Right hand door shown.
- 3. Dimensions given in inches (millimeters).
- Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
- 5. Sex bolts required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
8000H Series Door Closer Hold Open Application With 8146 Back Plate for Concealed Stop Clearance 8100H, 8300H, and 8500H
NORTON RIXSON ASSA ABLOY
TEMPLATE NUMBER
REV DATE 3 01/22
7380-0109
