Norton Rixson 8000 Series Door Closer, 8000H, 8100H, 8300H, 8500H, Regular Arm, with 8146 Back Plate (For 1-3, 4 …_7380-0108

Open the original PDF document

View PDF

\frac{2-9/16}{(65)} Ref.

Opening

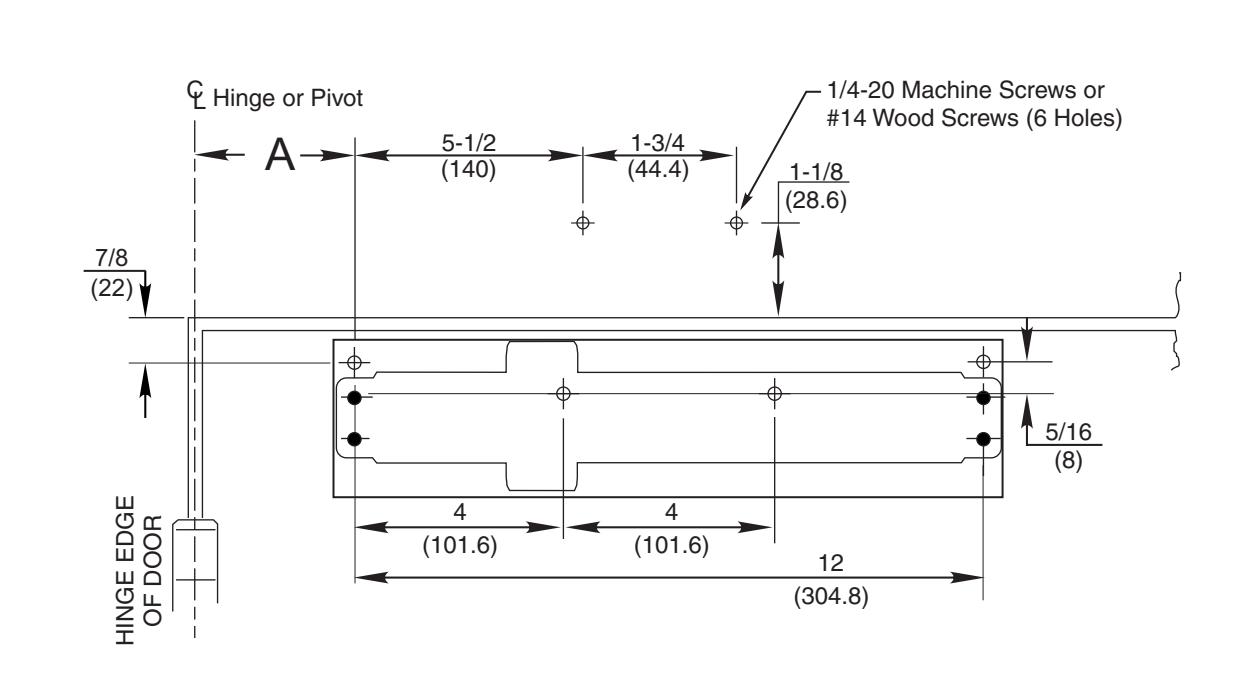

Opening Dimension "A"
To 100° 7 -1/2
(191)
101° to 130° 6
(152)
131° to *180° 4-1/2
(114)

*Door/Wall/Hardware/Jamb conditions permitting

Notes:

  • 1. Do not scale drawing.
  • 2. Right hand door shown.
  • 3. Dimensions given in inches (millimeters).
  • Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
  • 5. Sex bolts required for wood or plastic faced fire door mounting.
  • Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.

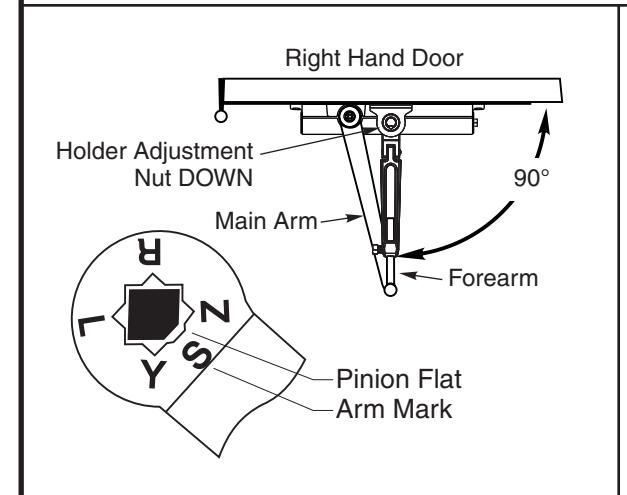

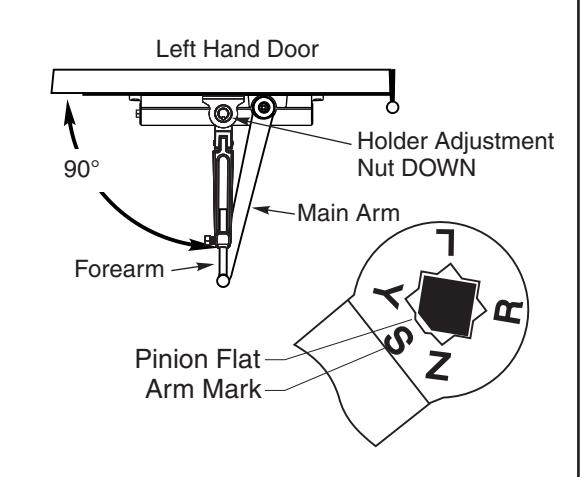

Position of Arm and Pinion Flat

8000H Series Door Closer Regular Hold Open Application With 8146 Back Plate for 1-3/4 Top Rail 8100H, 8300H, and 8500H

NORTON RIXSON ASSA ABLOY

TEMPLATE NUMBER

REV [

7380-0108 3

_

Approved 2022-02-26

01/22
